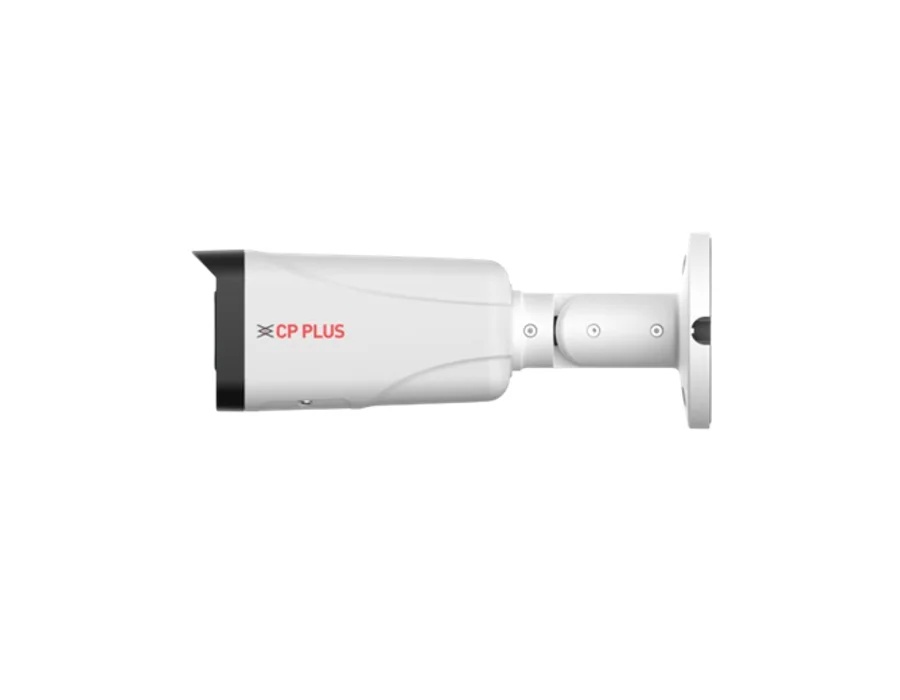

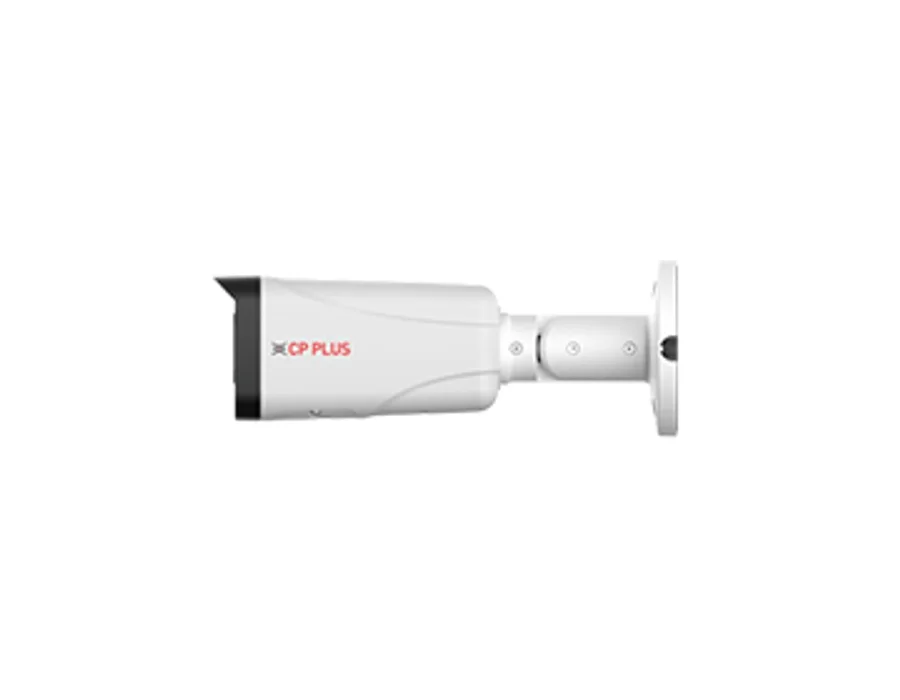

CP Plus CP-UNC-TC41L5C-VMD-LQ – 4MP Dual Light Bullet Camera - 50Mtr.

4MP Dual Light Bullet Camera - 50Mtr. Features 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 × 1520)@1–25/30fps/ (2560×1440)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens (6mm Optional) Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Specifications Image Sensor: 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 2688 (H) × 1520 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: 3.6mm: 58.89 m (Detect), 23.60 m (Observe), 11.79 m (Recognize), 5.90 m (Identify) ; 6mm: 85.5 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 3.6mm: 1.3 m; 6mm: 2.6 m Lens: 3.6mm (6mm Optional) Lens Mount: M12 S/N Ratio: >58 dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: 3.6 mm: H: 84°; V: 44°; D: 105° ; 6 mm: H: 54°; V: 29°; D: 63° Smart IR: Support IR Control: Auto, Manual IR Number: 2 IR LED, 2 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart Illumination: Support Day/Night: Auto(ICR)/Color/B/W Audio: Built-in Mic Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Iris Control: Fixed, DC Iris (optional) Stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 x 1520/ 2560 x 1440)@1–25/30fps, 3MP (2304 x 1296)@1–25/30fps, ; 2MP (1920 × 1080)@1–25/30fps, 1.3MP (1280 × 960)@1–25/30fps, 720p (1280 × 720)@1 ; 25/30fps ; Sub stream 1: 720p (1280 × 720)@1–25/30fps, D1 (704 × 576 / 704 × 480)@1–25/30fps, VGA ; (640 × 480)@1–25/30fps, CIF (352 × 288/ 352 × 240)@1–25/30fps ; Sub Stream 2: D1 (704 × 576/ 704 × 480)@1–25/30fps, VGA (640 × 480)@1–25/30fps, CIF (352 ; × 288/ 352 × 240)@1–25/30fps ; Sub Stream 3: D1 (704 × 576/ 704 × 480)@1fps Mirror Function: Support Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Resolution: 4MP (2688 x 1520)/(2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × ; 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × ; 240) Video Format: PAL/NTSC Privacy Mask: 4 areas IVS (Perimeter Protection): Tripwire, Intrusion, IMD (Intelligent motion detection) ROI: Support (4 areas) Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, ; PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), ; unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/ VBR Storage: SFTP, Mirco SD card (Max. 512GB) Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and ; merging to event videos Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage ; detection, IMD (Intelligent motion detection), Security exception, External alarm Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 36 M) Hardware Reset Point: Support Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2 W (12 VDC); 2.6 W (PoE) ; Max. (H.265+ intelligence on + WDR + illuminator on): 6.1 W (12 VDC), 7.2 W (PoE) Weatherproof Standard: IP67 & IK10 (optional) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% Casing: Metal Dimensions: 238.5 mm × 90.7 mm × 90.7 mm Weight: 720g
