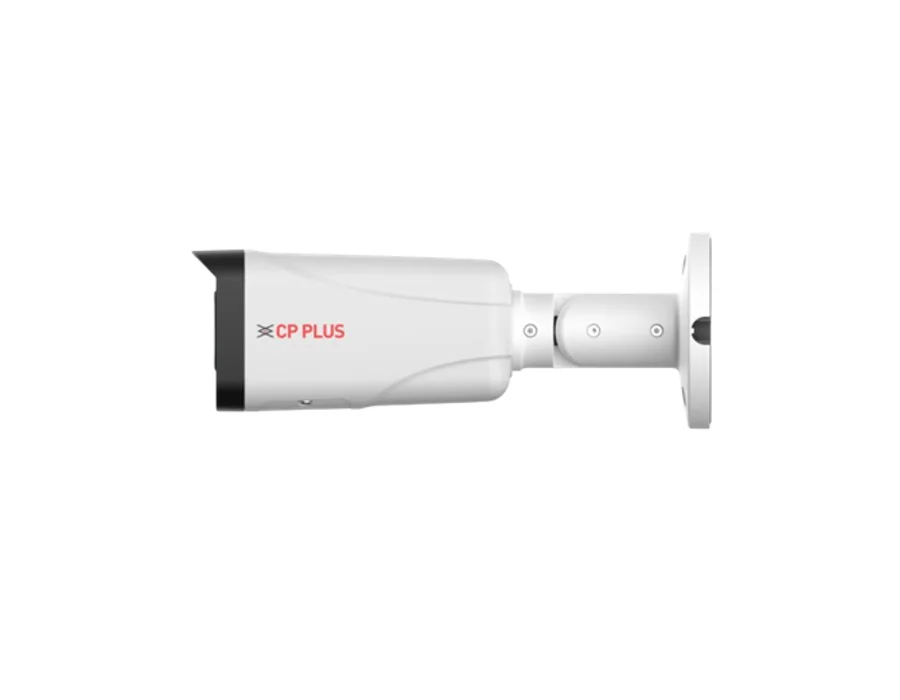

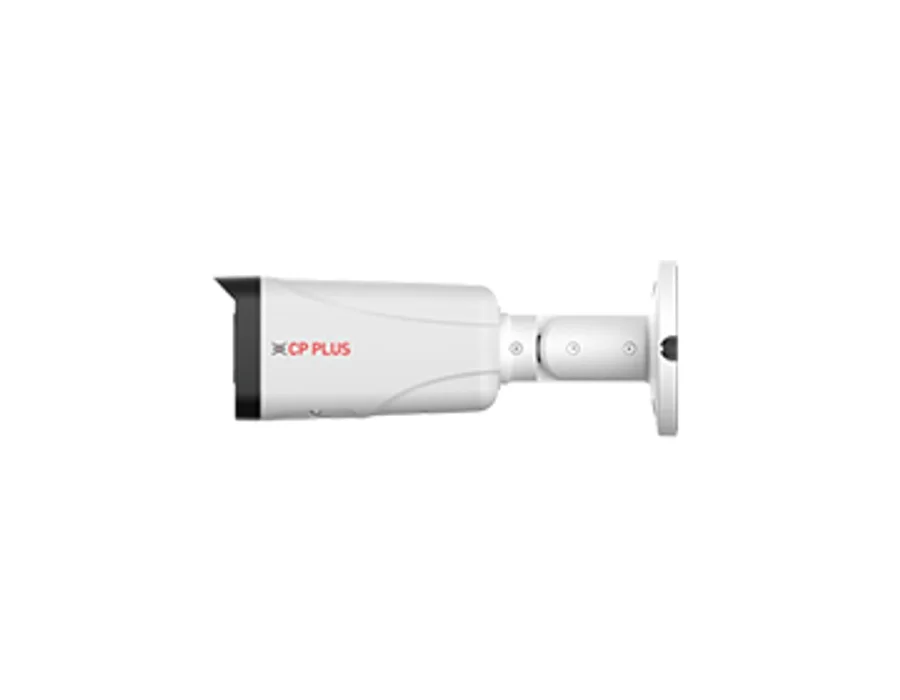

CP Plus CP-UNC-TC41ZL6C-VMD-LQ – 4MP Dual Light Bullet Camera - 60Mtr.

4MP Dual Light Bullet Camera - 60Mtr. Features 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 × 1520)@1–25/30fps/ (2560×1440)@1-25/30fps) Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking Support Built-in Mic IR Range of 60 Mtr., Warm Light Range of 60 Mtr. 2.7mm~13.5mm Motorized Lens Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Specifications Image Sensor: 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 2688 (H) × 1520 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: Lens W: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) Lens T: 210.0 m (Detect), 84.0 m (Observe), 42.0 m (Recognize), 21.0 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Motorized vari-focal Max. Aperture: F1.4 Close Focus Distance: 0.8 m Lens: 2.7mm~13.5mm Lens Mount: M14 S/N Ratio: >58 dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Smart IR: Support Angle of View: H: 97°–28°, V: 52°–16°, D: 117°–32° IR Number: 4 (Multi-core (IR + warm) light) IR: IR Range of 60 Mtr. Warm Light: Warm Light Range of 60 Mtr. Day/Night: Auto(ICR)/Color/B/W IR Control: Auto, Manual Iris Control: Fixed, DC Iris (optional) Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 × 1520)@1–25/30fps, (2560 × 1440)@1-25/30fps, 3MP (2304 × ; 1296)@1-25/30fps,1080P (1920 × 1080)@1-25/30fps,1.3MP (1280 × 960)@1-25/30fps, ; 720P (1280 × 720)@1-25/30fps ; Sub stream 1: 720P (1280 x 720)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 x 288/ ; 352 x 240)@1-25/30fps, D1 (704 × 576/ 704 × 480)@1-25/30fps ; Sub stream 2: VGA (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)@1-25/30fps, D1 ; (704 × 576/ 704 × 480)@1-25/30fps ; Sub stream 3: D1 (704 × 576/ 704 × 480)@1fps Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Resolution: 4MP (2688 × 1520), (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 1.3MP (1280 ; × 960), 720P (1280 x 720), D1 (704 × 576/ 704 × 480), VGA (640 x 480), CIF (352 x 288/ ; 352 x 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Video Format: PAL/NTSC Privacy Mask: 4 areas IVS (Perimeter Protection): Tripwire, Intrusion, SMD ROI: Support (4 areas) OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/ VBR Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, ; PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), ; unicast, multicast SDK and API: Support Smart Illumination: Support Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, ; SMD, Security exception, External alarm Mirror Function: Support Audio: Built-in Mic Scene change detection: Support Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Ethernet: RJ-45 (10/100 Base-T) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 36 M) Storage: SFTP, Mirco SD card (Max. 512GB) Hardware Reset Point: Support Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.6 W (12 VDC), 3.1 W (PoE); ; Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) Weatherproof Standard: IP67, IK10 (optional) Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimension: 238.5 mm × 90.7 mm × 90.7 mm Weight: 760g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
