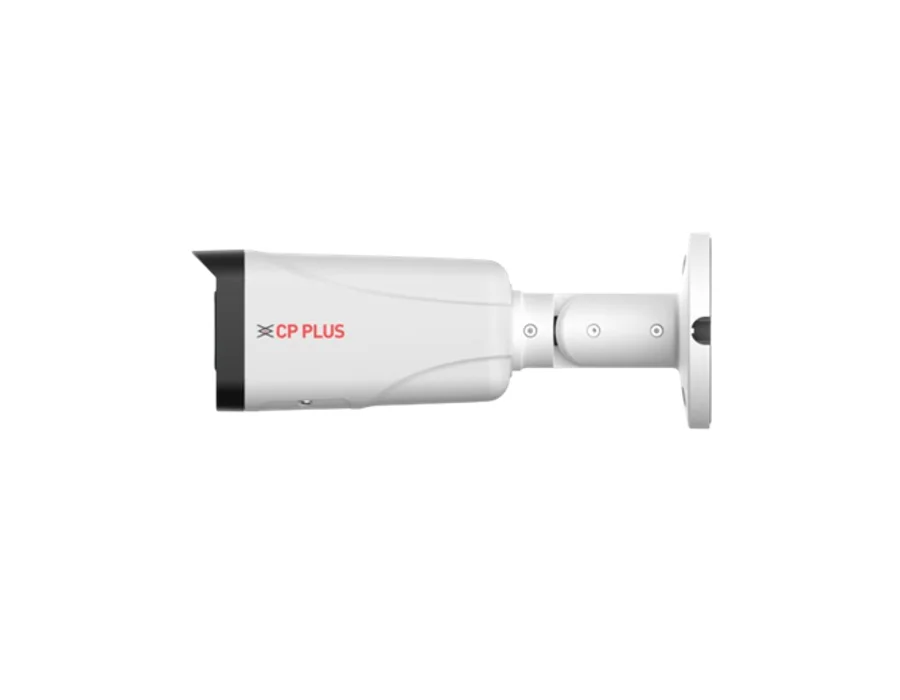

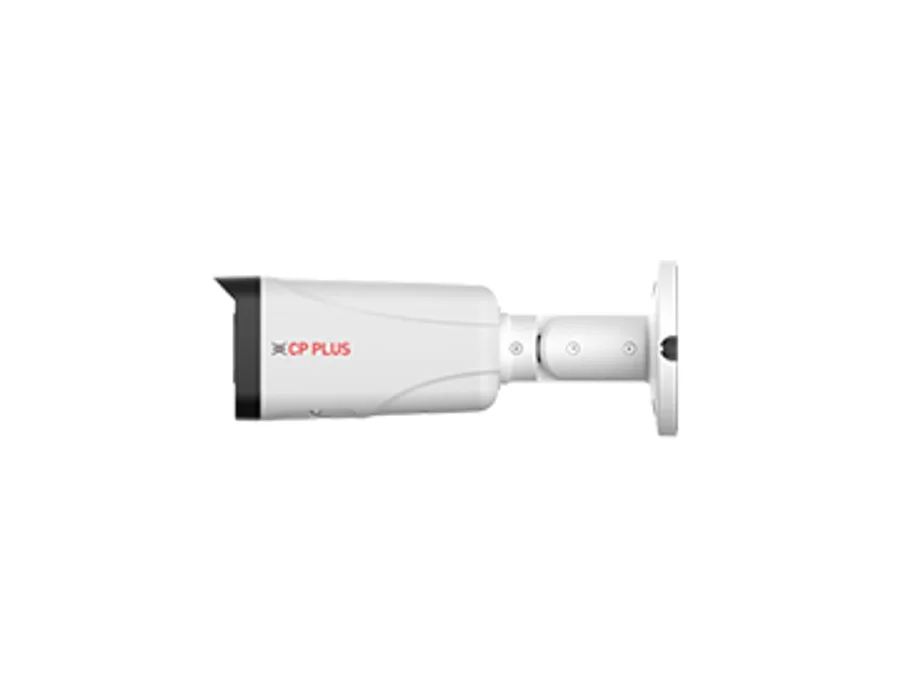

CP Plus CP-UNC-TC61L5C-VMD-LQ – 6MP Dual Light Bullet Camera - 50Mtr.

6MP Dual Light Bullet Camera - 50Mtr. Features 1/2.7” 6MP PS CMOS Image Sensor (0.9407 centimeters) Max. 6MP (3288 × 1850)@1–20 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Specifications Image Sensor: 1/2.7” 6MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3288 (H) × 1850 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 1.7 m Lens: 3.6mm Lens Lens Mount: M12 S/N Ratio: >58 dB IR Number: 2 IR LED, 2 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart IR: Support Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: H: 91°, V: 46°, D: 110° Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) IR Control: Auto, Manual Audio: Built-in Mic OTA (Over-The-Air): Support Stream Capability: Quad Stream Frame Rate: Main stream: 6MP (3288 × 1850)@1–20 fps/ 4MP (2688 × 1520)@1–25/30 fps, Sub Stream 1: D1@25fps Sub Stream 2: D1@25fps Sub Stream 3:D1@1fps IVS (Optional): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Resolution: 6MP (3288 × 1850), 5MP (2880 × 1620), 4MP (2688 × 1520), 3MP (2048 × 1536/ 2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Bit Rate Control: CBR/ VBR Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/ IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Day/Night: Auto(ICR)/Color/B/W Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, IMD (Intelligent motion detection), Security exception, External alarm Iris Control: Fixed Mirror Function: Support IMD (Intelligent motion detection): Support Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) User/Host: 20 (Total bandwidth: 48 M) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Browser: IE: IE11, Chrome, Firefox Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC, PoE Power Consumption: Basic: 2.2 W (12 VDC), 2.9 W (PoE);; Max.: 6.4 W (12 VDC), 8 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) Weatherproof Standard: IP67, IK10 (optional) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimensions: 238.5 mm × 90.7 mm × 90.7 mm Weight: 720g
