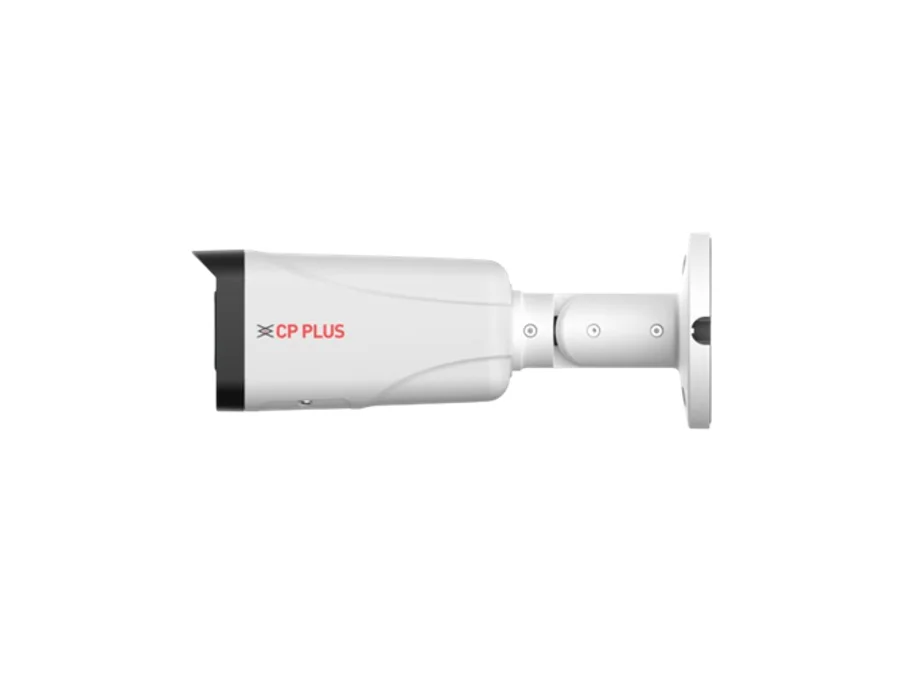

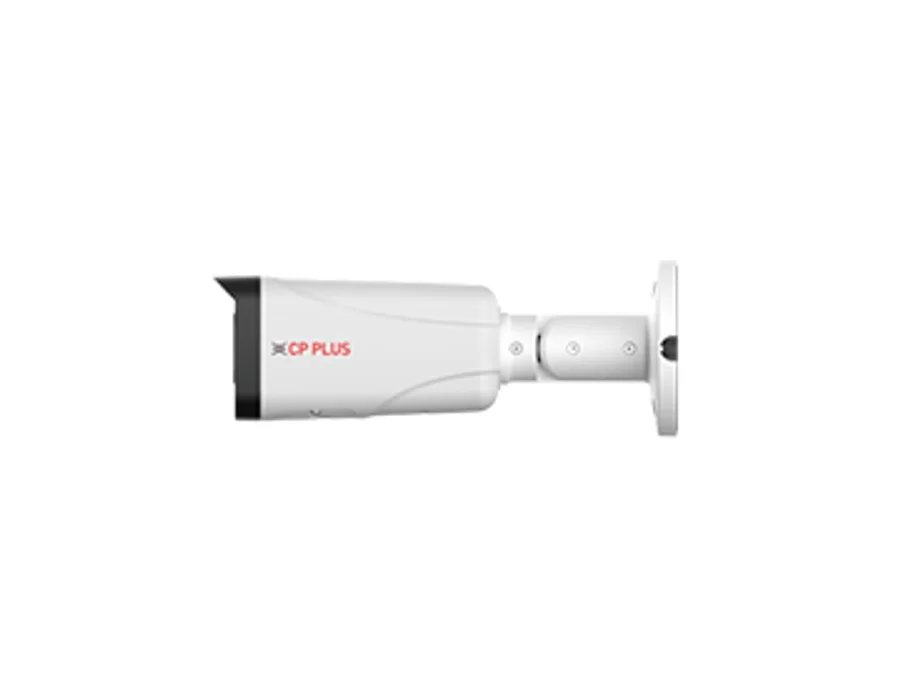

CP Plus CP-UNC-TC81L5C-VMD-LQ – 8MP Dual Light Bullet Camera - 50Mtr.

8MP Dual Light Bullet Camera - 50Mtr. Features 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264,H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens (6mm Optional) Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3840 (H) × 2160 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: 3.6mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) ; 6mm: 154.7 m (Detect), 61.9 m (Observe), 30.9 m (Recognize), 15.5 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 3.6mm: 1.9 m; 6mm: 3.5 m Smart IR: Support IR Number: 2 IR LED, 2 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. IR Control: Auto, Manual Iris Control: Fixed Lens: 3.6mm (6mm Optional) Lens Mount: M12 S/N Ratio: >56dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: 3.6mm: H: 87°; V: 49°; D: 100° ; 6mm: H: 55°; V: 31°; D: 62° Day/Night: Auto(ICR)/Color/B/W OTA (Over-The-Air): Support Stream Capability: Quad Stream Frame Rate: Main stream : 8MP (3840 × 2160)@1-20fps, 6MP (3072 × 2048)@1-20fps, 5MP (3072 × ; 1728)@1-20fps, 4MP (2880 × 1620/ 2688 × 1520)@1-20fps/(2688 × 1520)@1-25/30fps, ; 3MP (2048 × 1536/ 2304 × 1296)@1-25/30fps, 2MP (1920 × 1080)@1-25/30fps, 1.3MP ; (1280 × 960)@1-25/30fps, 720p (1280 × 720)@1-25/30fps ; Sub Stream 1: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF (352 × ; 288/ 352 × 240)@1-25/30fps ; Sub stream 2: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480),@1-25/30fps, CIF (352 × ; 288/ 352 × 240)@1-25/30fps ; Sub stream 3: D1 (704 × 576/ 704 × 480)@1fps, VGA (640 × 480)@1fps, CIF (352 × 288/ 352 ; × 240)@1fps ; *The sub streams max. frame rates depends on main stream frame rates Audio: Built-in Mic Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) IVS (Perimeter Protection): Intrusion, Tripwire (the two functions support the classification and accurate detection of ; vehicle and human) Video Format: PAL/NTSC Smart search: Work together with AI NVR to perform refine AI search, event extraction and merging to event ; videos Resolution: 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4.5MP (2880 × 1620), 4MP (2688 ; × 1520), 3MP (2048 × 1536), (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p ; (1280 × 720), D1 (704 × 576/704 ×480), VGA (640 ×480), CIF (352 × 288/352 × 240) Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 areas ROI: Support (4 areas) Mirror Function: Support OSD: Privacy Masking, Channel Title, Time Title, Location, Font Properties, Custom Title Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Bit Rate Control: CBR/ VBR SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) IMD (Intelligent motion detection): Support Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TCP/IP, PPPoE, NFS, UPNP, ; UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast, ; TLS 1.2,1.3, InstaOn Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, ; IMD (Intelligent motion detection), Security exception, External alarm Browser: IE, Chrome, Firefox, Microsoft Edge Storage: SFTP, NAS, Mirco SD card (Max. 512GB) User/ Host: 6 (Total bandwidth: 48 M) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.6 W (12 VDC), 3.4 W (PoE) ; Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 7 W (12 ; VDC), 8.3 W (PoE) Weatherproof Standard: IP67, IK10 (optional) Operating Temperature: –40°C to +60°C Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40°C to +60°C Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimensions: 238.6 mm × 90.7 mm × 90.7 mm Weight: 700g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
