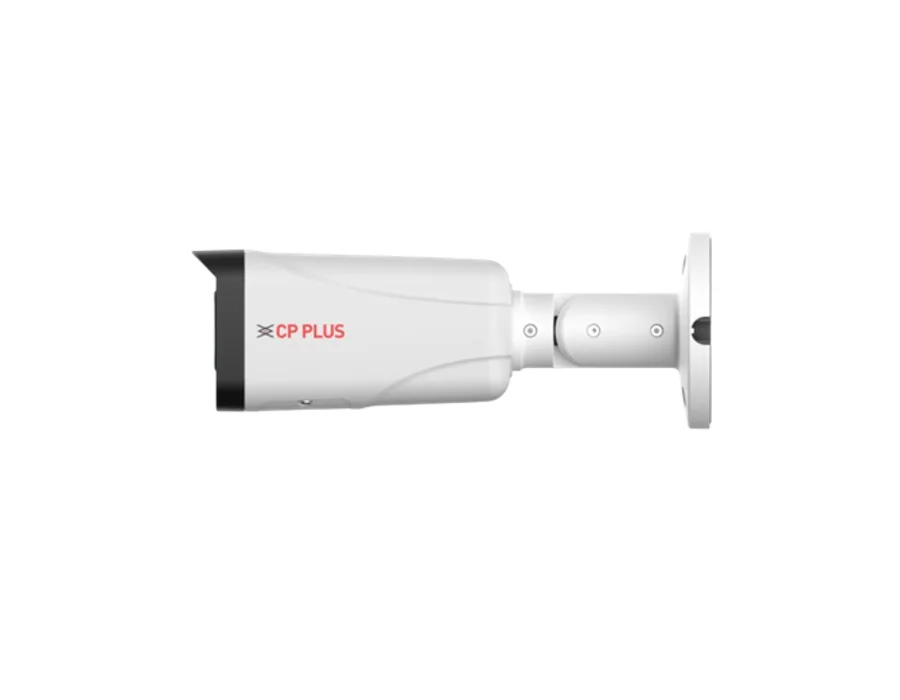

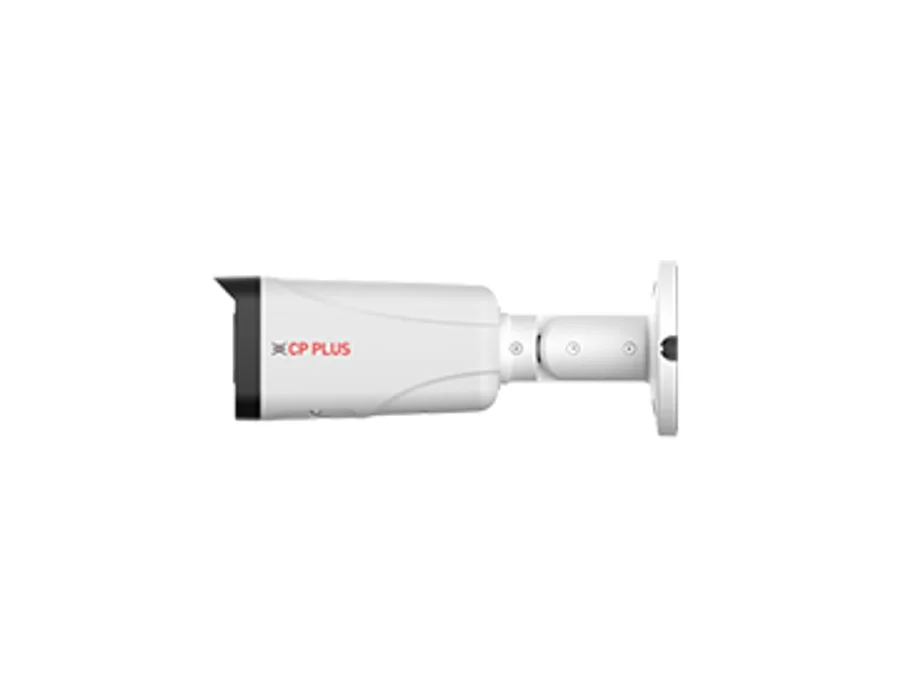

CP Plus CP-UNC-TC81ZL6C-VMD-LQ – 8MP Dual Light Bullet Camera - 60Mtr.

8MP Dual Light Bullet Camera - 60Mtr. Features 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@20fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 60 Mtr., Warm Light Range of 60 Mtr. 2.7 mm–13.5 mm Motorized Lens Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Specifications Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3840 (H) × 2160 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: Lens W: 85.3 m (Detect), 34.1 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Lens T: 280.0 m (Detect), 112.0 m (Observe), 56.0 m (Recognize), 28.0 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Motorized vari-focal Max. Aperture: F1.4 Lens Mount: φ14 Close Focus Distance: 0.8 m Lens: 2.7 mm–13.5 mm Back Light Compensation: BLC/ HLC/ WDR(120dB) Day/Night: Auto(ICR)/Color/B/W Smart IR: Support IR Number: 4 Multi-core (IR + warm light) IR: IR Range of 60 Mtr. Warm Light: Warm Light Range of 60 Mtr. S/N Ratio: >58 dB Angle of view: H: 114°–32°, V: 58°–17°, D: 138°–36° OTA (Over-The-Air): Support Smart search: Work together with AI NVR to perform refine AI search, event extraction and merging to event videos Noise Reduction: 2D NR, 3D NR Resolution: 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4MP (2560 x 1440), 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Stream Capability: Quad Stream Frame Rate: Main stream: 8MP (3840 × 2160)@20fps, 4MP (2560 × 1440)@25/30 fps Sub stream 1: D1@25fps, Sub stream 2: D1@25fps, Sub stream 3: D1@1fps Motion Detection: OFF/ON (4 areas, rectangular) Audio: Built-in Mic Iris Control: Fixed IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) OSD: Camera title, Date & Time, Channel Title, Time Title, Location, Font Properties, Custom Title Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Ethernet: RJ-45 (10/100 Base-T) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, Defocus detection, External alarm, IMD (Intelligent motion detection), Security exception Mirror Function: Support Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot IR Control: Auto, Manual IMD (Intelligent motion detection): Support Browser: IE, Chrome, Firefox Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Audio Input: 1 Channel (RCA port) Audio Out: 1 Channel (RCA port) Alarm IN: 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Out: 1 channel out: wet contact, 300 mA 12 VDC Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Bit Rate Control: CBR/ VBR User/ Host: 6 (Total bandwidth: 48 M) Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Weatherproof Standard: IP67, IK10 (optional) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) Operating Temperature: –30°C to +60°C Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –30°C to +60°C Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimensions: 238.5 mm × 75.0mm × 79.0 mm Weight: 740g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
