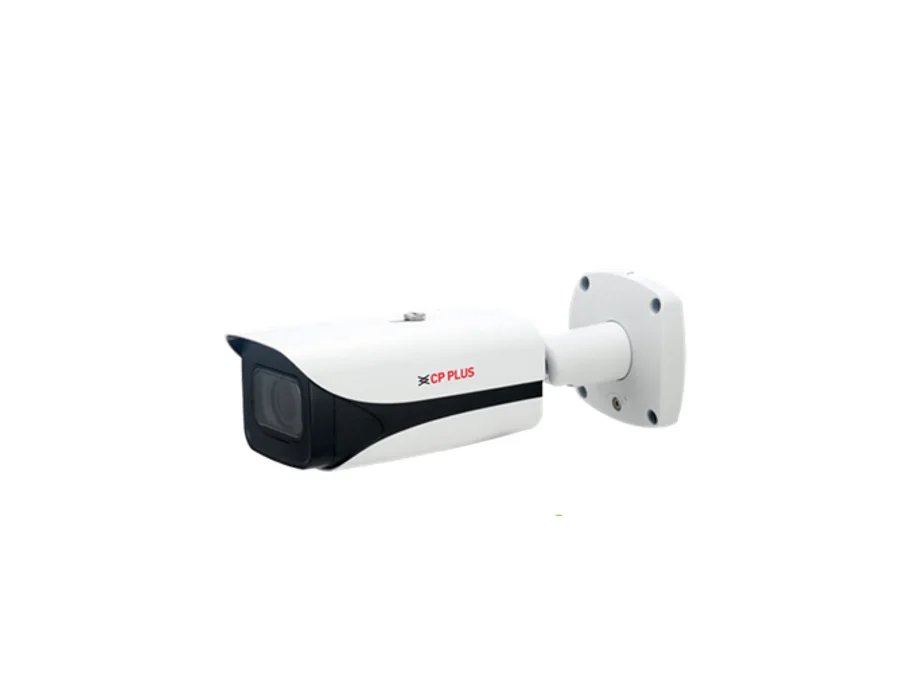

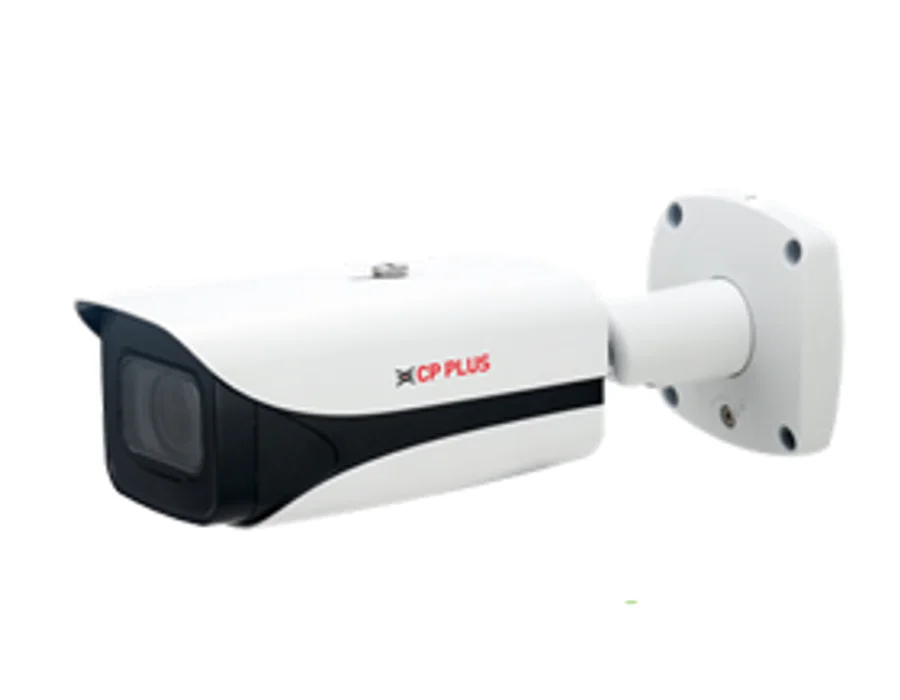

CP Plus CP-UNC-TE21ZL6C-VMDS-Q – 2MP Network IR Bullet Camera - 60Mtr.

2MP Network IR Bullet Camera - 60Mtr. Features 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) Max. 2MP (1920 × 1080)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night (ICR), 3D NR, ROI, Defog, AWB, AGC, BLC, HLC 2.7mm~13.5mm Motorized Lens IR Range of 60 Mtr. Support Starlight Technology Built-in Mic, Digital watermarking Micro SD Card, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) Minimum Illumination: 0.006 Lux@F1.6(Color,30IRE), 0.0006 Lux@F1.6(B/W,30IRE), 0 lux (IR on) Effective Pixels: 1920 (H) × 1080 (V) Electronic Shutter: Auto/Manual, 1/3s - 1/100000s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° RAM: 512 MB ROM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional Custom Lens: 2.7 mm~13.5 mm IR Control: Auto, Face Priority, Number Plate Priority Gain Control (AGC): Auto Lens Type: Motorized vari-focal Iris Control: Auto Max. Aperture: F1.6 Lens Mount: M14 Close Focus Distance: 0.8 m IR Number: 4 IR LED IR: IR Range of 60 Mtr. DORI Distance: Lens W: 44.1Mtr. (Detect), 17.7Mtr.(Observe), 8.8Mtr. (Recognize), 4.4Mtr(Identify) Lens T: 144.8Mtr(Detect), 57.9Mtr(Observe), 29.0Mtr(Recognize), 14.5Mtr(Identify) Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35° S/N Ratio: >56 dB Day/Night: Auto(ICR)/Color/B/W Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Resolution: 2MP (1920 × 1080), 1.3M (1280 × 960), 1MP (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Stream Capability: Triple stream Frame Rate: Main stream: 2MP (1920 x 1080)@1–25/30 fps, 1.3MP (1280 x 960)@1–25/30 fps, 720p@1– 25/30 fps Sub stream 1: D1 (704 × 576/ 704 × 480)@1–25/30 fps, VGA (640 × 480)@1–25/30 fps, CIF (352 × 288/ 352 × 240)@1–25/30 fps Sub stream 2: 2MP (1920 x 1080)@1–25/30 fps,1.3MP (1280 x 960)@1–25/30 fps, 720p@1– 25/30 fps, D1 (704 × 576/ 704 × 480)@1–25/30 fps Sub stream 3: D1 (704 × 576/704 × 480)@1– 25/30 fps, VGA (640 × 480)@1–25/30 fps, CIF (352 × 288/ 352 × 240)@1–25/30 fps OTA (Over-The-Air): Support ROI: Support (4 Areas) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower) Image Stabilization: Electronic Image Stabilization (EIS) Video Format: PAL/NTSC Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, Rectangular) Privacy Mask: 4 Areas Protocol: IPv4. IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Mirror Function: Support ISA (Intelligent Scene Adaption): Support Defog: Support Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Faces Face Cutout (Face/ One Inch Photo/ Custom) , Snapshot Mode (Real- Time/ Optimized/ Quality Priority), Optimal face snapshot upload, Face attributes extraction including 6 attributes and 8 expressions, Snapshot strategies (real-time snapshot, quality priority and optimization snapshot), Face angle filter, Optimized Duration, Quality Threshold, Snapshot Sensitivity People Counting: Tripwire people counting, Generating and exporting report (Day/Week/Month/Year), People counting in area and queue management, Generating and exporting report (Day/Week/ Month), 4 rules can be set for tripwire, people counting in area and queue management Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Audio: Built-in Mic Alarm IN: 1 Channels in: 5mA 3V–5V DC Alarm Out: 1 Channel out: 300mA 12V DC OSD: Camera title, Date & Time Ethernet: RJ-45 (10/100 Enhancement Base-T) User/ Host: 20 (Total bandwidth: 80 Mbps) Browser: Microsoft, Edge and Chrome Hardware Reset Point: Support Certificates: MTBF Certificate from STQC, EMI/EMC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Device Search Tool: IP finder Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Weatherproof Standard: IP67, IK10 Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% RH, non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: 10%–95% RH, non-condensing Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.6W (12 VDC), 3.3 W (PoE) Max. (H.265 + WDR + Intelligence on + IR on : 9.6W (12 VDC), 11.9W (PoE) Casing: Metal + Plastic Dimension: 269.5mm x 80.55mm x 73.8mm Weight: 1100g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
