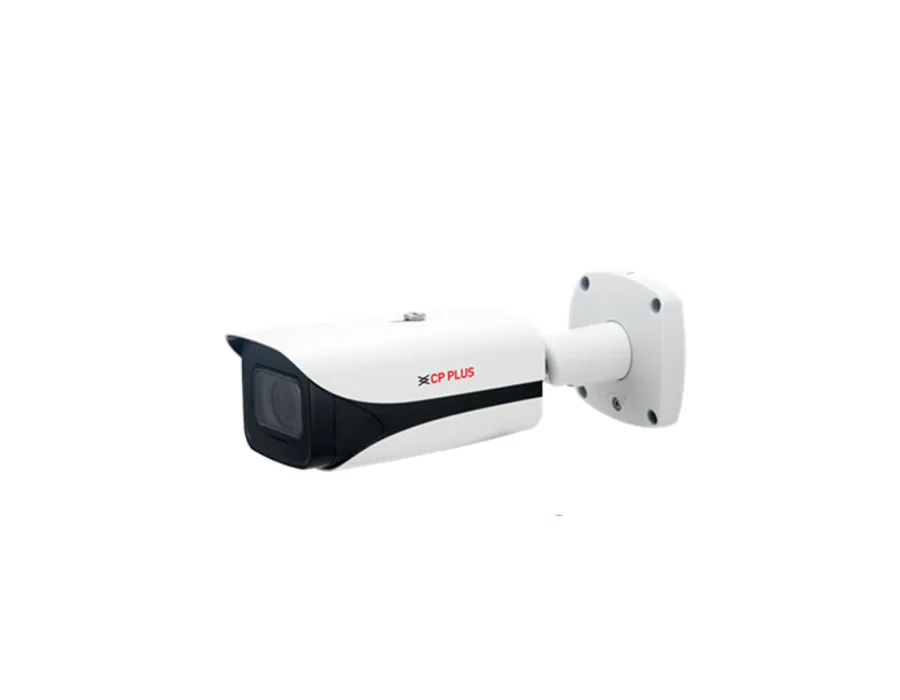

CP Plus CP-UNC-TE41ZL6C-VMDS-Q – 4MP Network IR Bullet Camera - 60Mtr.

4MP Network IR Bullet Camera - 60Mtr. Features 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 × 1520)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, Defog, BLC, HLC, AWB, AGC 2.7mm ~13.5mm Motorized Lens IR Range of 60 Mtr. Support Starlight Technology Support Built-in Mic Micro SD, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 2688(H) × 1520 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 512 MB ROM: 128 MB DORI Distance: Lens W: 44.1 Mtr. (Detect), 17.7 Mtr. (Observe), 8.8 Mtr. (Recognize), 4.4 Mtr. (Identify) Lens T: 144.8 Mtr. (Detect), 57.9 Mtr. (Observe), 29.0 Mtr. (Recognize), 14.5 Mtr. (Identify) Gain Control (AGC): Auto Lens Type: Motorized vari-focal Max. Aperture: F1.4 Lens Mount: M14 Close Focus Distance: 0.8 m Lens: 2.7mm~13.5mm Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: H: 109°–30°, V: 56°–17°, D: 131°–35° IR Number: 4 IR LED IR Distance: IR Range of 60 Mtr. Iris Control: Auto IR Control: Auto, Zoomprio, Manual AI Coding: AI H.265, AI H.264 Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Motion Detection: OFF/ON (4 areas) Privacy Mask: 4 Area Stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 × 1520)@1–25/30 fps, 1080P (1920 × 1080)@1-25/30fps, 1.3MP (1280 × 960)@1-25/30fps, 720P (1280 × 720)@1-25/30fps Sub stream 1: D1 (704 × 576/ 704 × 480)@1–25/30 fps, VGA (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)@1-25/30fps Sub stream 2: 1080P (1920 × 1080)@1-25/30fps, 1.3MP (1280 × 960)@1-25/30fps, 720P (1280 × 720)@1-25/30fps, D1 (704 × 576/ 704 × 480)@1–25/30 fps Sub stream 3: D1 (704 × 576/ 704 × 480)@1-25/30fps IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human) People Counting: Tripwire people counting, Generating and exporting report (Day/Week/Month/Year), People counting in area and queue management, Generating and exporting report (Day/Week/ Month), 4 rules can be set for tripwire, People counting in area and queue management Video Format: PAL/NTSC ROI: Support (4 Areas) IMD: Support Mirror Function: Support Overlay: Privacy Masking, Channel Title, Time Title Location, Custom Title, Face Statistics S/N Ratio: >56 dB Audio: Built-in Mic Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Resolution: 4MP (2688 × 1520), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Image Stabilization: Electronic Image Stabilization (EIS) Noise Reduction: 3D NR Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Device Search Tool: IP finder OTA (Over-The-Air): Support Day/Night: Auto(ICR)/Color/B/W Ethernet: RJ-45 (10/100 Enhancement Base-T) Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Image Rotation: 0°/90°/180°/270° Reset Button: Support Event Alarm: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Defog: Support Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channels in: wet contact, 5mA 3V–5V DC Alarm Out: 1 Channel out: wet contact, 300mA 12V DC SDK and API: Support Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Faces Face Cutout(Face/ One Inch Photo/ Custom) , Snapshot Mode(Real- Time/ Optimized/ Quality Priority), Optimal face snapshot upload; face attributes extraction including 6 attributes and 8 expressions; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; Optimized Duration, Quality Threshold, Snapshot Sensitivity Bit Rate: H.265: 3 kbps–6144 kbps, H.264: 3 kbps–6144 kbps Bit Rate Control: CBR/VBR Browser: Microsoft, Edge and Chrome Storage: SFTP, NAS, Mirco SD card (Max. 512GB) User/ Host: 20 (Total bandwidth: 80 M) Weatherproof Standard: IP67, IK10 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af)/ePoE Power Consumption: Basic: 1.6W (12 VDC); 3.3 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 9.6W (12 VDC); 11.9W (PoE) Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: 10%–95% (RH), non-condensing Casing: Metal + Plastic Dimension: 273.2 mm × 95.0 mm × 95.0 mm Weight: 1100g
