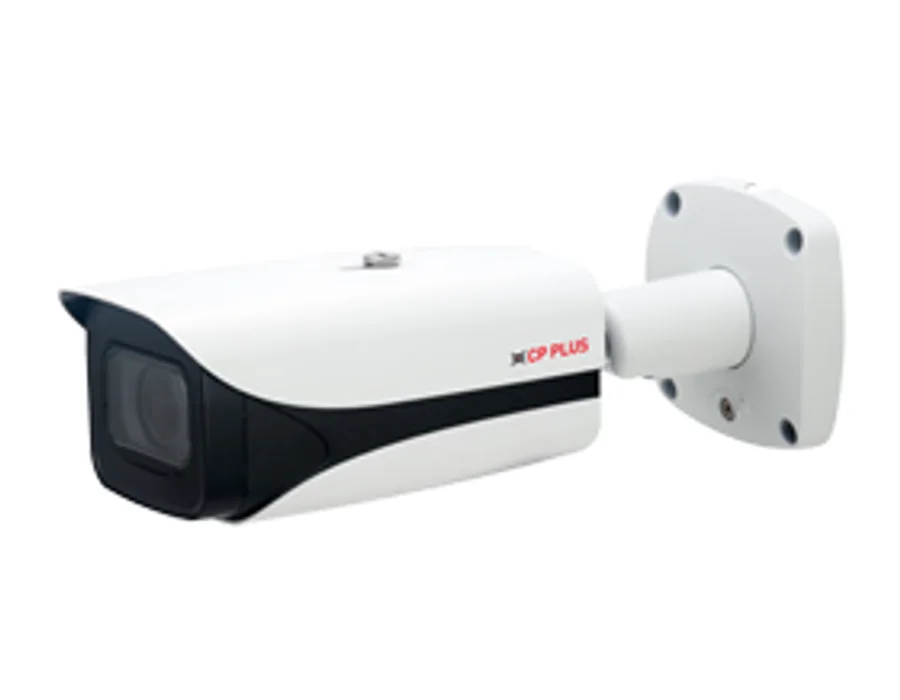

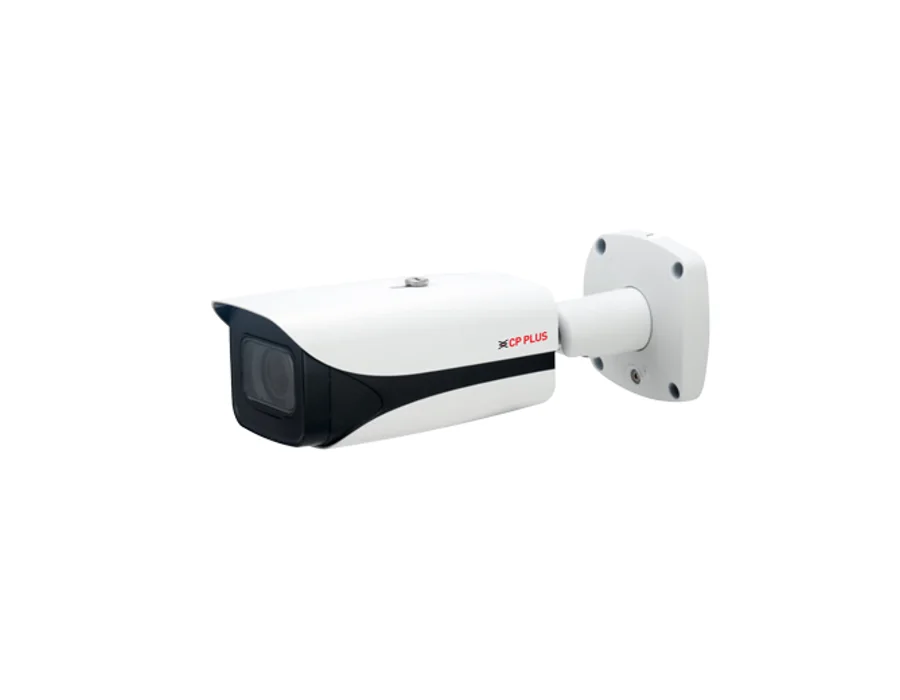

CP Plus CP-UNC-TE81ZL6C-VMDS-Q – 8MP Network IR Bullet Camera - 60Mtr.

8MP Network IR Bullet Camera - 60Mtr. Features 1/2.7" 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 x 2160)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night (ICR), 3D NR, Defog, BLC, HLC, AWB, AGC, Digital watermarking, 2.7mm~13.5mm Motorized Lens IR Range of 60 Mtrs. Support Starlight Technology Support Built-in Mic Micro SD Card, IP67, IK10 (optional), PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.7" 8MP PS CMOS Image Sensor (0.9407 centimeters) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 3840 (H) × 2160 (V) Shutter Speed: Auto/Manual 1/3 s–1/100000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° RAM: 512 MB ROM: 128 MB White Balance: Auto, natural, street lamp, outdoor, manual, regional custom Lens: 2.7mm~13.5mm Lens Type: Motorized Lens Gain Control (AGC): Auto Iris Control: Fixed Max. Aperture: F1.4 Lens Mount: φ14 Close Focus Distance: 0.8m DORI Distance: Lens W: 44.1 m (Detect), 17.7 m (Observe), 8.8 m (Recognize), 4.4 m (Identify) Lens T: 144.8 m (Detect), 57.9 m (Observe), 29.0 m (Recognize), 14.5 m (Identify) Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35° Day/Night: Auto(ICR)/Color/B/W S/N Ratio: >56 dB Video Format: PAL/NTSC Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Smart Compression: AI H.265, AI H.264 IR: IR Range of 60 Mtr. IR Control: Auto/Face Priority, Number Plate Priority/Manual IR Number: 4 IR LED Stream Capability: Quad Stream Frame Rate: Main stream: 8MP (3840 x 2160)@1–25/30fps, 4MP (2688 x 1520)@1–25/30fps, 3MP (2048 x1536/ 2304 x 1296)@1–25/30fps, 2MP (1920 x 1080)@1–25/30fps, 1.3MP (1280 x 960)@1 25/30fps, 1MP (1280 × 720)@1–25/30fps Sub stream 1: 2MP (1920 x 1080)@1–15fps, 1.3MP (1280 x 960)@1–15fps, 720P (1280 x 720)@1–15fps Sub stream 2: D1 (704 × 576/ 704 × 480)@1–15, VGA (640 × 480)@1–15, CIF (352 × 288/ 352 × 240)@1–15 fps Sub stream 3: D1 (704 × 576/ 704 × 480)@1–15, VGA (640 × 480)@1–15, CIF (352 × 288/ 352 × 240)@1–15 fps Resolution: 8MP (3840 × 2160), 4MP (2688 × 1520), 3MP (2048 × 1536/ 2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 1MP (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Smart IR: Support Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080P resolution and lower) ROI: Supported (4 areas) Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–6144 kbps, H.264: 3 kbps–6144 kbps Mirror Function: Support Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 Areas Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Audio: Built-in Mic Alarm IN: 1 channels in: 5mA 3V–5V DC Alarm Out: 1 channel out: 300mA 12V DC OSD: Privacy Masking, Channel Title, Time Title, Location, Custom Title Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T) , unicast, multicast, InstaOn Ethernet: RJ-45 (10/100 Enhancement Base-T) OTA (Over-The-Air): Support Image Stabilization: Electronic Image Stabilization (EIS) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Defocus detection Device Search Tool: IP finder Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot. Defog: Support Storage: SFTP, NAS, Micro SD card (support max. 512 GB) User/ Host: 20 (Total bandwidth: 80 M) Browser: Microsoft, Edge and Chrome Hardware Reset Point: Support Certificates: MTBF Certificate from STQC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.4 W (12 VDC); 3.0 W (PoE) Max. (H.265+ WDR+IR on): 10.2 W (12 VDC); 12.3 W (PoE) Weatherproof Standard: IP67, IK10 (optional) Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% RH, non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: 10%–95% RH, non-condensing Casing: Metal + Plastic Dimension: 273.2mm × 95.0mm × 95.0mm Weight: 1100g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
