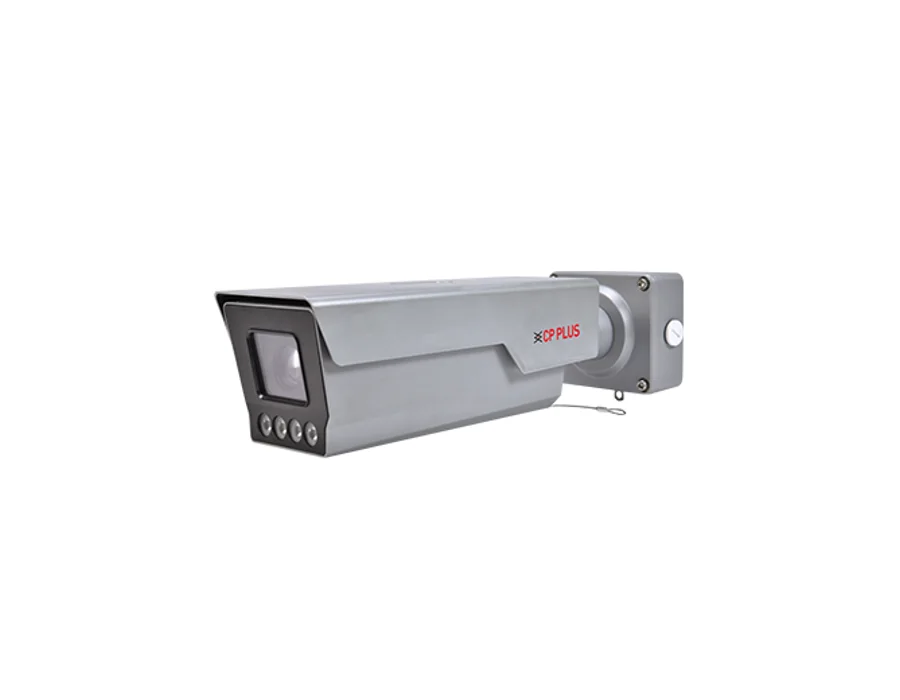

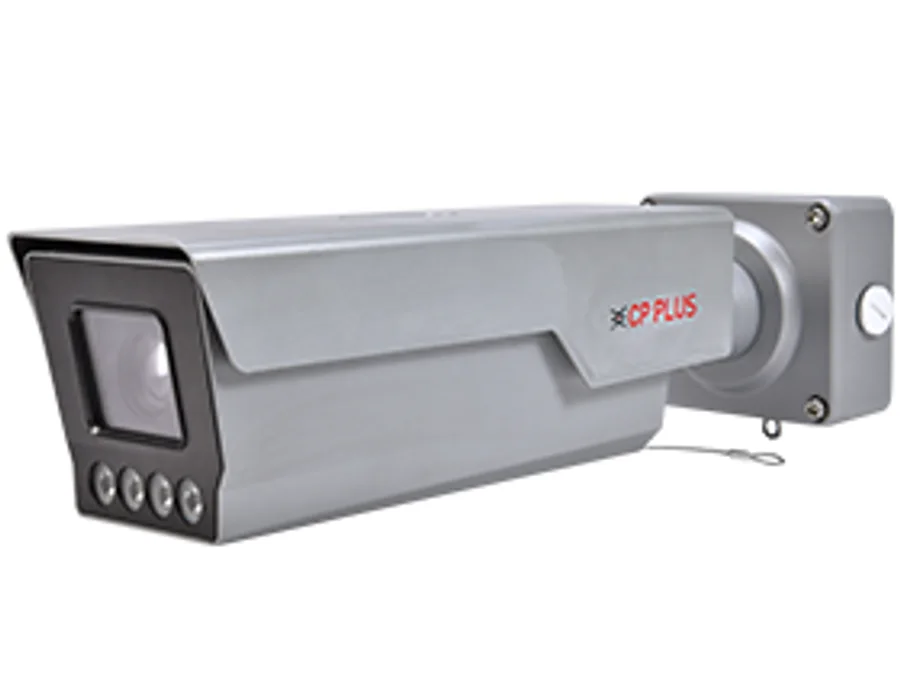

CP Plus CP-UNC-TT41L3-VMD-Q – 4MP IR AI Enforcement Camera

4MP IR AI Enforcement Camera Features 1/1.8" 4 MP CMOS sensor (1.411 Centimeters) Max. 4MP (2688 × 1520)@30fps H.265, H.264M, H.264H, H.264B, MJPEG 10 mm–50 mm Motorized Lens WDR(140dB), Day/Night(ICR), 3D NR, BLC, HLC IR Range of 30 Mtr., IP67, IK10 Specifications Image Sensor: 1/1.8" 4 MP CMOS sensor (1.411 centimeters) Effective Pixels: 2688 (H) × 1520 (V) Minimum Illumination: 0.0001 Lux Shutter Speed: Auto/Manual 1/25 s–1/100,000 s White Balance: Auto, Manual, Outdoor, Natural, Street Lamp, Partial white balance Lens Type: Motorized vari-focal Max. Aperture: Max. F1.2 Lens: 10 mm-50 mm Video Compression: H.265, H.264M, H.264H, H.264B, MJPEG Back Light Compensation: BLC/ HLC/ WDR(140dB) S/N Ratio: > 56 dB Angle of view: Horizontal: 10°–44°, Vertical: 6°–24°, Diagonal: 12°–51° Resolution: 4MP (2688 × 1520), 2MP (1920 × 1080), UXGA (1600 × 1200), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288) Frame Rate: Main stream: 4MP (2688 × 1520)@25/30fps, 2MP (1980 x 1080)@50/60fps (WDR OFF) Sub stream: UXGA (1600 × 1200)@25/30 fps Noise Reduction: 2D NR, 3D NR Video Format: PAL/ NTSC IR LED: Support IR: IR Range of 30 Mtr. IR lane covered: 1–2 lanes IR Number: 4 IR (850 nm LED illuminators, adjustable brightness) Day/Night: Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the IR transmitting filter at night Image Resolution: 2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels) Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast ROI: Support (3 areas) OTA (Over-The-Air): Support Bit Rate: H.264: 32 kbps–32767 kbps, H.265: 32 kbps–32767 kbps, MJPEG: 512 kbps–32767 kbps Bit Rate Control: CBR/VBR Exposure Mode: Auto, Manual (Select from shutter values or customize shutter range) Speed Detection Range: 0 km/h–180 km/h SDK and API: Support Ethernet: 1 × RJ-45 Ethernet port, 10/100M network transmission Security: Authorized username and password, MAC address binding, HTTPS encryption, and network access control Alarm Event: Storage full, Storage error, External alarm, No storage card, Vehicle Blocklist, Illegal access, Network disconnection, IP conflict Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Video OSD: Channel Title, Time Title, GPS Display, Traffic Flow Info, Queue Info, Custom Title (Max. 8), Font Size and Font Color Motorcycle vehicle Violation Capture: Captures traffic violations including Non-motor Vehicle passenger overload, not wearing helmet, and wrong-way driving Motor Vehicle Violation Snapshot: Speeding, driving slow, wrong-way driving, illegal lane change Defog: Support Edge Enhancement: Support Traffic Event: Occupying lane, Traffic congestion Traffic Flow Detection: Statistics on vehicle flow, average speed, vehicle type, lane occupancy, average time headway, average queue length, and road status Positioning: GPS Image Tampering: Verifies watermarks in videos and images Image Encoding Format: JPEG Gain Scope: 0–100 Time Synchronization: NTP, GPS Target Detection: Motor vehicle, Motorcycle Auto Connect: Support Vehicle Color Recognition: White, Pink, Black, Red, Yellow, Gray, Blue, Green, Deep orange, Purple, Brown, and silver Gray (color recognition is not supported during nighttime) Trigger Mode: Video trigger/ Radar trigger Vehicle Logo: Acura, Alfa Romeo, Ashok Leyland, Aston martin, Audi, Bentley, Benz, BMW, Cadillac, Chevrolet, Citroen, Dacia, Daihatsu, Datsun, Ferrari, Fiat, Force, Ford, GMC, Honda, Hyundai, Infiniti, Iveco, Jaguar, Jeep, Kia, Land, Lexus, Mahindra, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Peugeot, Porsche, Renault, Rolls-Royce, Seat, Skoda, Smart, Suzuki, Tata, Tesla, Toyota, Volkswagen, Volvo Composite Image: Support combining up to 3 source images, and 1 closeup image into a composite image Bad Pixel Correction: Support ANPR Technology: Adopts developed algorithms to recognize license plate numbers and letters RS-485: 2, connects to devices such as radars Vehicle Type Recognition: Vehicle head: SUV, Large bus, Sedan, Light truck, Pickup, Heavy truck, Medium truck, Van, Medium bus, MPV Vehicle tail: SUV, Large bus, Sedan, Light truck, Pickup, Heavy truck, Medium truck, Van RS-232: 2, connects to devices such as radars Automatic Network Recovery (ANR): Platform and FTP (SD card is required) OSD Overlay: Time, Address, Device SN, Lane No., Plate number, Plate color, Vehicle logo, Vehicle type, Vehicle color, Vehicle size, Vehicle speed, Country/region, Event (violation name), and motor cycle attributes (Type, Number of people, and Helmet) Audio Input: 1 Channel Audio Output: 1 Channel Alarm Input: 3 Channel Alarm Output: 2 Channels 2 for relay Browser: Microsoft Edge, Chrome and Firefox Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12-36 VDC 3.33A, PoE Power Consumption: ≤ 13 W Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Weatherproof Standard: IP67 & IK10 Operating Temperature: –40 °C to +65 °C (–40 °F to +149 °F) Operating Humidity: 10%-90% (RH) Storage Temperature: –40 °C to +65 °C (–40 °F to +149 °F) Storage Humidity: 0%-90% (RH) Dimensions: 466.4 mm × 135.8 mm × 134.1 mm Weight: 3900g
