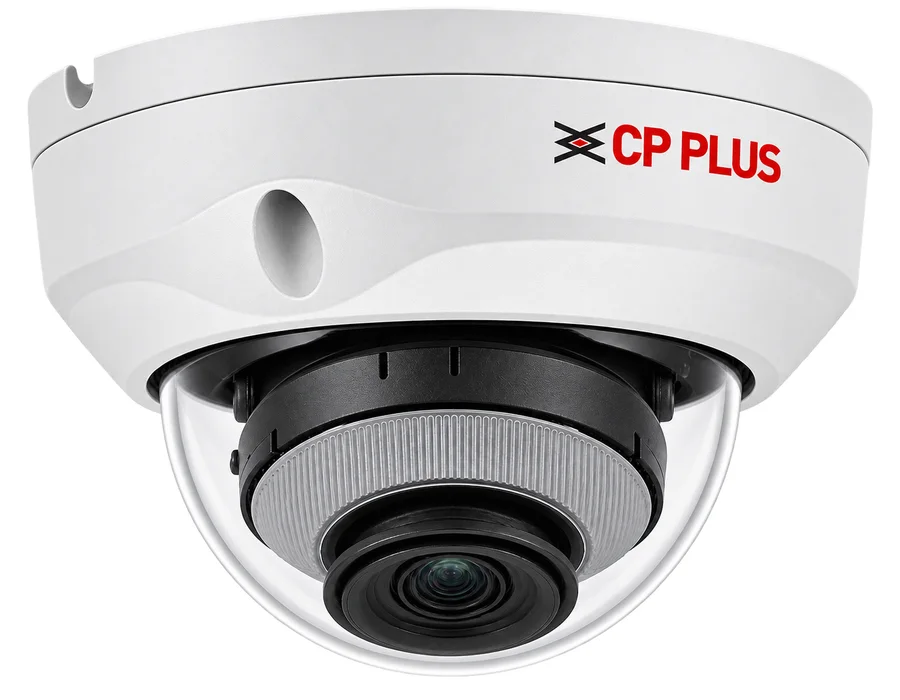

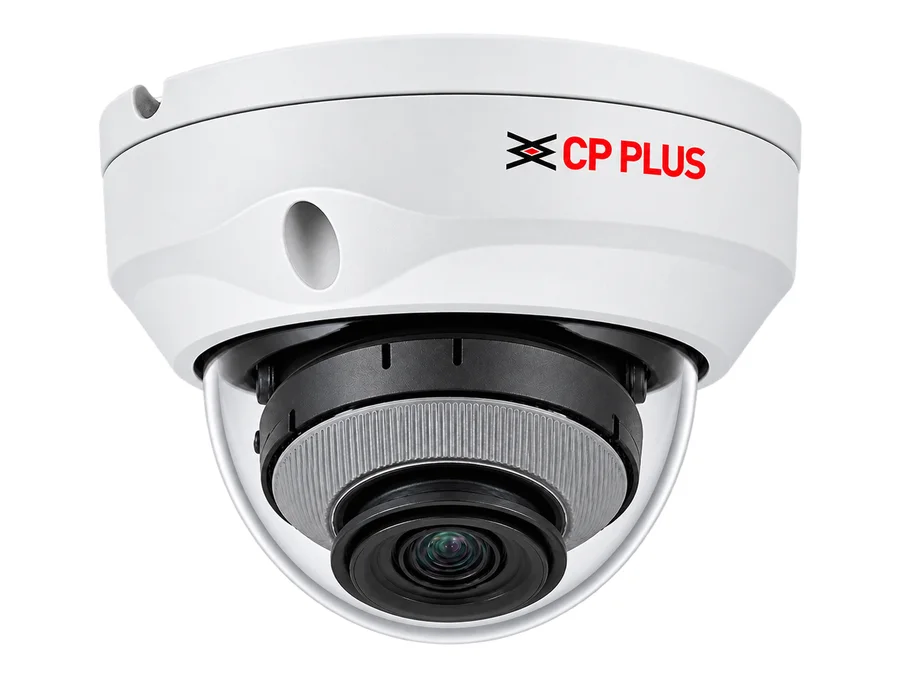

CP Plus CP-UNC-VC21L5C-VMD-LQ – 2MP Dual Light Vandal Dome Camera - 50Mtr.

2MP Dual Light Vandal Dome Camera - 50Mtr. Features 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 × 1080)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital water marking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens (2.8mm Optional) Support Starlight Technology Built-in Mic, Micro SD Card, PoE, IP67, IK10 Specifications Image Sensor: 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: 3.6mm: 55.7 m (Detect), 22.3 m (Observe), 11.1 m (Recognize), 5.6 m (Identify) 2.8mm: 44.0 m (Detect), 17.6 m (Observe), 8.8 m (Recognize), 4.4 m (Identify) Gain Control (AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 Close Focus Distance: 3.6mm: 1.1 m; 2.8mm: 0.7 m Lens: 3.6mm (2.8mm Optional) Angle of View: 3.6mm: H: 87°; V: 44°; D: 105° 2.8mm: H: 106°; V: 56°; D: 127° Iris Control: Fixed S/N Ratio: >58 dB IR Number: 3 IR LED, 4 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart Illumination: Support Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Back Light Compensation: BLC/ HLC/ WDR(120dB) Day/Night: Auto(ICR)/Color/B/W IR Control: Auto, Manual Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 areas Video Format: PAL/NTSC IVS (Perimeter Protection): Tripwire, Intrusion, IMD (Intelligent motion detection) Stream Capability: Quad Stream Frame Rate: Main stream: 2MP (1920 × 1080)@1–25/30fps Sub stream 1: 720P@1–25/30fps Sub stream 2: D1@1–25/30fps Sub stream 3: D1@1fps OSD: Camera title, Date & Time Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Image Rotation: 0°/90°/180°/270° (Support 90° with 2M resolution and lower) Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, RTMP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Ethernet: RJ-45 (10/100 Base-T) SDK and API: Support Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, External alarm, IMD (Intelligent motion detection), Security exception User/ Host: 6 (Total bandwidth: 36 M) Mirror Function: Support Audio: Built-in Mic Smart IR: Support Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Hardware Reset Point: Support Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Dual Power Backup: When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart Power Consumption: Basic: 2.1 W (12 VDC), 2.6 W (PoE); Max.: 6.2 W (12 VDC), 7.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) Browser: IE: IE11, Chrome, Firefox Storage: SFTP, Mirco SD card (Max. 512GB) Weatherproof Standard: IP67 & IK10 Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimension: 81.0 mm × 109.9 mm Weight: 350g
