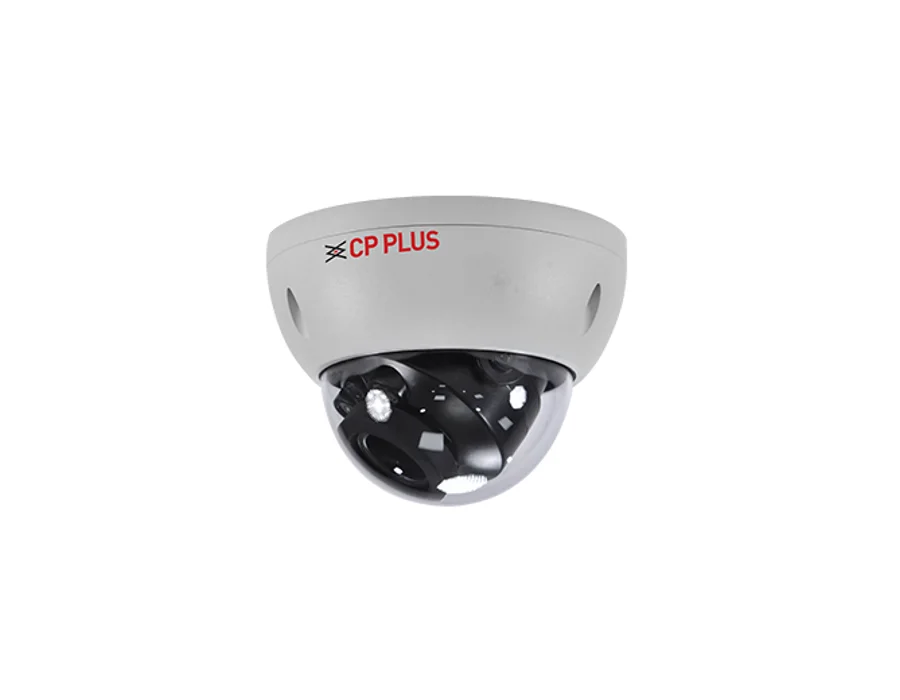

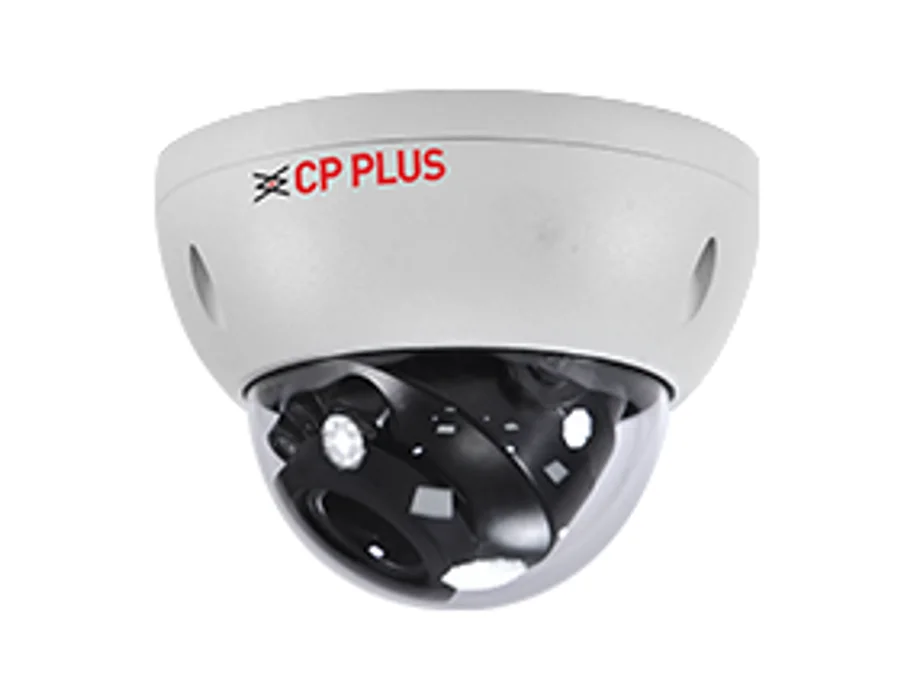

CP Plus CP-UNC-VC41ZL5C-VMD-Q – 4MP Network IR Vandal Dome Camera - 50Mtr.

4MP Network IR Vandal Dome Camera - 50Mtr. Features 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 x 1520)@ 1-25/30FPS Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, BLC, HLC, AWB, AGC 2.7mm~13.5mm Motorized Lens IR Range of 50 Mtr. Support Starlight Technology Support Built-in Mic Micro SD Card, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7 Effective Pixels: 2960 (H) × 1668 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s ROM: 128 MB RAM: 256 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Lens: 2.7 mm~13.5 mm Max. Aperture: F1.4 Close Focus Distance: 0.8 m Lens Mount: M14 DORI Distance: Lens W: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) ; Lens T: 210.0 m (Detect), 84.0 m (Observe), 42.0 m (Recognize), 21.0 m (Identify) Lens Type: Motorized Vari-focal Gain Control (AGC): Auto, Manual IR Control: Auto, Manual IR Number: 2 IR LED IR: IR Range of 50 Mtr. Audio: Built-in Mic Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36° S/N Ratio: >56dB Day/Night: Auto(ICR)/Color/B/W OTA (Over-The-Air): Support Resolution: 4MP (2688 x 1520), 3MP (2048 x 1536), (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 576/ 704 x 480), VGA (640 x 480), CIF(352 x 288/ 352 x 240) Stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 x 1520)@1-25/30fps, 3MP (2048 x 1536)@1-25/30fps, (2304 x 1296)@1-25/30fpa, 1080p (1920 x 1080)@1-25/30fps, 1.3MP (1280 x 960)@ 1-25/30fps, 720p (1280 x 720)@1-25/30fps ; Sub stream1: D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA (640 x 480)@ 1-25/30fps, CIF(352 x 288/ 352 x 240)@1-25/30fps, [720p (1280 x 720)@1-25/30fps optional] ; Sub stream 2: D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF(352 x 288/ 352 x 240)@1-25/30fps ; Sub stream 3: D1 (704 x 576/ 704 x 480)@1fps, VGA(640 x 480)@1FPS, CIF (352 x 288/ 352 x 240)@1fps Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Smart search: Work together with AI NVR to perform refine AI search, event extraction and merging to event ; videos Mirror Function: Support Iris Control: Fixed, DC Iris (optional) Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) IVS (Optional): Intrusion, Tripwire (the two functions support the classification and accurate detection of ; vehicle and human) Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) OSD: Camera title, Date & Time, Channel Title, Time Title, Location, Font Properties, Custom Title Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, ; PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, ; Profile T), unicast, multicast Device Search Tool: IP finder Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, ; Defocus detection, External alarm, IMD (Intelligent motion detection), Security exception Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) User/ Host: 6 (Total bandwidth: 48 M) Browser: IE, Chrome, Firefox Weatherproof Standard: IP67, IK10 Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.4 W (12 VDC), 3 W (PoE) ; Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.2 W (12 ; VDC), 7.4 W (PoE) Operating Temperature: –30°C to +60°C Operating Humidity: ≤95% Storage Temperature: –40°C to +60°C (–40°F to +140°F) Casing: Metal Dimensions: 93.4 mm × Φ122 mm Weight: 510g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
