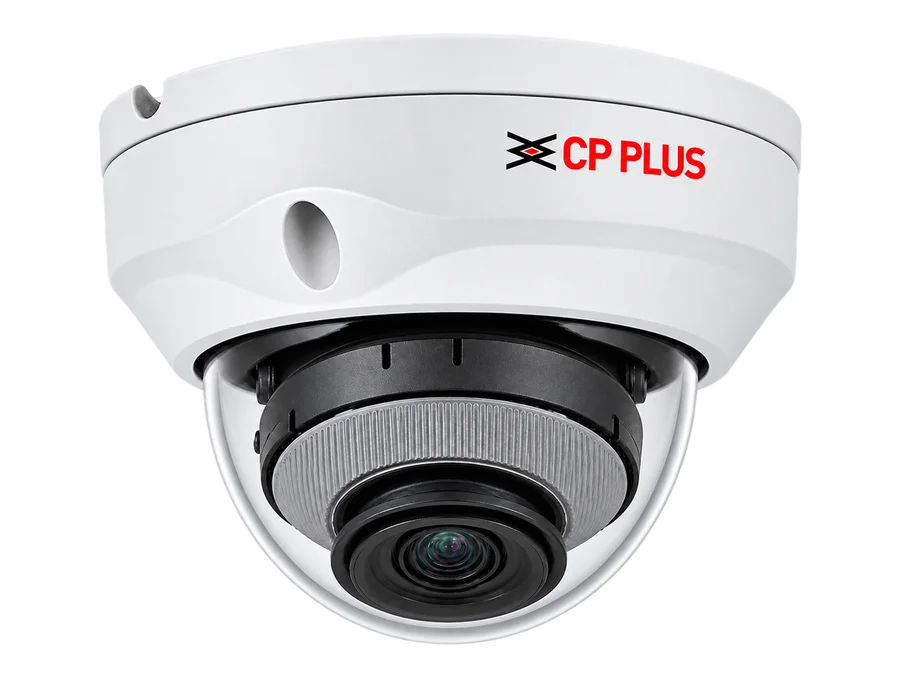

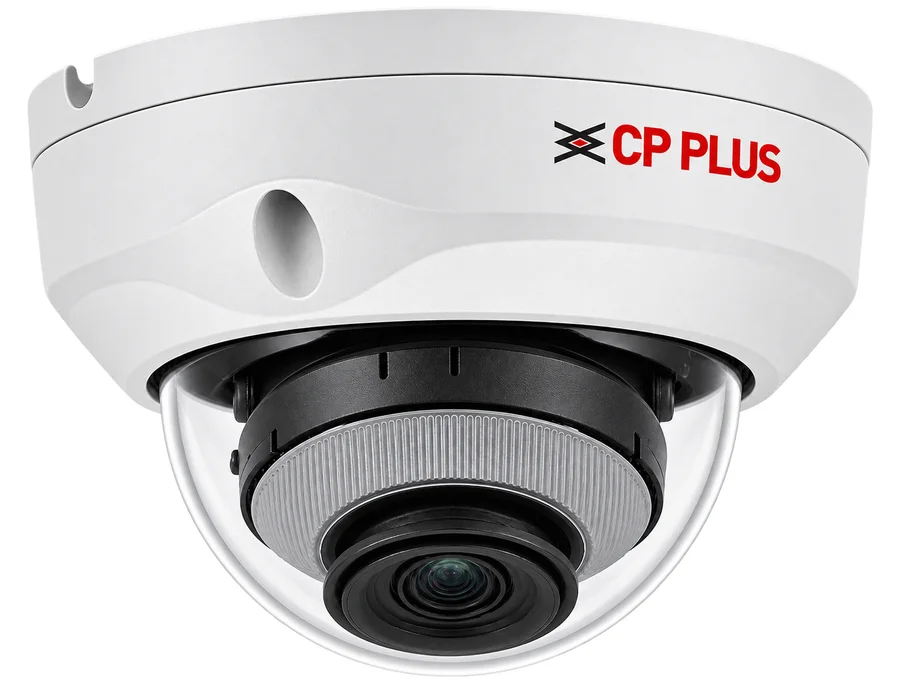

CP Plus CP-UNC-VC61L5C-VMD-LQ – 6MP Dual Light Vandal Dome Camera - 50Mtr.

6MP Dual Light Vandal Dome Camera - 50Mtr. Features 1/2.7” 6MP PS CMOS Image Sensor (0.9407 centimeters) Max. 6MP (3288 × 1850)@20fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream Support Built-in Mic WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6 mm fixed Lens (2.8 mm optional) Support Starlight Technology Micro SD Card, PoE, IP67, IK10 Specifications Image Sensor: 1/2.7” 6MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3288 (H) × 1850 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: Lens 3.6 mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify); Lens 2.8 mm: 61.2 m (Detect), 24.5 m (Observe), 12.2 m (Recognize), 6.1 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 3.6 mm: 1.7 m, 2.8 mm: 1.0 m IR Number: 3 IR LED, 4 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart IR: Support Lens: 3.6 mm Lens (2.8 mm Optional) Lens Mount: M12 S/N Ratio: >56dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: 3.6 mm: H: 91°, V: 46°, D: 110°; 2.8 mm: H: 112°, V: 61°, D: 132° Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) OTA (Over-The-Air): Support Stream Capability: Quad Stream Frame Rate: Main stream: 6MP (3288 × 1850)@20 fps, 4MP (2688 × 1520)@25/30 fps; Sub Stream 1: D1@25fps, Sub Stream 2: D1@25fps, Sub Stream 3:D1@1fps Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Resolution: 6M (3288 × 1850), 5M (2880 × 1620), 4M (2688 × 1520), 3M (2048 × 1536/2304 × 1296), 2M (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Audio: Built-in Mic Iris Control: Fixed IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/ IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Day/Night: Auto(ICR)/Color/B/W Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot IMD: Support IR Control: Auto, Manual Mirror Function: Support Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, IMD (Intelligent motion detection), Security exception Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Bit Rate Control: CBR/VBR Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: IE, Chrome, Firefox Audio In: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Weatherproof Standard: IP67, IK10 User/Host: 20 (Total bandwidth: 48 M) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC, PoE Power Consumption: Basic: 2.2 W (12 VDC), 2.9 W (PoE); Max.: 6.8 W (12 VDC), 8.2 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimension: 81.0 mm × 109.9 mm Weight: 340g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
