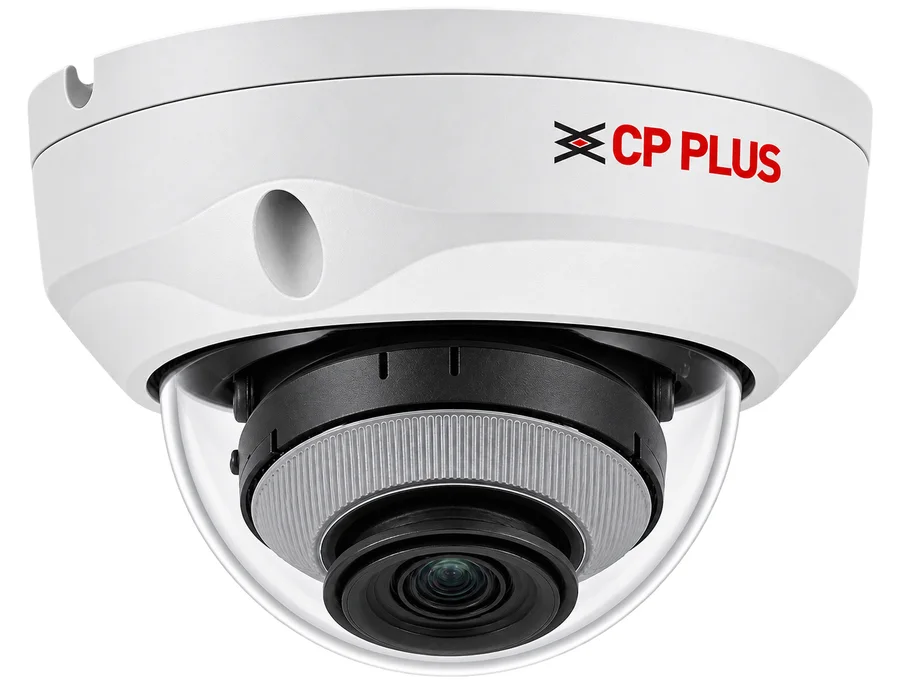

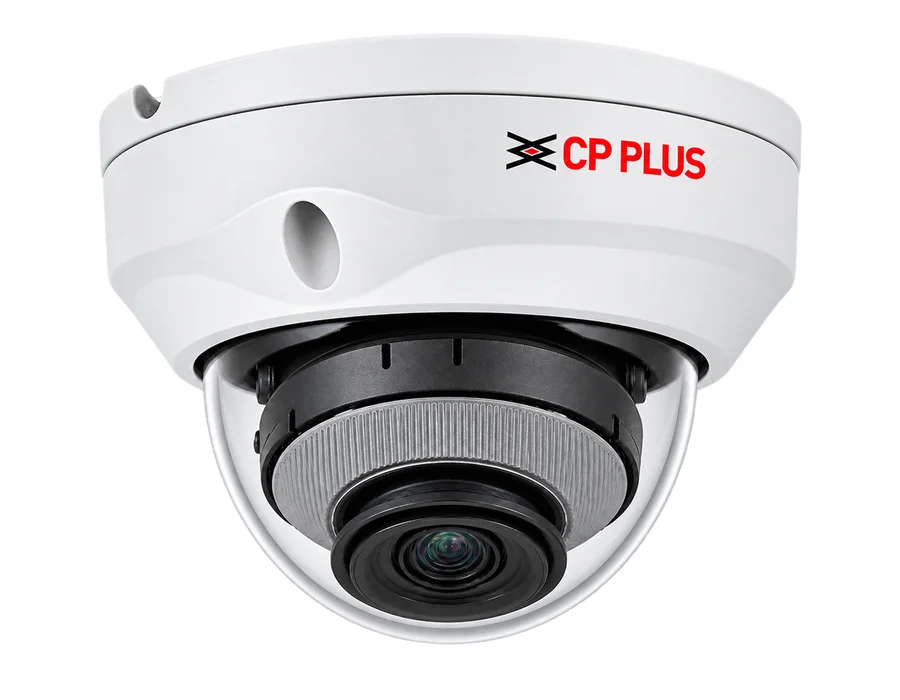

CP Plus CP-UNC-VC81L5C-VMD-LQ – 8MP Dual Light Vandal Dome Camera - 50Mtr.

8MP Dual Light Vandal Dome Camera - 50Mtr. Features 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens (2.8mm Optional) Support Starlight Technology Micro SD Card, PoE, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3840 (H) × 2160 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: 3.6mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) ; 2.8mm: 84.8 m (Detect), 33.9 m (Observe), 17.0 m (Recognize), 8.5 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 3.6mm: 1.9 m; 2.8mm: 1.5 m Lens: 3.6mm (2.8mm Optional) Lens Mount: M12 IR Control: Auto, Manual IR Number: 3 IR LED, 4 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 30 Mtr. S/N Ratio: >56dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of View: 3.6mm: H: 86°; V: 49°; D: 100° ; 2.8mm: H: 110°; V: 58°; D: 132° Smart IR: Support Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Day/Night: Auto(ICR)/Color/B/W OTA (Over-The-Air): Support Mirror Function: Support Noise Reduction: 2D NR, 3D NR Resolution: 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728/2880 × 1620), 4MP (2688 × 1520), ; 3MP (2048 × 1536/ 2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), ; D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Motion Detection: OFF/ON (4 areas, rectangular) stream Capability: Quad Stream Frame Rate: Main stream : 8MP (3840 × 2160)@1-20fps, 6MP (3072 × 2048)@1-20fps, 5MP (3072 × ; 1728)@1-20fps, 4MP (2880 × 1620/ 2688 × 1520)@1-20fps/ (2688 × 1520)@1-25/30fps, 3MP ; (2048 × 1536/ 2304 × 1296) 1-25/30fps, 2MP (1920 × 1080)@1-25/30fps, 1.3MP (1280 × ; 960)1-25/30fps, 720p (1280 × 720)@1-25/30fps ; Sub Stream 1: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF (352 ; × 288/ 352 × 240)@1-25/30fps ; Sub stream 2: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF (352 ; × 288/ 352 × 240)@1-25/30fps ; Sub stream 3: D1 (704 × 576/ 704 × 480)@1fps, VGA (640 × 480)@1fps, CIF (352 × 288/ 352 ; × 240)@1fps ; *The sub streams max. frame rates depends on main stream frame rates IVS (Optional): Intrusion, Tripwire (the two functions support the classification and accurate detection of ; vehicle and human) Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) Iris Control: Fixed Audio: Built-in Mic OSD: Privacy Masking, Channel Title, Time Title, Location, Font Properties, Custom Title Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Bit Rate Control: CBR/ VBR IMD (Intelligent motion detection): Support SDK and API: Support Device Search Tool: IP finder Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, ; IMD (Intelligent motion detection), Security exception Smart search: Work together with AI NVR to perform refine AI search, event extraction and merging to event ; videos Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/ ; IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile ; G, Profile T), unicast, multicast Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Ethernet: RJ-45 (10/100 Base-T) Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: IE, Chrome, Firefox, Microsoft Edge User/Host: 6 (Total bandwidth: 48 M) Weatherproof Standard: IP67 & IK10 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.6 W (12 VDC), 3.3 W (PoE) ; Max.: 6.9 W (12 VDC), 8.3 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) Operating Temperature: –40°C to +60°C Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40°C to +60°C Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimension: 81.0 mm × Φ109.9 mm Weight: 360g
