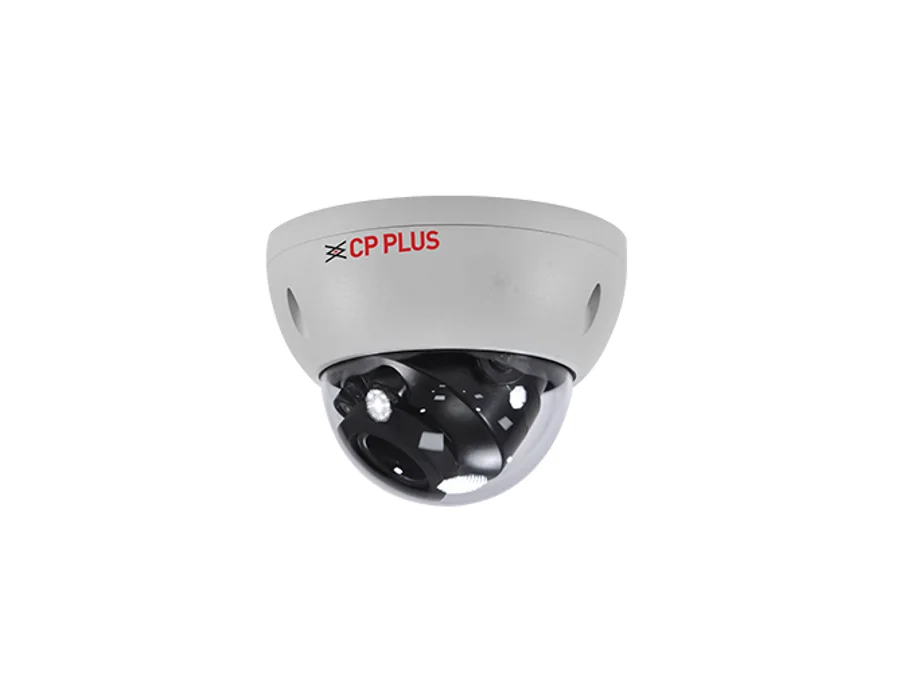

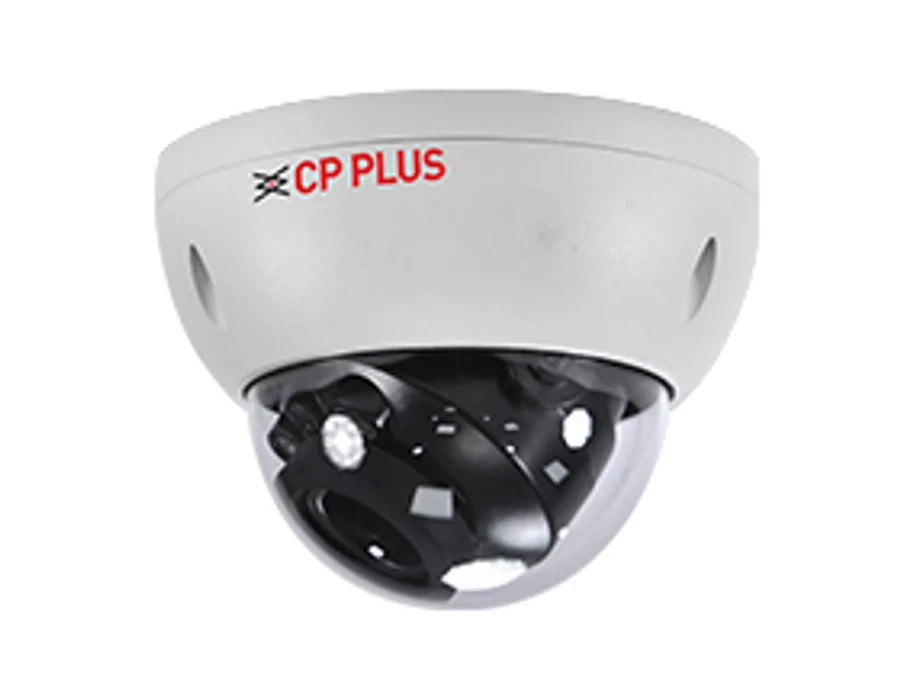

CP Plus CP-UNC-VC81ZL5C-VMD-Q – 8MP Network IR Vandal Dome Camera - 50Mtr.

8MP Network IR Vandal Dome Camera - 50Mtr. Features 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, BLC, HLC, AWB, AGC, Digital watermarking 2.7 mm~13.5 mm Motorized Lens IR Range of 50 Mtr. Support Starlight Technology Support Built-in Mic Micro SD Card, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3840 (H) × 2160 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom ROM: 256 MB RAM: 128 MB Close Focus Distance: 0.8 m Gain Control (AGC): Auto, Manual Lens Type: Motorized Vari-focal Max. Aperture: F1.4 Lens Mount: M14 DORI Distance: Lens W: 85.3 m (Detect), 34.1 m (Observe), 17.1 m (Recognize), 8.5 m (Identify); ; Lens T: 280.0 m (Detect), 112.0 m (Observe), 56.0 m (Recognize), 28.0 m (Identify) Lens: 2.7 mm~13.5 mm Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36° S/N Ratio: >56dB IR Number: 2 IR LED IR: IR Range of 50 Mtr. Day/Night: Auto(ICR)/Color/B/W Back Light Compensation: BLC/ HLC/ WDR(120dB) IR Control: Auto, Manual Iris Control: Fixed OTA (Over-The-Air): Support Device Search Tool: IP finder Smart search: Work together with CP Plus AI NVR to perform refine AI search, event extraction and merging ; to event videos Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Resolution: 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4.6MP (2880 × 1620), 4MP (2688 ; × 1520), 3MP (2048 × 1536), (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p ; (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Stream Capability: Quad Stream Frame Rate: Main stream: 8MP (3840 × 2160)@1-20fps, 6MP (3072 × 2048)@1-20fps, 5MP (3072 × ; 1728)@1-20fps, 4MP (2880 × 1620/ 2688 × 1520)@1-20fps/ (2688 × 1520)@1-25/30fps, ; 3MP (2048 × 1536/ 2304 × 1296)@1-25/30fps, 2MP (1920 × 1080)@1-25/30fps, 1.3MP ; (1280 × 960)@1-25/30fps, 720p (1280 × 720)@1-25/30fps ; Sub Stream 1: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF ; (352 × 288/ 352 × 240)@1-25/30fps ; Sub stream 2: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF ; (352 × 288/ 352 × 240)@1-25/30fps ; Sub stream 3: D1 (704 × 576/ 704 × 480)@1fps, VGA (640 × 480)@1fps, CIF (352 × 288/ ; 352 × 240)@1fps ; *The sub streams max. frame rates depends on main stream frame rates Audio: Built-in Mic Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Video Format: PAL/NTSC IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of ; vehicle and human) Privacy Mask: 4 areas ROI: Support (4 areas) OSD: Privacy Masking, Channel Title, Time Title, Location, Font Properties, Custom Title Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Mirror Function: Support Ethernet: RJ-45 (10/100 Base-T) SDK and API: Support Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, ; Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, ; Defocus detection, External alarm, IMD (Intelligent motion detection), Security exception Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, ; PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, ; Profile T), unicast, multicast Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) User/ Host: 6 (Total bandwidth: 48 M) Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Audio Input: 1 channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channel in: 5mA 3V–5 VDC Alarm Out: 1 Channel out: 300mA 12 VDC Browser: IE, Chrome, Firefox, Microsoft Edge Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.7 W (12 VDC), 3.4 W (PoE) ; Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC), ; 7.3 W (PoE) Weatherproof Standard: IP67, IK10 Operating Temperature: –30°C to +60°C Operating Humidity: ≤95% Storage Temperature: –30°C to +60°C Storage Humidity: ≤95% Casing: Metal Dimensions: 93.4 mm × Φ122 mm Weight: 510g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
