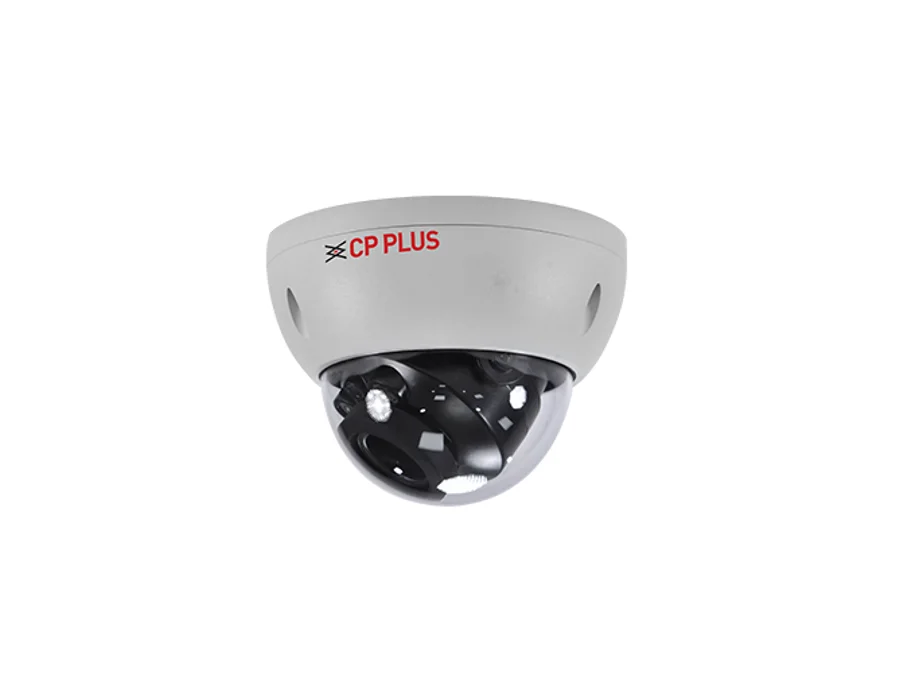

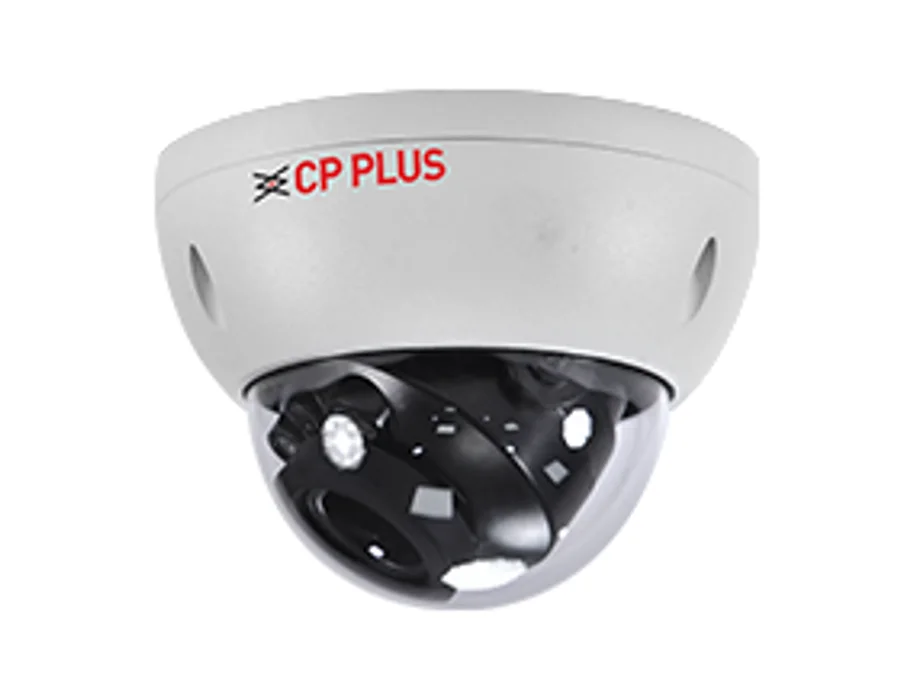

CP Plus CP-UNC-VE21ZL4C-VMDS-Q – 2MP Network IR Vandal Dome Camera - 40Mtr.

2MP Network IR Vandal Dome Camera - 40Mtr. Features 1/2.8” 2MP PS CMOS Image Sensor (0.9071 Centimeter) Max. 2MP (1920 × 1080)@1–25/30 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG, Quad Stream WDR(120dB), Day/Night(ICR), 3D NR, Defog, BLC, HLC, AWB, AGC 2.7mm ~13.5mm Motorized lens IR Range of 40 Mtr. Support Starlight Technology Built in Mic, Digital, Micro SD, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image Sensor (0.9071 Centimeter) Minimum Illumination: 0.006 Lux@F1.6(Color,30IRE), 0.0006 Lux@F1.6(B/W,30IRE), 0 lux (IR on) Effective Pixels: 1920 (H) × 1080 (V) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° RAM: 512 MB ROM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Lens: 2.7mm~13.5mm Gain Control(AGC): Auto Lens Mount: φ14 Lens Type: Motorized vari-focal IR Number: 3 IR LED IR: IR Range of 40 Mtr. Max. Aperture: F1.6 Day/Night: Auto(ICR)/Color/B/W Iris Control: Fixed Close Focus Distance: 0.8 Mtr. DORI Distance: Lens W: 44.1 Mtr. (Detect), 17.7 Mtr. (Observe), 8.8 Mtr. (Recognize), 4.4 Mtr.(Identify) Lens T: 144.8 Mtr. (Detect), 57.9Mtr. (Observe), 29.0Mtr. (Recognize), 14.5 Mtr. (Identify) Back Light Compensation: BLC / HLC / WDR(120dB) Angle of view: H: 109°–30°, V: 56°–17°, D: 131°–35° S/N Ratio: >56 dB Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Resolution: 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(704 × 576/ 704 × 480), VGA(640 × 480), CIF(352 × 288/ 352 × 240) Video Format: PAL/NTSC Stream Capability: Quad Stream Frame Rate: Main stream: 2MP/1.3MP/1MP @(1-25/30fps) Sub stream 1: D1/VGA/CIF@(1-25/30fps) Sub stream 2: 2MP/1.3MP/1MP/D1@(1-25/30fps) Sub stream 3: D1/VGA/CIF@(1-25/30fps) Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Noise Reduction: 3D NR Image Stabilization: Electronic Image Stabilization (EIS) Motion Detection: OFF/ON (4 Areas, Rectangular) Privacy Mask: 4 Area ROI: Support (4 Areas) Overlay: Privacy Masking, Channel Title, Time Title, Location, Custom Title, Face Statistics OTA (Over-The-Air): Support Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human), Loitering detection Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Faces Face Cutout (Face/ One Inch Photo/ Custom) , Snapshot Mode (Real- Time/ Optimized/ Quality Priority), Optimal face snap shot upload; face attributes extraction including 6 attributes and 8 expressions; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; Optimized Duration, Quality Threshold, Snapshot Sensitivity People Counting: Tripwire people counting, generating and exporting report (day/week/month/year), people counting in area and queue management, generating and exporting report (day/week/ month); 4 rules can be set for tripwire, people counting in area and queue management Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) Mirror Function: Support Audio: Built in Mic Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Two-way talk: Support Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Alarm IN: 1 Channels in: 5mA 3V–5V DC Alarm Out: 1 Channel out: 300mA 12V DC SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Event Alarm: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, Allow list/Block list, HTTPS, trusted upgrade, trusted boot, firmware encryption User/Host: 20 (Total bandwidth: 80 Mbps) Defog: Support Reset Button: Support Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: Microsoft, Edge and Chrome Certificates: MTBF Certificate from STQC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Weatherproof Standard: IP67 & IK10 Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% RH, non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: 10%–95% RH, non-condensing Power Source: 12 VDC/24 VAC/PoE (802.3af) Power Consumption: Basic: 1.6 W (12 VDC), 1.9 W (24 VAC), 3.1 W (PoE) Max. (H.265 + WDR + Intelligence on + IR on: 7.9 W (12 VDC), 9.5 W (24 VAC), 9.9W (PoE) Casing: Metal + Plastic Dimension: 159.1 mm × 118.1 mm Weight: 910g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
