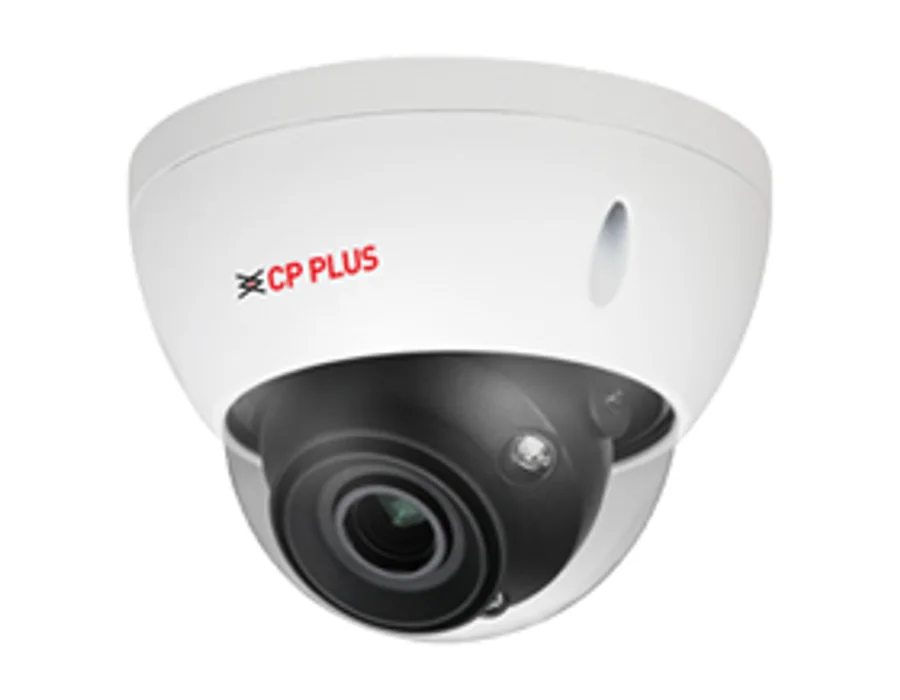

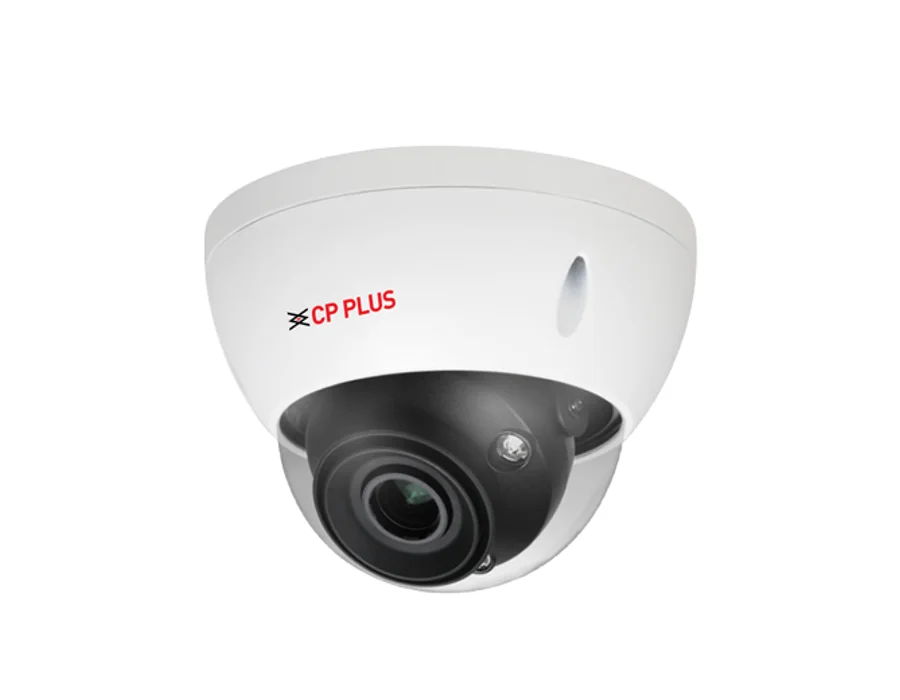

CP Plus CP-UNC-VE41ZL5C-VMDS-Q – 4MP Network IR Vandal Dome Camera - 50Mtr.

4MP Network IR Vandal Dome Camera - 50Mtr. Features 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 × 1520)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, Defog, BLC, HLC, AWB, AGC 2.7mm ~13.5mm Motorized Lens IR Range of 50 Mtr. Support Starlight Technology Support Built-in Mic Micro SD, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 2688(H) × 1520 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 512 MB ROM: 128 MB DORI Distance: Lens W: 44.1 Mtr. (Detect), 17.7 Mtr. (Observe), 8.8 Mtr. (Recognize), 4.4 Mtr. (Identify) Lens T: 144.8 Mtr. (Detect), 57.9Mtr. (Observe), 29.0Mtr. (Recognize), 14.5 Mtr. (Identify) Gain Control(AGC): Auto Lens Type: Motorized vari-focal Max. Aperture: F1.4 Close Focus Distance: 0.8 m IR Number: 3 IR LED IR: IR Range of 50 Mtr. IR Control: Auto, Manual Lens: 2.7mm~13.5mm Lens Mount: M14 Iris Control: Fixed Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Day/Night: Auto(ICR)/Color/B/W Angle of view: H: 109°–30°; V: 56°–17°; D: 131°–35° Back Light Compensation: BLC/ HLC/ WDR(120dB) Bit Rate: H.265: 3 kbps–6144 kbps, H.264: 3 kbps–6144 kbps Bit Rate Control: CBR/VBR AI Instastream: AI Instastream, AI H.264 Stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 × 1520)@1–25/30 fps, 1080P (1920 × 1080)@1-25/30fps, 1.3MP (1280 × 960)@1-25/30fps, 720P (1280 × 720)@1-25/30fps Sub stream 1: D1 (704 × 576/ 704 × 480)@1–25/30 fps, VGA (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)@1-25/30fps Sub stream 2: 1080P (1920 × 1080)@1-25/30fps, 1.3MP (1280 × 960)@1-25/30fps, 720P (1280 × 720)@1-25/30fps, D1 (704 × 576/ 704 × 480)@1–25/30 fps Sub stream 3: D1 (704 × 576/ 704 × 480)@1-25/ Motion Detection: OFF/ON (4 Areas, Rectangular) IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human) People Counting: Tripwire people counting, generating and exporting report (Day/Week/Month/year), People counting in area and queue management, Generating and exporting report (Day/Week/ Month), 4 rules can be set for tripwire, People counting in area and queue management Video Format: PAL/NTSC S/N Ratio: >56 dB Privacy Mask: 4 Area Resolution: 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536/ 2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 ×720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Image Stabilization: Electronic Image Stabilization (EIS) Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Event Alarm: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Image Rotation: 0°/90°/180°/270° Mirror Function: Support Device Search Tool: IP finder Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Faces Face Cutout (Face/ One Inch Photo/ Custom), Snapshot Mode (Real- Time/ Optimized/ Quality Priority), Optimal face snapshot upload, Face attributes extraction including 6 attributes and 8 expressions, Snapshot strategies (real-time snapshot, quality priority and optimization snapshot), Face angle filter, Optimized Duration, Quality Threshold, Snapshot Sensitivity OTA (Over-The-Air): Support SDK and API: Support Ethernet: RJ-45 (10/100 Enhancement Base-T) ROI: Support (4 Areas) Overlay: Privacy Masking, Channel Title, Time Title Location, Custom Title, Face Statistics Audio: Built-in Mic Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Alarm IN: 1 Channels in: wet contact, 5mA 3V–5V DC Alarm Out: 1 Channel out: wet contact, 300mA 12V DC IMD: Support Defog: Support Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption User/Host: 20 (Total bandwidth: 80 M) Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: Microsoft, Edge and Chrome Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/24 VAC/PoE (802.3af)/ePoE Power Consumption: Basic: 1.6 W (12 VDC); 1.9 W (24 VAC); 3.1 W (PoE) Max. (H.265+ WDR+ Intelligence on + IR on): 7.9 W (12 VDC); 9.5 W (24 VAC); 9.9W (PoE) Weatherproof Standard: IP67 & IK10 Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity: ≤95% Reset Button: Support Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: 10%–95% (RH), non-condensing Casing: Metal Dimension: 159.1 mm × 118.1 mm Weight: 910g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
