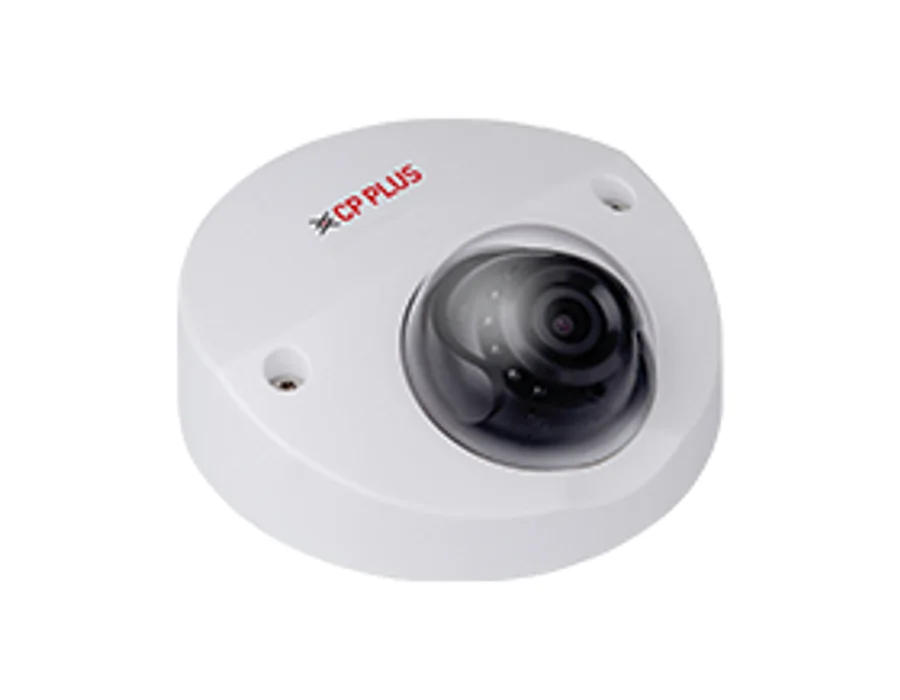

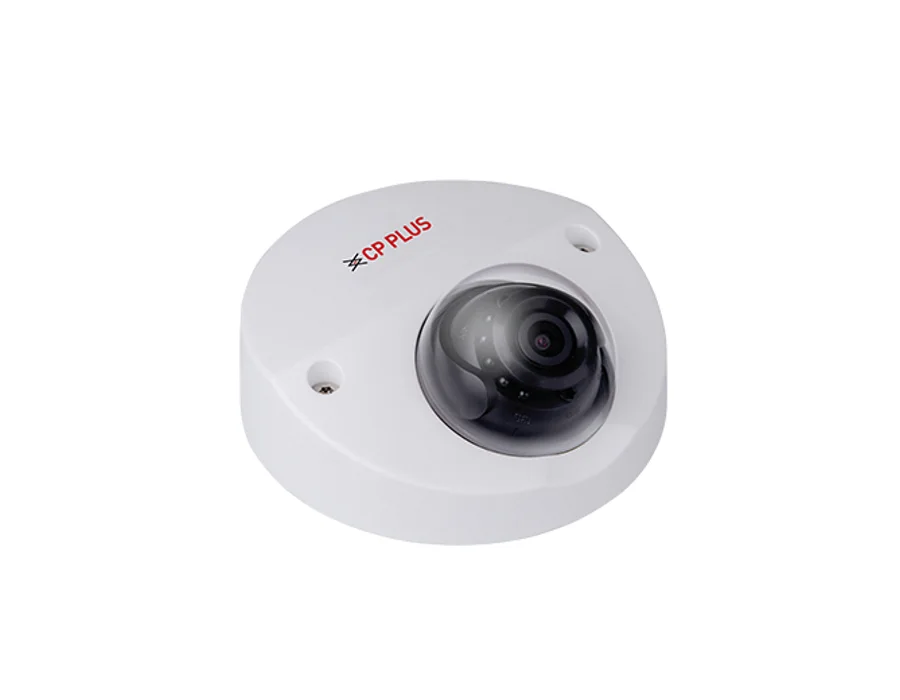

CP Plus CP-UNC-WC41L3C-VMD-LQ – 4MP Dual Light Wedge Camera - 30Mtr.

4MP Dual Light Wedge Camera - 30Mtr. Features 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Max. 4MP (2688 × 1520)@1–25/30fps/ (2560 × 1440)1-25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC 2.8mm Fixed Lens IR Range of 30 Mtr., Warm Light Range of 30 Mtr. Support Built-in Mic, IP67, IK10, Micro SD Card, PoE Support Starlight Technology Specifications Image Sensor: 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Minimum Illumination: 0.006 lux@F1.6 (Color, 30 IRE), 0.0006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 2688 (H) × 1520 (V) Angle Adjustment: Pan: -30° to 30°, Tilt: 0° to 80°, Rotation: 0° to 360° Shutter Speed: Auto/Manual 1/3 s–1/100000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB Lens: 2.8mm Fixed Lens Close Focus Distance: 1.1 m DORI Distance: 63.6 m (Detect), 25.4 m (Observe), 12.7 m (Recognize), 6.4 m (Identify) Iris Type: Fixed Lens Type: Fixed focal Lens Mount: M12 Max. Aperture: F1.6 Gain Control (AGC): Auto/Manual Angle of View: H: 101°, V: 54°, D: 120° IR Number: 4 (Multi-core (IR + warm) light) IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) S/N Ratio: ＞56 dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Resolution: 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296), 2M (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) stream Capability: Quad Stream Frame Rate: Main stream: 4MP (2688 × 1520)@1–25/30fps/ (2560 × 1440)1-25/30fps Sub stream 1: 720p(1280 x 720)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 x 288) @1-25fps/(352 x 240)@1-30fps, D1 (704 × 576)@1-25fps/ (704 × 480)@1-30fps Sub stream 2: VGA (640 x 480)@1-25/30fps, CIF (352 x 288)@1-25fps/ (352 x 240)@1-30fps, D1 (704 × 576)@1-25fps/ (704 × 480)@1-30fps Sub stream 3: D1 (704 × 576)@1fps/ (704 × 480)@1fps Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 areas ROI: Support (4 areas) Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Protocol: IPv4, IPv6, HTTP, HTTPS, SNMP V3, TLS Version 1.2, QOS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, NTP, Multicast, ICMP, IGMP, InstaOn, ONVIF (Profile S & Profile G & Profile T), CGI IntelliSearch: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Format: PAL/NTSC OSD: Camera title, Date & Time Ethernet: RJ-45 (10/100Base-T) SDK and API: Support Day/Night: Auto(ICR)/Color/B/W Alarm Event: No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, audio detection, voltage detection, IMD (Intelligent motion detection), security exception, external alarm User/Host: 6 (Total bandwidth: 36 M) Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Browser: IE, Chrome, Firefox IR Control: Auto, Manual Mirror Function: Support IMD (Intelligent motion detection): IMD+ Audio: Built-in Mic Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Audio Input: 1 channel (RCA port) Audio Output: 1 channel (RCA port) Alarm IN: 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Out: 1 channel out: wet contact, 300 mA 12 VDC Storage: SFTP, Mirco SD card (Max. 512 GB IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Hardware Reset Point: Support Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) Weatherproof Standard: IP67, IK10 Operating Temperature: –40°C to +60°C (–40°F to +140°F) Operating Humidity: ≤95% Storage Temperature: –40°C to +60°C (–40°F to +140°F) Storage Humidity: ≤95% Dimension: 55.0 mm × 108.9 mm Casing: Metal Weight: 410g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
