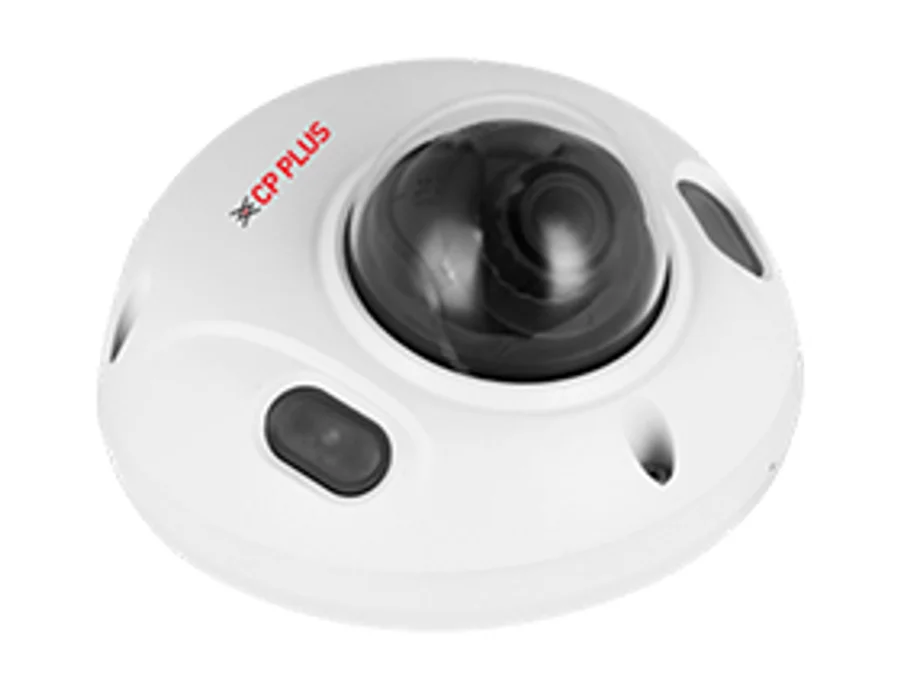

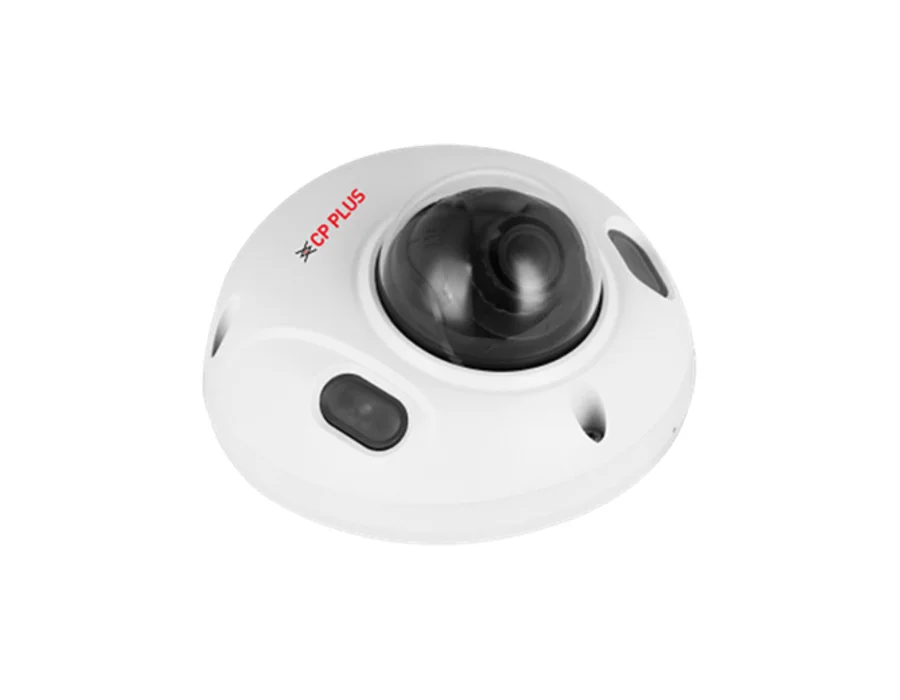

CP Plus CP-UNC-WE21L3C-MDS-Q – 2MP Network IR Wedge Camera - 30Mtr.

2MP Network IR Wedge Camera - 30Mtr. Features 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) Max. 2MP (1920 × 1080)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG WDR(120dB), Day/Night (ICR), 3D NR, Defog, AWB, AGC, BLC, HLC 2.8mm fixed lens (3.6mm optional) IR Range of 30 Mtr. Built-in Mic ,IP67, K10, Micro SD Card, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) Minimum Illumination: 0.006 Lux@F1.6(Color,30IRE), 0.0006 Lux@F1.6(B/W,30IRE) 0 lux (IR on) Effective Pixels: 1920(H) × 1080(V) Shutter Speed: Auto/Manual 1/3 s–1/100000 s Angle Adjustment: Pan: -30°- 30°, Tilt: 0°- 80°, Rotation: 0°- 360° RAM: 512 MB ROM: 128 MB White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Custom area Lens: 2.8mm fixed lens (3.6mm optional) IR Control: Face Priority, Number Plate Priority Gain Control(AGC): Auto/Manual Lens Type: Fixed-focal Iris Type: Fixed Max. Aperture: F1.6 Lens Mount: M12 Close Focus Distance: 0.8 Mtr. Back Light Compensation: BLC/ HLC/ WDR(120 dB) Angle of View: 2.8mm: Horizontal: 107°, Vertical: 57°, Diagonal: 128° 3.6mm: Horizontal: 87°, Vertical: 44°, Diagonal: 105° IR Number: 2 IR Light IR Distance: IR Range of 30 Mtr. S/N Ratio: > 56 dB Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) Bit Rate Control: CBR/ VBR Bit Rate: H.265: 3 kbps–6144 kbps, H.264: 3 kbps–6144 kbps Day/Night: Auto(ICR)/Color/B/W Resolution: 2MP (1920 × 1080), 1.3M (1280 × 960), 1MP (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR/ 2D NR Image Stabilization: Electronic Image Stabilization (EIS) Motion Detection: OFF/ON (4 areas, Rectangular) Privacy Mask: 4 Areas ROI: Support (4 Areas) Audio: Built in Mic Device Search Tool: IP finder OTA (Over-The-Air): Support Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Video Format: PAL/NTSC Overlay: Privacy Masking, Channel Title, Time Title, Location, Custom Title, Face Statistics Defog: Support Image Rotation: 0°/90°/180°/270° IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human), Loitering detection People Counting: Tripwire people counting, generating and exporting report (day/week/month/year), People counting in area and queue management, Generating and exporting report (day/week/ month), 4 rules can be set for tripwire, People counting in area and queue management Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Faces Face Cutout (Face/ One Inch Photo/ Custom), Snapshot Mode (Real-Time/ Optimized/ Quality Priority), Optimal face snapshot upload, Face attributes extraction including 6 attributes and 8 expressions, Snapshot strategies (real-time snapshot, quality priority and optimization snapshot), Face angle filter, Optimized Duration, Quality Threshold, Snapshot Sensitivity Stream Capability: Quad Stream Frame Rate: Main stream: 1080p@(1–25/30 fps), 1.3MP@(1–25/30 fps), 720p@(1–25/30 fps) Sub stream 1: D1@(1–25/30 fps), VGA@(1–25/30 fps), CIF@(1–25/30 fps) Sub stream 2: 1080p@(1–25/30 fps), 1.3MP@(1–25/30 fps), 720p@(1–25/30 fps), D1@(1 25/30 fps) Sub stream 3: D1@(1– 25/30 fps), VGA@(1–25/30 fps), CIF@(1–25/30 fps) Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Reset Button: Support Ethernet: 1 (Built-in M12 port, RJ-45 (Optional) and it supports the network data of 10 M/100 M) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, Allow list/Block list, HTTPS, trusted upgrade, trusted boot, firmware encryption User/ Host: 20 (Total bandwidth: 80 Mbps) Mirror Function: Support Browser: Microsoft, Edge and Chrome Storage: SFTP, NAS, Micro SD card (support max. 512 GB) Certificates: MTBF Certificate from STQC, IEC 61373, IEC 60571 and IEC 60068-2-10, IEC 50155, EN50121 4:2016, EN61000-4-3:2010, EN 50155, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: M12 port support PoE(802.3af), RJ45 port support DC 12V and PoE (802.3af) Power Consumption: Basic: 3.6 W (PoE) Max. (H.265+ WDR+IR on + intelligent): 8.2 W (PoE) Operating Temperature: –30°C to +60°C (–40°F to +140°F) Operating Humidity: ≤95% RH, Non condensing Weatherproof Standard: IP67, IK10 Dimension: 64.8mm × 111.0mm Casing: Metal Weight: 450g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
