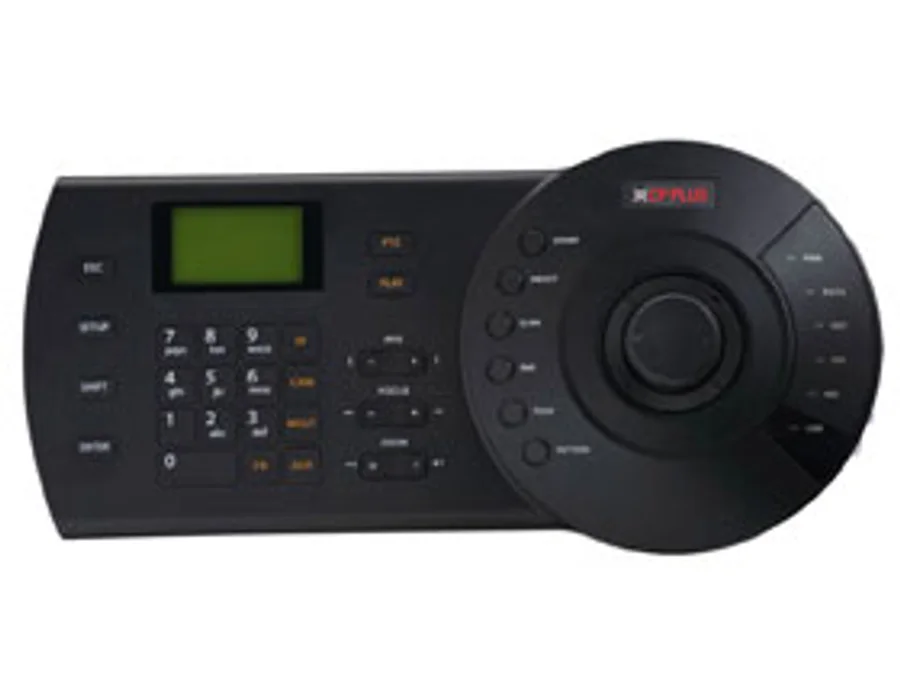

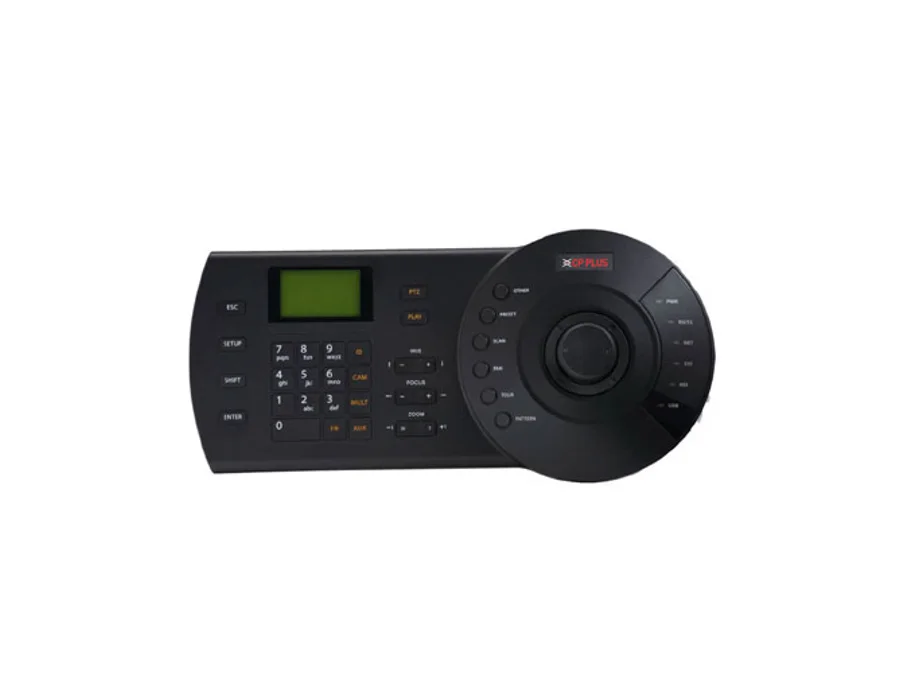

CP Plus CP-UNK-331 – Network Control Keyboard

SKU: CPPLUS-1136 · Model: CP-UNK-331

Price on request

Network Control Keyboard

In Stock

Enquire now

Enquire on WhatsApp

Check delivery & nearest store

Enter your PIN code to find delivery options and a nearby store.

Overview

Network Control Keyboard Features 3 Dimension Joystick Control of PTZ Functions Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control Supports RS485, RS422, USB, RS232 and Network Auxiliary Functions Network Video Server On-Screen Menu & User Operation Procedure Tips Connect KVMS Pro via USB Specifications Display Resolution: LCD, 75.2mm x33.85mm Keyboard Keypanel: Electromechanical Joystick: 3-axis, vector-solving, with twisting, return to-center head Keyboard Communication: Direct Mode, Network Mode Direct Mode: Interface: RS232/RS485 Dimension: 330mmx160(140)mmx37.5(21)mm (W× D×H) (height: 100mm including Power Source: Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/2mA Power Consumption: 5W Weight: 2.5Kg

Full specifications

Weight	2.5Kg
Joystick	3-axis, vector-solving, with twisting, return to-center head
Dimension	330mmx160(140)mmx37.5(21)mm (W× D×H) (height: 100mm including
Direct Mode	Interface: RS232/RS485
Power Source	Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/2mA
Keyboard Keypanel	Electromechanical
Power Consumption	5W
Display Resolution	LCD, 75.2mm x33.85mm
Keyboard Communication	Direct Mode, Network Mode

What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
