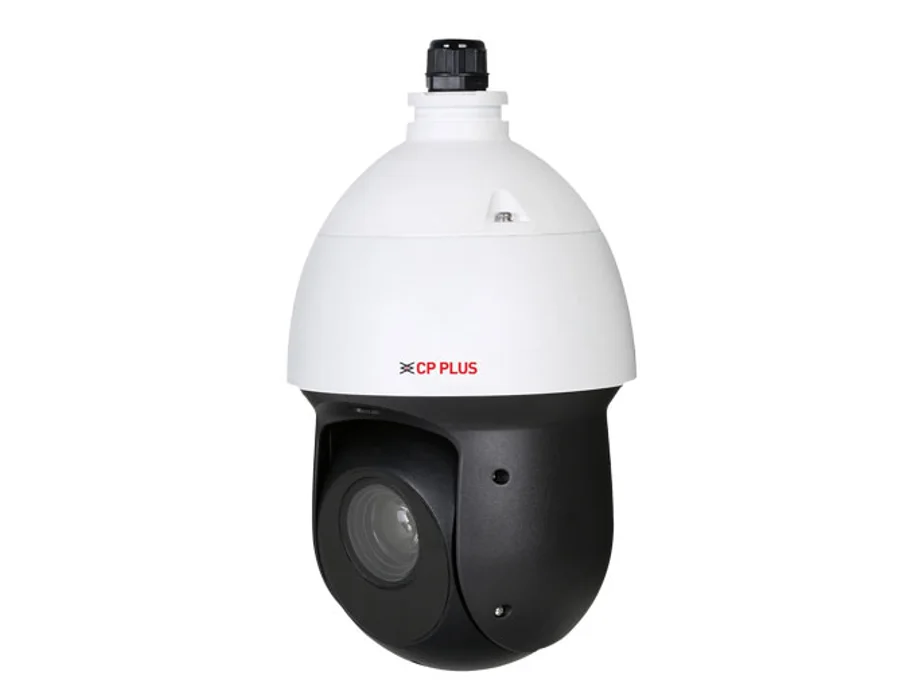

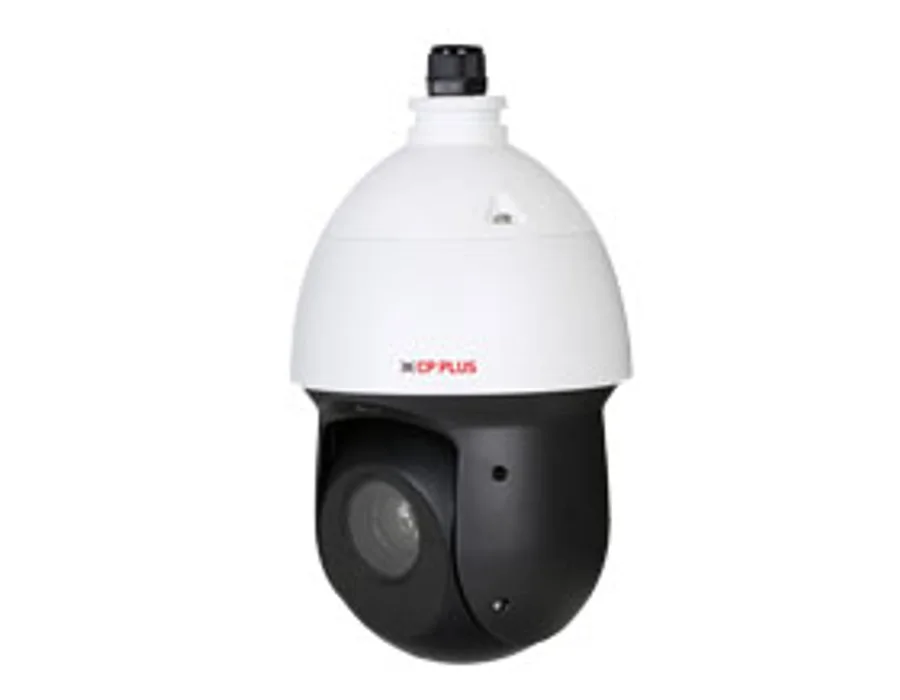

CP Plus CP-UNP-D2521L10-DAQ – 2MP WDR 25x IR Network PTZ Camera- 100 Mtr.

2MP WDR 25x IR Network PTZ Camera- 100 Mtr. Features 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) Max. 2MP (1920 × 1080)@1–25fps Powerful 25x Optical and 16x Digital zoom WDR(120dB), Day/Night(ICR), 2D NR/ 3D NR, Defog, AWB, AGC, BLC, HLC Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 100 Mtr., IP66, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) Effective Pixels: 1920 (H) × 1080 (V) Electronic Shutter: 1/1 s–1/30,000 s Max. Aperture: F1.6–F3.5 RAM: 512 MB ROM: 256 MB Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR light) White Balance: Auto, Indoor, Outdoor, Tracking, Manual, Sodium lamp, Natural light, Street lamp S/N Ratio: ≥55 dB Focus Control: Auto, Semi-auto, Manual Lens: 4.8 mm–120 mm Close Focus Distance: 0.1 m–1.5m Angle of View: H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° Iris Control: Auto, Manual DORI Distance: 1655.2 mm (Detect), 653.8 mm (Observe), 331.0 mm (Recognize), 165.5 mm (Identify) Back Light Compensation: BLC/ HLC/ WDR(120dB) IR Control: Zoom Prio, Manual, Auto IR Number: 3 IR Day/Night: Auto (ICR)/Color/B/W IR: IR Range of 100 Mtr. Video Format: PAL Bit Rate: H265: 86 kbps–5632 kbps, H264: 256 kbps–8192 kbps Overlay: Channel Title, Time Title, OSD Info (PTZ Coordinate, Zoom, North, Pattern, Temperature, ; Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay Gain Control (AGC): Auto, Manual Resolution: 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576), CIF (352 x 288) Pan/Tilt Angle: Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180° Optical Zoom: 25× Digital Zoom: 16x Image Rotation: 180° Defog: Electronic Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Frame Rate: Main stream: 2MP (1920 × 1080)@1–25fps, 720p, D1@1–25fps ; Sub stream 1: D1/CIF@1–25fps, ; Sub stream 2: 2MP (1920 × 1080)@1–25fps, 720p, D1@1–25fps ; Sub stream 3: D1/CIF@1–25fps, ; Sub stream 4: D1/CIF@1–25fps Bit Rate Control: CBR/VBR IMD: Support Noise Reduction: 2D NR, 3D NR Stream Capability: Penta stream Idle Motion: Pattern, Preset, Scan, Tour Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, ; QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and ; v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Device Search Tool: IP finder OTA (Over-The-Air): Support SDK and API: Support Power-off Memory: Support Manual Speed: Pan: 0.1°–80°/s, Tilt: 0.1°–80/s Preset Speed: Pan: 80°/s, Tilt: 80°/s Event Alarm: Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, ; Security Warning, Audio Detection, AI Event Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Privacy Mask: Support IVS (Perimeter Protection): Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking ; Detection, Crowd Gathering, Missing Object, Loitering Detection, Face Detection, IMD Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, ; WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted ; upgrade, Trusted boot, Firmware encryption Audio In: 1 Channel Audio Out: 1 Channel Alarm IN: 2 (on-off value input: 0–5 VDC) Alarm Out: 1 Channel Reset Button: Support Weatherproof Standard: IP66, TVS 6000V lightning proof, Surge protection, Voltage transient protection Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC (PoE), 3 A ± 10% Power Consumption: Basic: 6.5 W Max.: 17.25 W Operating Temperature: –40 °C to +65 °C Operating Humidity: ≤ 95% (RH) Dimension: 270.4 mm × 160.0 mm Weight: 2400g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
