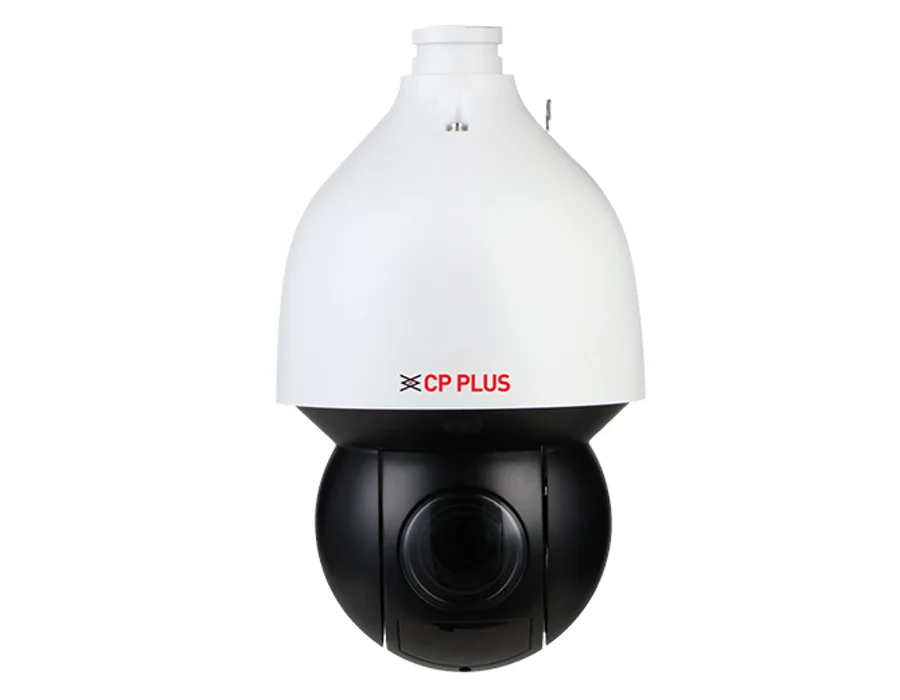

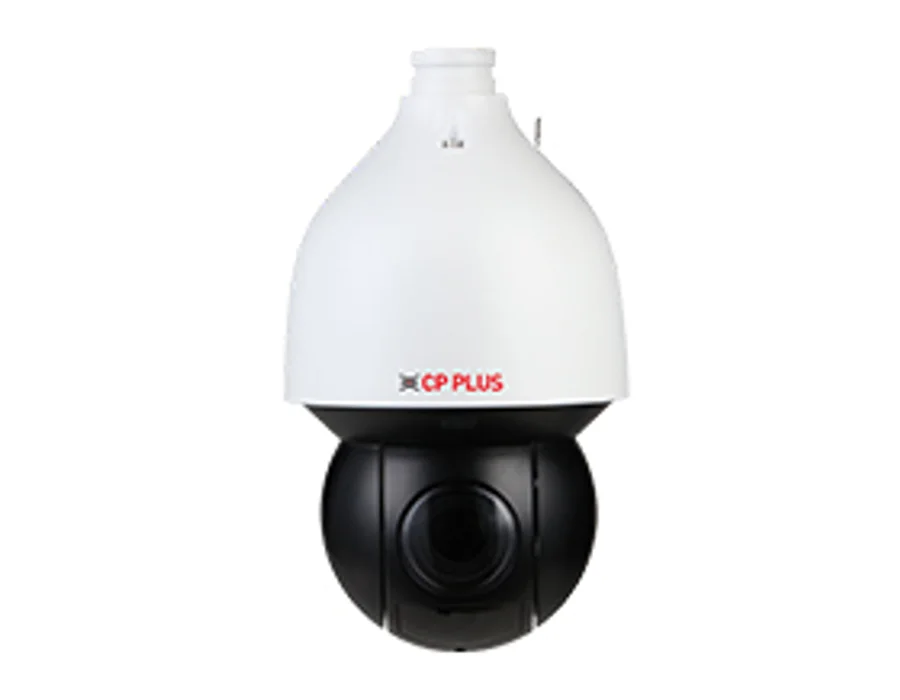

CP Plus CP-UNP-E3221L18-DAQ – 2MP WDR 32x IR Network PTZ Camera- 180 Mtr.

2MP WDR 32x IR Network PTZ Camera- 180 Mtr. Features 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) Max. 2MP (1920 × 1080)@1–25fps Powerful 32x Optical and 16x Digital zoom WDR(120dB), 2D NR/ 3D NR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC Support Penta stream Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 180 Mtr. Support PoE+, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) Effective Pixels: 1920 (H) × 1080 (V) Max Aperture: F1.6–F4.0 S/N Ratio: ≥55 dB RAM: 512 MB ROM: 256 MB Minimum IR: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on) Focal Length: 4.5 mm–144 mm Focus Control: Auto, semi-auto, manual White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp Angle of View: H: 58.4°–3.0°, V: 33.4°–1.7°, D: 66.4°–3.4° Close Focus Distance: 0.1 m–1.5 m Iris Control: Auto, Manual Resolution: 2MP (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288) DORI Distance: 1986 m (Detect), 785 m (Observe), 398 m (Recognize), 198 m (Identify) Electronic Shutter: 1/1 s–1/30,000 s Back Light Compensation: BLC/ HLC/ WDR(120dB) Optical Zoom: 32× Digital Zoom: 16x Bit Rate: H265: 188 kbps–6400 kbps, H264: 216 kbps–8192 kbps Image Rotation: 180° Pan/ Tilt Range: Pan: 0° to 360°, Endless, Tilt: –15° to +90°, Auto flip 180° Power-off Memory: Support IMD: Support Day/Night: Auto (ICR)/Color/B/W Video Format: PAL OSD: Channel Title, Time Title, OSD Info (PTZ Coordinate Zoom North, Pattern Temperature, Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay Manual Speed: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s Noise Reduction: 2D NR/ 3D NR Preset Speed: Pan: 400°/s, Tilt: 300°/s Image Stabilization: Electronic Image Stabilization (EIS) Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Privacy Mask: Up to 24 areas can be set, with up to 8 areas in the same view Defog: Electronic Idle Motion: Pattern, Preset, Scan, Tour Stream Capability: Penta stream IR Number: 4 IR IR: 180 Mtr. IR Control: Zoom Prio, Manual, Smart IR, Off Gain Control (AGC): Auto, Manual Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream 1) Bit Rate Control: CBR/VBR Frame Rate: Main stream: 2MP (1920 × 1080)@1–25fps, 720p (1280 x 720)@1–25fps, D1 (704 x 576)@1 25fps Sub stream 1: D1 (704 x 576)@1–25fps, CIF (352 x 288)@1–25fps Sub stream 2: 2MP (1920 × 1080)@1–25fps, 720p (1280 x 720)@1–25fps, D1 (704 x 576)@1 25fps Sub stream 3: D1 (704 x 576)@1–25fps Sub stream 4: D1 (704 x 576)@1–25fps Motion Detection: Support Audio Compression: PCM, G.711A, G.711MU, G.726, MPEG2- Layer2, G.722.1, AAC Auto Tracking: Support ROI: Support Ethernet: 1 × RJ-45 (10/100 Base-T) Audio Input: 1 Channel Audio Output: 1 Channel IVS (Perimeter Protection): Crossing Virtual Fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, IMD Device Search Tool: IP finder OTA (Over-The-Air): Support SDK and API: Support Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Alarm I/O: 2 IN/ 1 OUT Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Event Alarm: Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, Security Warning, Audio Detection, AI Event Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Reset Button: Support Face Detection: Face detection, Face Enhancement, Face Cutout(Face/ One Inch Photo), Snapshot Mode (Real- Time/ Quality Priority), Optimal face snapshot upload, Quality Threshold Browser: IE, Chrome, Firefox Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 24 VDC, 2.5 A ± 25% PoE+ (802.3at) Power Consumption: Basic: 8 W Max: 18.5W (illuminator on) User/ Host: 20 (total bandwidth: 64 Mbps) Weatherproof Standard: IP67, IK10, TVS 6000V lightning proof, surge protection, voltage transient protection Operating Temperature: –40°C to +70°C Operating Humidity: ≤ 95% (RH) Dimension: 332 mm × 190 mm Weight: 4600g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
