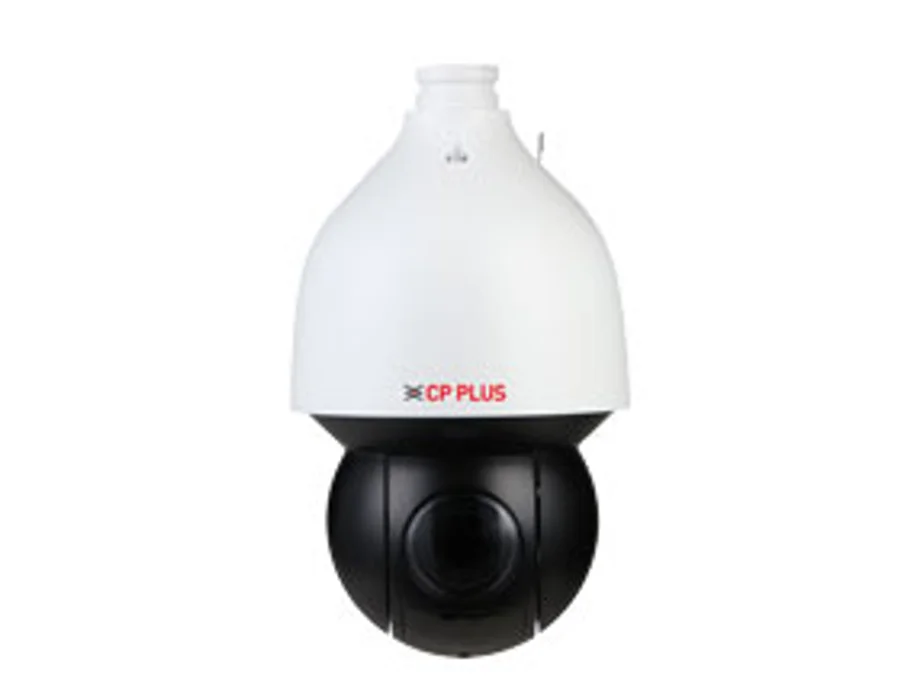

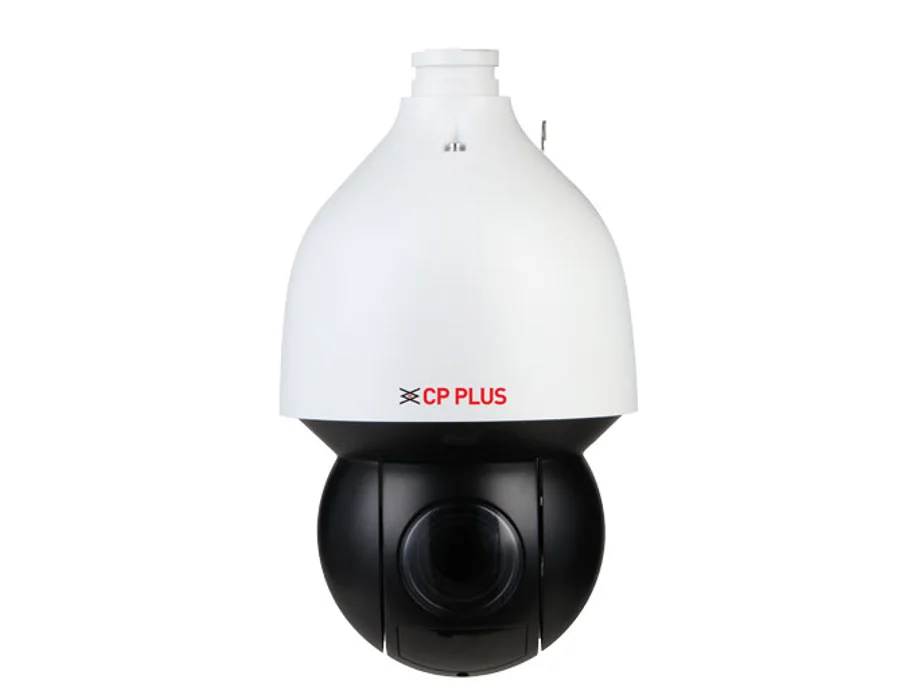

CP Plus CP-UNP-E3241L18-DAQ – 4MP WDR 32x IR Network PTZ Camera- 180 Mtr.

4MP WDR 32x IR Network PTZ Camera- 180 Mtr. Features 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) Max. 4MP (2688 x 1520)@1-25fps Instastream, H.265, H.264, H.264B, H.264H, MJPEG Support Triple stream Powerful 32x Optical and 16x Digital zoom WDR(120dB), 2D NR/ 3D NR, Day/Night(ICR), ROI, Defog, AWB, BLC Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 180 Mtr.. Support PoE, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) Effective Pixels: 2688(H) × 1520(V) Max. Aperture: F1.6–F4.0 RAM: 512 MB ROM: 256 MB Minimum Illumination: Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on) Focus Control: Auto, Semi-auto, Manual S/N Ratio: ≥55 dB White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp Angle of View: H: 55.8°–2.4°, V: 31.9°–1.3°, D: 63.7°–2.7° Focal Length: 4.8 mm–154 mm Close Focus Distance: 0.8 m–5.0 m Iris Control: Auto, Manual Electronic Shutter: 1/1 s–1/30,000 s DORI Distance: 2,124 m (Detect), 839 m (Observe), 425 m (Recognize), 212 m (Identify) Video Format: PAL Overlay: Channel Title, Time Title, OSD Info (PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay Back Light Compensation: BLC/ HLC/ WDR(120dB) Pan/ Tilt Range: Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180° Optical Zoom: 32× Digital Zoom: 16x Bit Rate: H265: 16 Kbps–7424 Kbps, H264: 40 Kbps–8192 Kbps Image Rotation: 180° Resolution: 4MP (2688 × 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), CIF (352 × 288) Day/Night: Auto (ICR)/Color/B/W Manual Speed: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s Ethernet: RJ-45 (10/100 Base-T) Preset Speed: Pan: 400°/s, Tilt: 300°/s Noise Reduction: 2D NR, 3D NR Power-off Memory: Support Privacy Mask: Up to 24 areas can be set, with up to 8 areas in the same view Image Stabilization: Electronic Image Stabilization (EIS) Defog: Support Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Idle Motion: Preset, Pattern, Tour, Scan IR Number: 4 IR IR: 180 Mtr. IR Control: Zoom Priority, Manual, Smart IR stream Capability: Triple stream Gain Control (AGC): Auto/Manual Video Compression: IInstastream, H.265, H.264, H.264B, H.264H, MJPEG (Sub Stream) Bit Rate Control: CBR/VBR Frame Rate: Main stream: 4MP@1-25fps, 1080p,720p@1-50 fps Sub stream 1: D1 (704 × 576)@1-25fps, VGA (640 × 480) @1-25fps, CIF(352 × 288)@1-25fps Sub stream 2: 720P (1280 × 720)@1-25fps Motion Detection: Support Audio Compression: AAC, PCM, G.711A, G.711MU, G.726, MPEG2-Layer2, G.722.1 ROI: Support Event Alarm: Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, Security Warning, Audio Detection, AI Event Two-way audio: Support Auto Tracking: Support Audio In: 1 Channel Audio Out: 1 Channel Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Alarm IN: 2 Channel Alarm Out: 1 Channel Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Device Search Tool: IP finder OTA (Over-The-Air): Support IVS (Perimeter Protection): Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, IMD Reset Button: Support IMD: Support Storage: SFTP, NAS, Mirco SD card (Max. 512GB) User/Host: 20 (Total Bandwidth: 64 M) Browser: IE, Chrome, Firefox, Safari Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 24 VDC, 2.5 A (± 25%) PoE +(802.3at) Power Consumption: Basic: 8W Max.: 19W (IR + PTZ working) Weatherproof Standard: IP67, IK10, TVS 6000 V lightning proof, Surge protection, voltage transient protection Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity: ≤ 95% (RH) Dimension: 331.9 mm × 190.4 mm Weight: 4600g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
