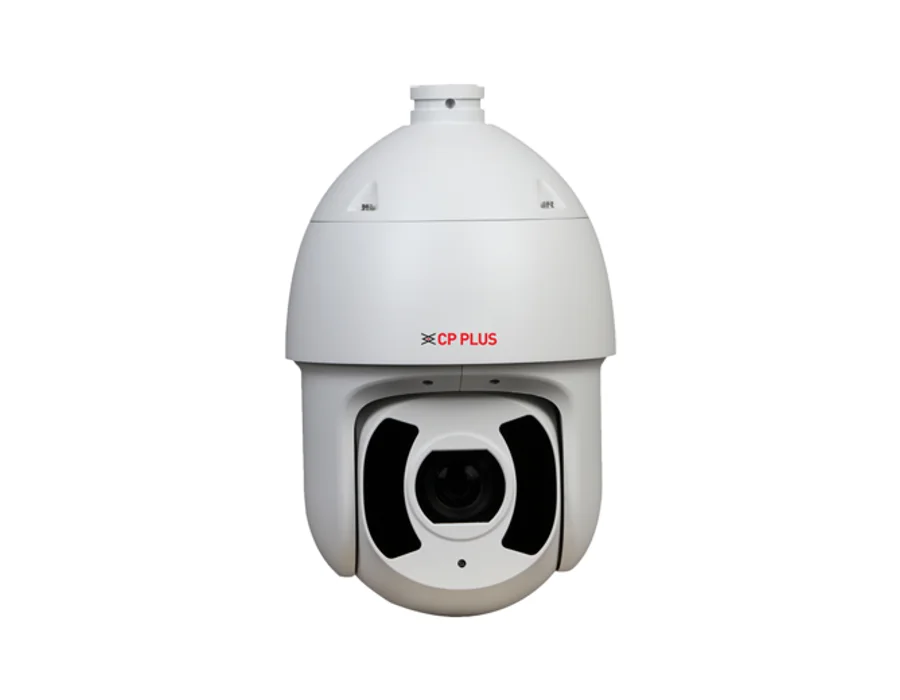

CP Plus CP-UNP-F4521L30-DPQ – 2MP 45x Full HD Network IR PTZ Camera– 300 Mtr.

2MP 45x Full HD Network IR PTZ Camera– 300 Mtr. Features 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeter) Max. 2MP (1920 × 1080)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Penta Stream Powerful 45x Optical and 16x Digital zoom WDR(120dB), Day/Night(ICR), 2D NR/ 3D NR, ROI, Defog, AWB, AGC, BLC, HLC, Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 300 Mtr. Support PoE+, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter) Effective Pixels: 1920(H) x 1080(V) Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux@F1.6 (illuminator on) Focus Control: Auto/Semi-Auto/Manual RAM: 512 MB ROM: 256 MB White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp Lens: 3.95 mm–177.75 mm Max. Aperture: F1.6–F4.95 Angle of view: H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° Close Focus Distance: 0.1 Mtr.–1 Mtr. Iris Control: Auto/Manual DORI Distance: 2451.7 Mtr. (Detect), 972.9 Mtr. (Observe), 490.3 Mtr. (Recognize), 245.2 Mtr. (Identify) Electronic Shutter: 1/1 s–1/30,000 s Back Light Compensation: BLC/ HLC/ WDR(120dB) S/N Ratio: ≥ 55 dB Optical Zoom: 45× Digital Zoom: 16x Image Rotation: 180° Pan & Tilt Range: Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180° Power-off Memory: Support Manual Speed: Pan: 0.1° ~260° /s, Tilt: 0.1° ~120° /s Preset Speed: Pan: 0.1°/s~300°/s, Tilt: 0.1°/s~200°/s Image Stabilization: Electronic (EIS) Privacy Masking: Up to 24 Areas can be set, with up to 8 areas in the same view Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Idle Motion: Preset, Tour, Pattern, Scanning Defog: Electronic IR Distance: IR Range of 300 Mtr. IR Number: 6 IR IR Control: Zoom Prio, Manual, Smart IR, Off Day/Night: Auto (ICR)/Color/B/W Gain Control: Auto/Manual Video Format: PAL Overlay: Channel Title, Time Title, OSD Info (PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay Video Compression: Instastream, H.265, H.264, H.264H, H.264B MJPEG (Sub Stream) Stream Capability: Penta Stream Frame Rate: Main stream: 2MP (1920 × 1080)@1–25fps, 1MP (1280 × 720)@1–25fps, D1 (704 × 576) @1–25fps Sub stream 1:D1/CIF @(1–25 fps) Sub stream 2: 2MP (1920 × 1080)@1–25fps, 1MP (1280 × 720)@1–25fps, D1 (704 × 576) @1–25fps Sub stream 3:D1 @(1–25 fps) Sub stream 4:D1 @(1–25 fps) Resolution: 2MP (1920 × 1080), 1MP (1280 × 720), D1 (704 × 576), CIF (352 × 288) Bit Rate: H265: 86 kbps–5632 kbps, H264: 216 kbps–8192 kbps Bit Rate Control: CBR/VBR Motion Detection: Support ROI: Support Noise Reduction: 2D NR/3D NR Audio In: 1 channel Audio Out: 1 channel Audio Compression: PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, AAC Auto Tracking: Support Alarm IN: 7 Channel Alarm Out: 2 Channel User/Host: 20 (total bandwidth: 64 Mbps) Ethernet: 1 × RJ-45 (10/100 Base-T) Tracking Trigger Event: Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Loitering Detection Reset Button: Support Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Event Alarm: Motion/tampering detection, Defocus Detection, Audio detection, SD Card Exception(No SD card, Low SD card space, SD card error), Network Exception (Offline, IP Conflict), External Alarm, IMD, Security Warning, AI Events Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn IVS (Perimeter Protection): Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, IMD Face Detection: Face detection, Face Enhancement, Face Cutout (Face/ One Inch Photo), Snapshot Mode (Real-Time/ Quality Priority), Optimal face snapshot upload, Quality Threshol Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Device Search Tool: IP finder OTA (Over-The-Air): Support Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: Microsoft Edge and Chrome Weatherproof Standard: IP67, IK10, TVS 8000V lightning proof, surge protection, voltage transient protection Hardware Reset Point: Support Certificates: MTBF Certificate from STQC, EMI/EMC, ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS Power Source: 24 VDC, 2.5 A ± 25% PoE+ (802.3at) Power Consumption: 24 VDC, 2.5 A ± 25%: Basic: 13 W; Max: 25 W (illuminator + PTZ) PoE+ (802.3at): Basic: 13 W; Max: 25 W (illuminator + PTZ) Operating Temperature: –40 °C to +70 °C Operating Humidity: ≤ 95% RH, Non condensing Casing: Metal Dimension: 337.4mm × 209mm Weight: 5900g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
