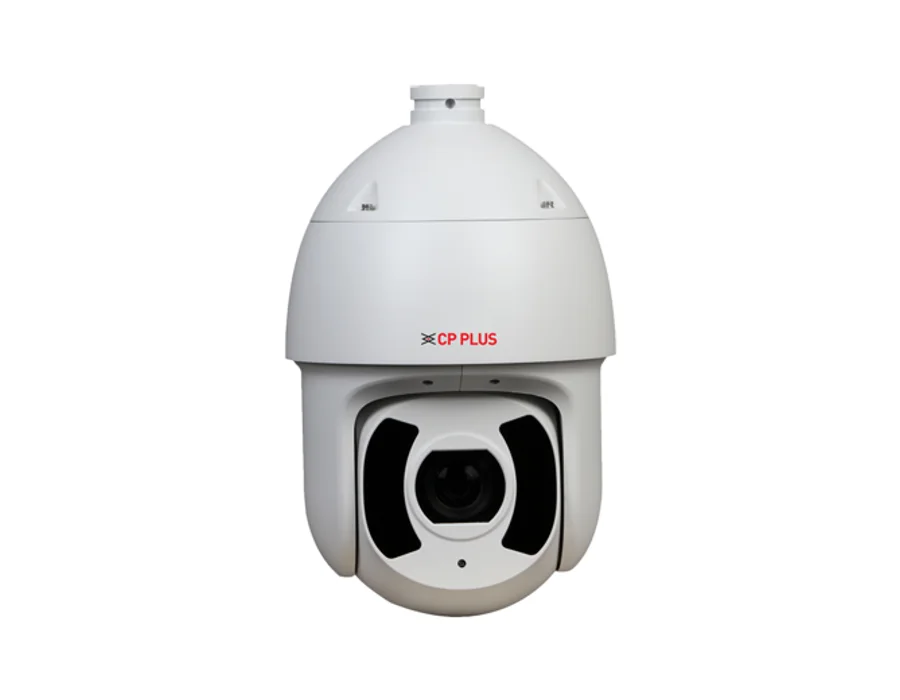

CP Plus CP-UNP-F4541L30-DPQ – 4MP WDR 45x IR Network PTZ Camera- 300 Mtr.

4MP WDR 45x IR Network PTZ Camera- 300 Mtr. Features 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) Max. 4MP (2688 x 1520/ 2560 x 1440)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple Stream Powerful 45x Optical and 16x Digital zoom WDR(120dB), 2D NR/ 3D NR, Day/Night(ICR), ROI, Defog, AWB, BLC, HLC Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 300 Mtr. Support PoE+, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) Effective Pixels: 2688 (H) x 1520 (V) Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux@F1.6 (IR on) Electronic Shutter: 1 s–1/30000 s RAM: 512 MB ROM: 256 MB White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp Lens: 3.95 mm–177.75 mm Max. Aperture: F1.6–F4.95 Angle of View: H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° Close Focus Distance: 0.1 m–1 m Iris Control: Auto, Manual DORI Distance: 2,451.7 m (Detect), 972.9 m (Observe), 490.3 m (Recognize), 245.2 m (Identify) Focus Control: Auto, Semi-auto, Manual Back Light Compensation: BLC/ HLC/ WDR(120dB) Overlay: Channel Title, Time Title, OSD Info (PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay Video Format: PAL S/N Ratio: ≥55 dB Optical Zoom: 45× Digital zoom: 16x Image Rotation: 180° Pan/Tilt Angle: Pan: 0° to 360°, endless, Tilt: –20° to +90°, Auto flip 180° Power-off Memory: Support Manual Speed: Pan: 0.1°/s~260°/s, Tilt: 0.1°/s~120°/s Preset Speed: Pan: 0.1°/s~300°/s, Tilt: 0.1°/s~200°/s Image Stabilization: Electronic Image Stabilization (EIS) Privacy Masking: Up to 24 areas can be set, with up to 8 areas in the same view Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Idle Motion: Pattern, Preset, Scan, Tour IR: IR Range of 300 Mtr. IR Number: 6 IR IR Control: Zoom Prio, Manual, Smart IR, Off Day/Night: Auto (ICR)/Color/B/W Gain Control: Auto, Manual Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream1) Resolution: 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 ×1080), 720p (1280 × 720), D1, VGA, CIF Stream Capability: Triple Stream Frame Rate: Main stream: 4MP (2688 x 1520/ 2560 x 1440)@1–25fps, 3MP (2304 x 1296)@1–25fps, 2MP (1920 × 1080)@1–25fps, 720p, Sub stream 1: D1/VGA/CIF@1–25 fps Sub stream 2: 720P@1–25fps Defog: Electronic Bit Rate: H265: 86 kbps–8192 kbps, H264: 216 kbps–8192 kbps Bit Rate Control: CBR/VBR Motion detection: Support RS-485: 1 Channel ROI: Support Audio In: 1 Channel Audio Out: 1 Channel Audio Compression: PCM, G.711A, G.711MU, G.726, MPEG2-Layer2, G.722.1 Auto Tracking: Support Alarm IN: 7 Channels (on-off value input: 0–5 VDC) Alarm Out: 2 Channels Event Alarm: Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, Security Warning, Audio Detection, AI Event Noise Reduction: 2D NR/ 3D NR Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Reset Button: Support Device Search Tool: IP finder OTA (Over-The-Air): Support SDK and API: Support IVS (Perimeter Protection): Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, IMD Face Detection: Face detection, Face Enhancement, Face Cutout (Face/ One Inch Photo), Snapshot Mode (Real-Time/ Quality Priority), Optimal face snapshot upload, Quality Th User/Host: 20 (Total bandwidth: 64 M) Ethernet: RJ-45 (10/100 Base-T) Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 24 VDC, 2.5 A ± 25% PoE+ (802.3at) Power Consumption: 24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (IR + PTZ) PoE+ (802.3at): Basic: 13 W, Max: 25 W (IR + PTZ) Weatherproof Standard: IP67, IK10, TVS 6000 V lightning proof, Surge protection, Voltage transient protection Browser: Microsoft Edge, Chrome, Firefox Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity: ≤ 95% (RH) Dimension: 337.4 mm × 209 mm Weight: 5900g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
