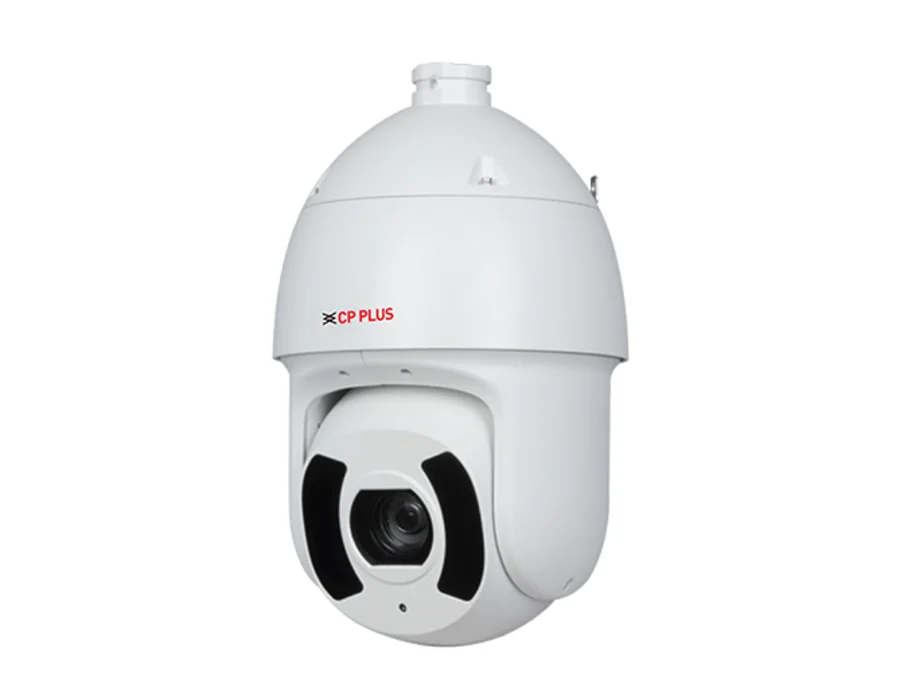

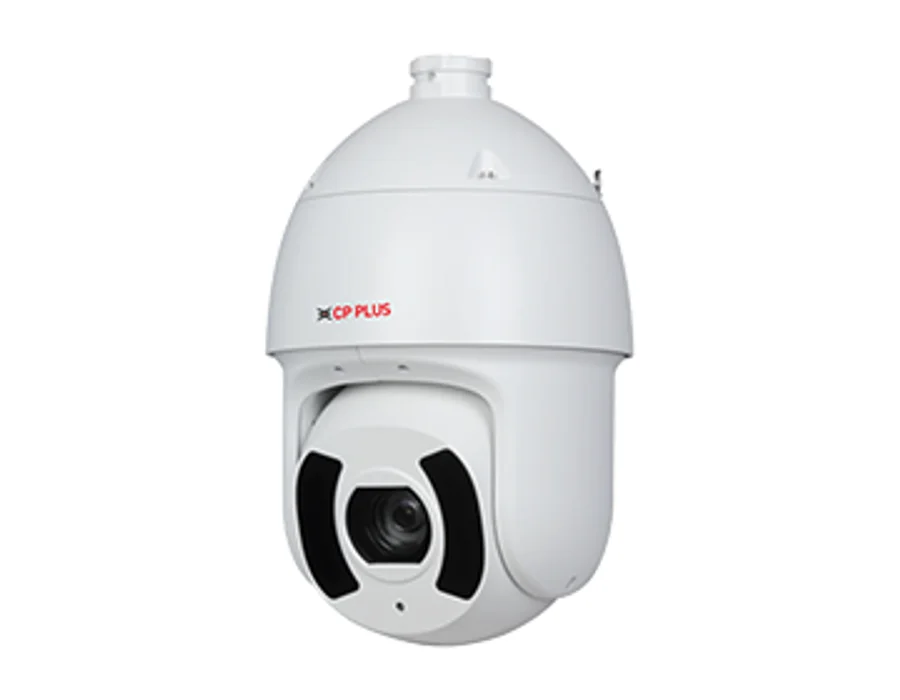

CP Plus CP-UNP-F4551L30-DPQ – 5MP WDR 45x IR Network PTZ Camera- 300 Mtr.

5MP WDR 45x IR Network PTZ Camera- 300 Mtr. Features 1/2.8” 5MP PS CMOS Image sensor (0.9071 centimeter) Max. 5MP (2960 × 1668)@1–25fps Powerful 45x Optical and 16x Digital zoom AI Instastream, Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple Stream WDR(120dB), 2D NR/ 3D NR, Day/Night(ICR), ROI, Defog, AWB, AGC, BLC, HLC Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 300 Mtr. Support PoE+, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 5MP PS CMOS Image sensor (0.9071 centimeter) Effective Pixels: 2960(H) x 1668(V) Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux@F1.6 (IR on) Focus Control: Auto/Semi-Auto/Manual RAM: 512 MB ROM: 256 MB White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural, Street lamp Lens: 3.95 mm–177.75 mm Max. Aperture: F1.6–F4.95 Angle of View: H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° Close Focus Distance: 0.1 Mtr. – 1 Mtr. Iris Control: Auto/Manual DORI Distance: 2451.7 Mtr. (Detect), 972.9 Mtr. (Observe), 490.3 Mtr. (Recognize), 245.2 Mtr. (Identify) Electronic Shutter: 1/1 s–1/30,000 s Back Light Compensation: BLC/ HLC/ WDR(120dB) S/N Ratio: ≥ 55 dB Optical Zoom: 45× Digital zoom: 16x Image Rotation: 180° Pan & Tilt Range: Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180° Power-off Memory: Support Manual Speed: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s Preset Speed: Pan: 0.1°/s~300°/s, Tilt: 0.1°/s~200°/s Image Stabilization: Electronic (EIS) Privacy Masking: Up to 24 Areas can be set, with up to 8 areas in the same view Special Features: Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan Idle Motion: Preset, Tour, Pattern, Scanning Defog: Electronic IR: IR Range of 300 Mtr. IR Number: 6 IR IR Control: Zoom Prio, Manual, Auto, Off Day/Night: Electronic/ICR (Auto/Color/B/W) Gain Control: Auto/Manual Video Format: PAL OSD: Camera title, Date & Time, PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Loca-tion, Input Text, Text Alignment, Privacy Masking, Time Title, Font Properties, Custom Title, Exception Overlay Video Compression: AI Instastream, Instastream, H.265, H.264, H.264H, H.264B MJPEG (Sub Stream) Stream Capability: Triple Stream Resolution: 5MP (2960 × 1668), 4MP (2688 x 1520)/ (2560 x 1440), 3MP (2304 x 1296), 2MP (1920 × 1080), 1.3MP (1280 x 960), 720p (1280 × 720), D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) Frame Rate: Main stream: 5MP (2960 × 1668)@1–25fps, 4MP (2688 x 1520)@1–25fps/ (2560 x 1440)@1 25fps, 3MP (2304 x 1296)@1–25fps, 2MP (1920 × 1080)@1–25fps, 1.3MP (1280 x 960)@1 25fps, 720p (1280 × 720)@1–25fps Sub stream 1: D1 (704 x 576)@1–25fps, VGA (640 x 480) @1–25fps, CIF (352 x 288)@1–25fps Sub stream 2: 720p (1280 × 720)@1–25fps Bit Rate: H.265:1024-7168 (Kb/s), H.264:2560-8192 (Kb/s) Bit Rate Control: CBR/VBR Motion Detection: Support ROI: Support Noise Reduction: 2D NR, 3D NR Analog Output: 1 Channel (CVBS output, BNC) Audio In: 1 Channel Audio Out: 1 Channel Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC, MPEG2-Layer2, G722.1 Alarm IN: 7 Channel Alarm Out: 2 Channel Alarm Linkage: Capture, Recording, send email, Preset, Tour, Pattern, Alarm digital output Tracking Trigger Event: Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Loitering Detection Alarm Event: Motion/tampering detection, Defocus Detection, Audio detection, SD Card Exception (No SD card, Low SD card space, SD card error), Network Exception (Offline, IP Conflict), External Alarm, IMD, Security Warning, AI Events User/Host: 20 (total bandwidth: 64 Mbps) Ethernet: 1 × RJ-45 (10/100 Base-T) Protocol: IPv4, IPv6, HTTP, HTTPS, ARP, RTSPS, SMTP, SFTP, DHCP, DNS, UPnP, NTP, NFS, PPPoE, SNMP V3, TLS Version 1.2, TLS Version 1.3, ICMP, IGMP, RTMP, ONVIF (Profile S, Profile G, Profile T), Unicast, Multicast Device Search Tool: IP finder OTA (Over-The-Air): Support SDK and API: Support IVS (Perimeter Protection): Crossing Virtual Fence, Tripwire, Intrusion, Object Abandon, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, Calibration Verification, Face Detection Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, Allow list/Block list, HTTPS, trusted upgrade, trusted boot, firmware encryption RS-485: 1(Bit range: 1200 bps–9600 bps) Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Browser: Microsoft Edge and Chrome Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Weatherproof Standard: IP67, IK10, TVS 6000 V lightning proof, surge protection, voltage transient protection Power Source: 24 VDC, 2.5 A ± 25% PoE+ (802.3at) Power Consumption: Basic: 13 W Max: 25 W Operating Temperature: –40 °C to +70 °C Operating Humidity: ≤ 95% RH, Non condensing Casing: Metal Dimension: 337.4mm × 209mm Weight: 5900g
