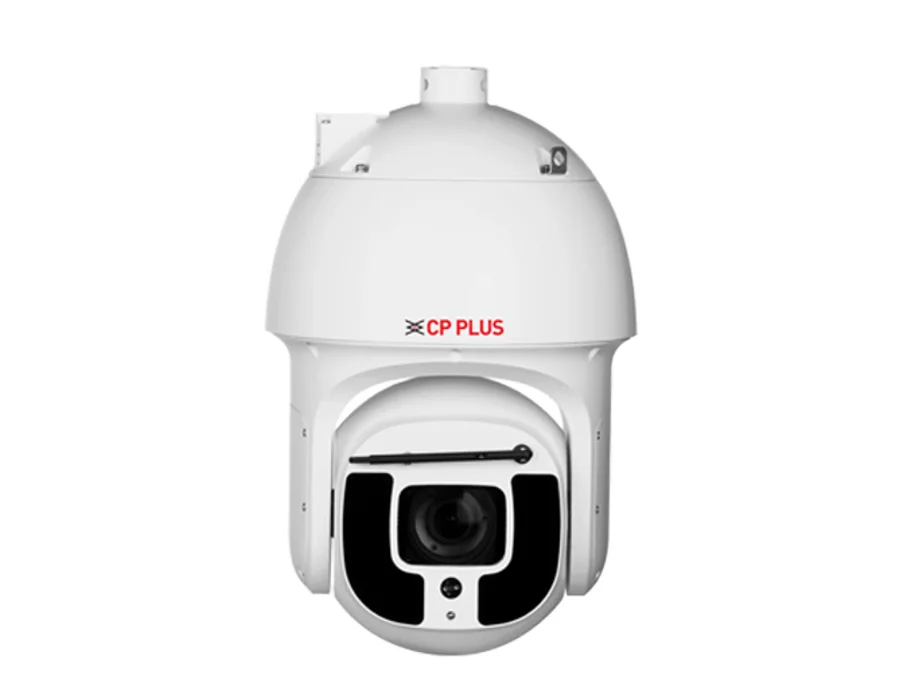

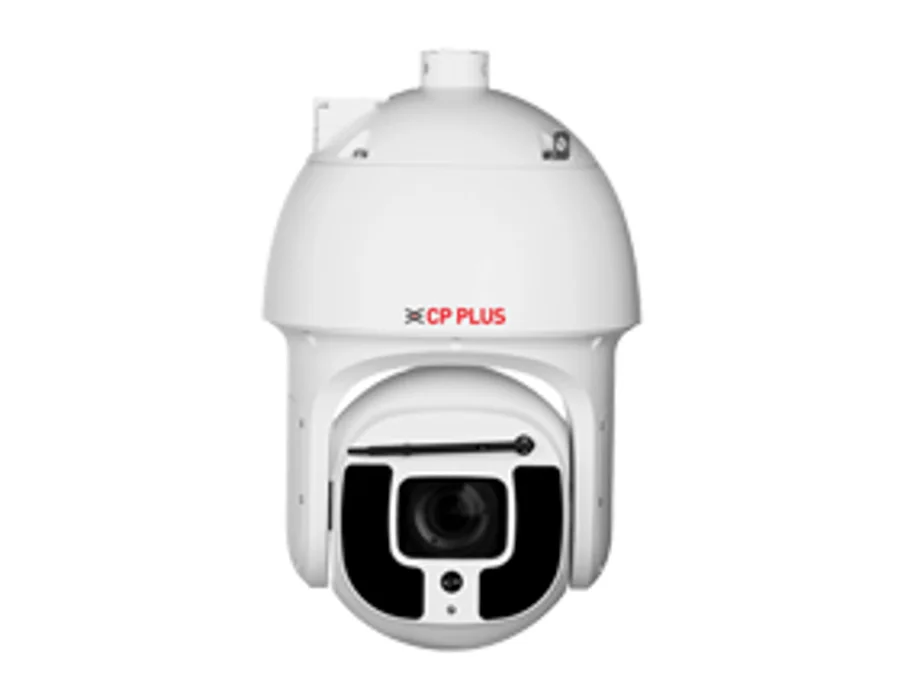

CP Plus CP-UNP-H4521L50-DPQ – 2MP WDR 45x IR Network PTZ Camera- 500 Mtr.

2MP WDR 45x IR Network PTZ Camera- 500 Mtr. Features 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) Max. 2MP (1920 × 1080)@1–25fps AI Instastream, Instastream, H.265, H.264, H.264B, H.264H, MJPEG Powerful 45x Optical zoom and 16x Digital zoom WDR(120dB), 2D NR/ 3D NR, Day/Night (ICR), Defog, ROI, AGC, AWB, BLC, HLC Support Penta stream Up to 300 Preset, 5 Auto scan, 8 Tour, 5 Pattern Support Starlight Technology IR Range of 500 Mtr. Support Smart Wiper, IP67, IK10 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) Effective Pixels: 1920 (H) × 1080 (V) Max Aperture: F1.6–F4.95 S/N Ratio: ≥55 dB RAM: 512 MB ROM: 256 MB Minimum Illumination: 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux@F1.6 (IR on) White Balance: Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp Angle of View: H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° Video Format: PAL Close Focus Distance: 0.1 m–1 m (0.33 ft–3.28 ft) Focal Length: 3.95 mm–177.75 mm Focus Control: Auto, Semi-auto, Manual Resolution: 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288) DORI Distance: 2451.7 m (Detect), 972.9 m (Observe), 490.3 m (Recognize), 245.2 m (Identify) Shutter Speed: 1 s–1/30,000 s Back Light Compensation: BLC/ HLC/ WDR(120dB) Optical Zoom: 45 × Digital Zoom: 16× Pan/ Tilt Range: Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180° Bit Rate: H.265: 25 kbps–6,400 kbps, H.264: 64 kbps–8,192 kbps Image Rotation: 180° Manual Speed: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–140°/s OSD: Camera title, Date & Time Noise Reduction: 2D NR/ 3D NR Ethernet: RJ-45 (10/100 Base-T) Special Features: Up to 300 Presets, 5 Pattern, 8 Tour (up to 32 presets per tour), 5 Auto Scan Preset Speed: Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s Storage: SFTP, NAS, Mirco SD card (Max. 512GB) Wiper: Support Privacy Mask: Up to 24 areas can be set, with up to 8 areas in the same view Iris Control: Auto, Manual Image Stabilization: Electronic Image Stabilization (EIS) Defog: Electronic RS-485: 1 (baud rate: 1200 bps–9600 bps） Idle Motion: Preset, Pattern, Tour, Scan IR Number: 10 (IR lights) Day/Night: Auto (ICR), Electronic, Color/B/W IR: IR Range of 500 Mtr. IR Control: Zoom Prio, Manual, Auto, Off Gain Control (AGC): Auto, Manual Video Compression: AI Instastream, Instastream, H.265, H.264, H.264B, H.264H, MJPEG Bit Rate Control: CBR/VBR Stream Capability: Penta stream Frame Rate: Main stream: 2MP (1920 × 1080)@1–25, 720p (1280 × 720)@1–25, D1 (704 × 576)@1–25fps Sub stream 1: D1 (704 × 576)@1–25fps , CIF (352 × 288)@1–25fps Sub stream 2: 2MP (1920 × 1080)@1–25fps, 720p (1280 × 720)@1–25fps, D1 (704 × 576)@1 25fps Sub stream 3: D1 (704 × 576)@1–25fps Sub stream 4: D1 (704 × 576)@1–25fps Audio Compression: PCM, G.711A, G.711MU, G.726, MPEG2-Layer2, G.722.1, AAC Motion Detection: Support Alarm Event: Motion/ tampering detection, Defocus Detection, Audio detection, SD Card Exception (No SD card, Low SD card space, SD card error), Network Exception (Offline, IP Conflict), External Alarm, IMD, Security Warning, AI Events Device Search Tool: IP finder OTA (Over-The-Air): Support SDK and API: Support ROI: Support Power-off Memory: Support Audio In: 1 Channel (LINE IN, bare wire) Audio Out: 1 Channel (LINE OUT, bare wire) Alarm Linkage: Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output Alarm IN: 7 (on-off value input: 0–5 VDC) Alarm Out: 2 channel Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, Allow list/Block list, HTTPS, trusted upgrade, trusted boot, firmware encryption Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, RTMP, ONVIF (Profile S, Profile G, Profile T), unicast, multicast, InstaOn IVS (Perimeter Protection): IMD, Crossing Virtual Fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, Face Detection Tracking Trigger Event: Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, Security Warning, Audio Detection, AI Event Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 36 VDC, 2.23 A ± 25% PoE+ (802.3at) Power Consumption: Basic: 16 W, Max: 29 W (IR + PTZ) Browser: IE, Chrome, Firefox, Safari User/Host: 20 (total bandwidth: 64 M) Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity: ≤95% (RH), non-condensing Weatherproof Standard: IP67, IK10, TVS 6000 V lightning proof, surge protection, voltage transient protection Dimension: 415.9mm × 262.0mm Weight: 8500g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
