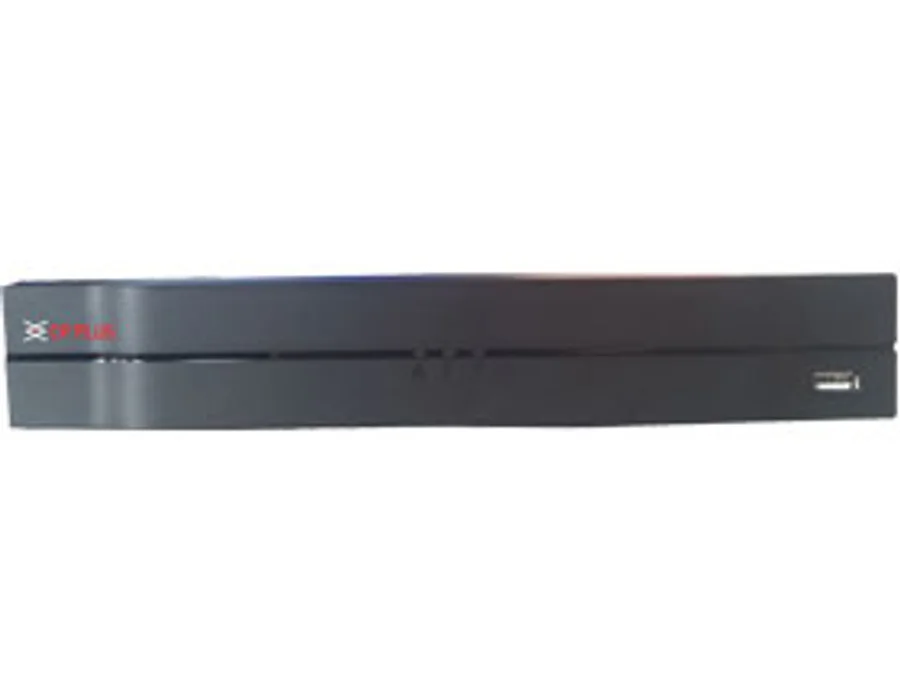

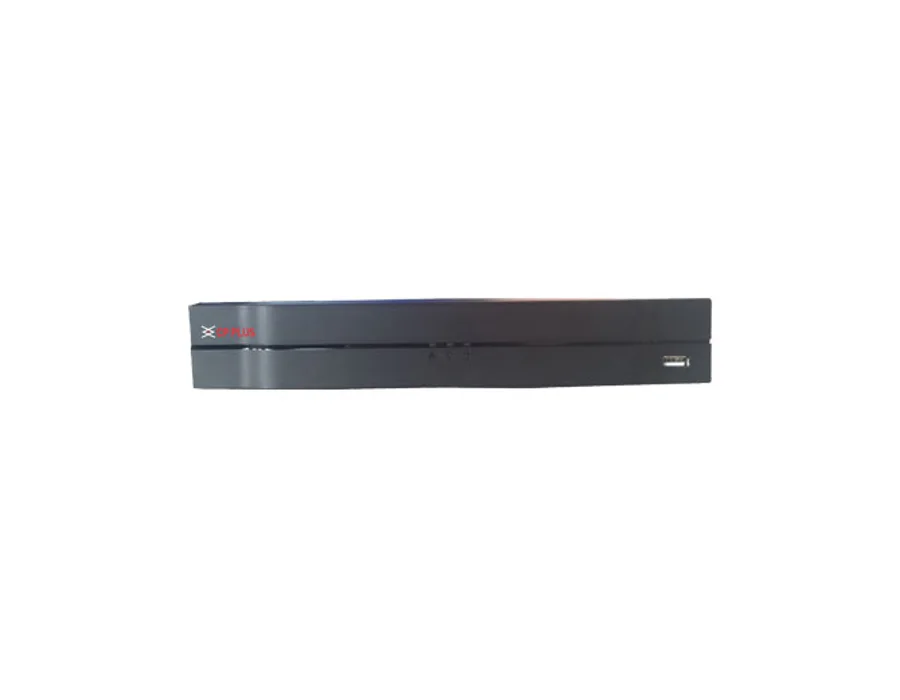

CP Plus CP-UNR-104F1 – 4Ch. Network Video Recorder

4Ch. Network Video Recorder Features Support 4 channel IP camera input Instastream/H.265/Smart H.264+/H.264 codec decoding Up to 8MP resolution preview and playback Max 80Mbps Network Bandwidth Support 1 SATA HDDs up to 8TB, 2 USB Ports (USB2.0) VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P Support Multi-brand network cameras ONVIF Version conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX User Interface: Web/operating in local GUI Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. Video Display Split: 1/4 Bandwidth Incoming: 80 Mbps Channel: 4 Motion Detection: Supports Video Loss: Supports Smart Phone: iPhone, iPad, Android Phone Hard Disk: 1 SATA 2.0, up to 8TB Each Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording Backup Mode: USB Device Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off Ethernet: 1 RJ-45 port (10/100Mbps) Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK Power Supply: DC12V, 1.5A Power Consumption: <10W (Without HDD) Working Temp: -10°C to 45°C (+34°F to +113°F) Dimension: 260 mm×225 mm×47.6 mm (W × L × H) Weight: 0.81kg (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
