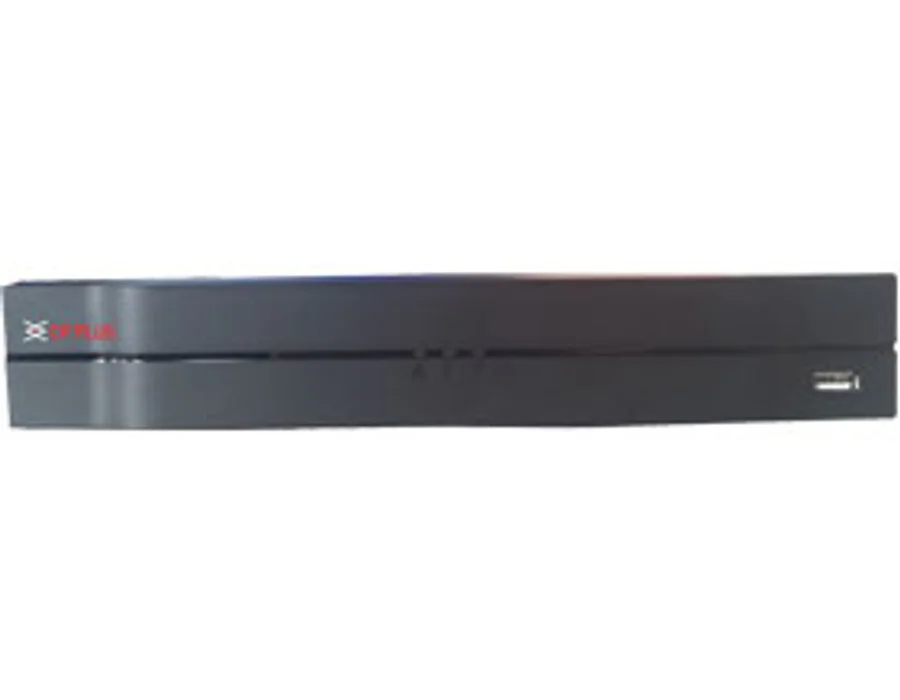

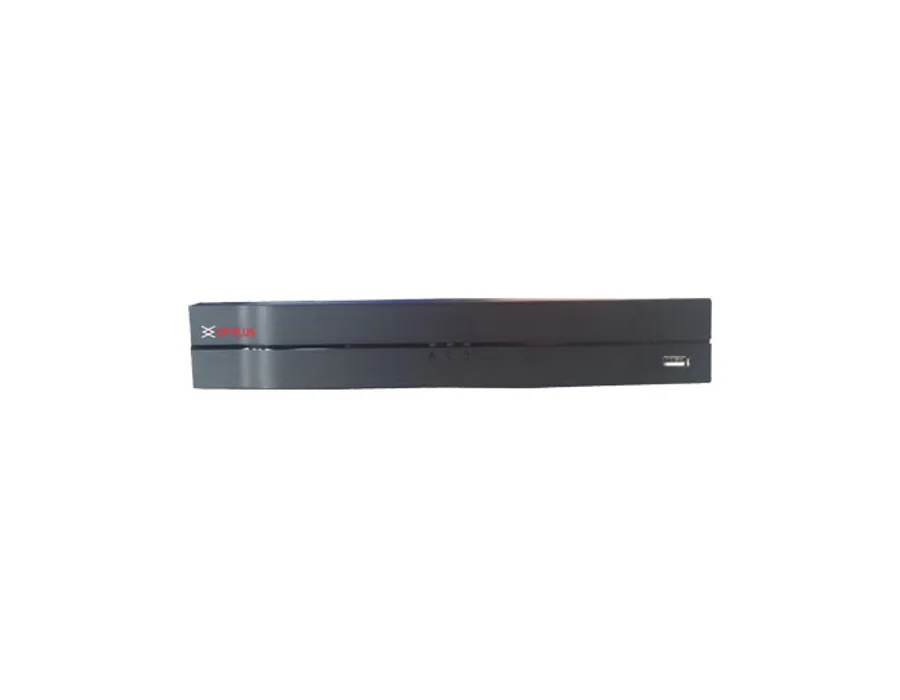

CP Plus CP-UNR-216F1-V3 – 16Ch. AI Network Video Recorder

16Ch. AI Network Video Recorder Features 16 Channel IP video access Instastream/H.265/Smart H.264 /H.264 encoding Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding AI by camera: perimeter protection,and SMD Plus Support 1 SATA HDDs up to 16TB each, 2 USB Ports 1 HDMI/ 1 VGA simultaneous video output Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX IP Camera Input: 16 channel Two-way Talk: 1 Ch. audio in/1 Ch. out, RCA User Interface: Web, Local, GUI Video Output: 1 × VGA, 1 × HDMI (simultaneous) Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 AI by Camera: Perimeter protection; SMD Plus Video Compression: H.265/Smart H.264+/H264 Encode Strategy: Instastream AI by Device: n/a Video Display Split: 1/4/8/9/16 Audio Compression: PCM; G.711A; G.711U; G.726 Decoding Capability: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps Audio Output: 1 channel Audio Input: 1 channel Camera Blank: Supports Motion Detection: MD Zones: 396 (22 × 18) Video Loss: Supports Alarm Linkage: Recording; snapshot; buzzer; log; preset; email; tour AI Search: n/a General Alarm: Motion detection; privacy masking; video loss; PIR alarm Smart Phone: iPhone, iPad, Android Phone Abnormal Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exceptio Hard Disk: 1 SATA III ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperatu Recording Mode: Manual record; alarm record; motion detection record; schedule record Backup Mode: USB device Playback: 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (video clip/file); partially zom in; audio on/of Record Interval: n/a Ethernet: 1 × RJ-45, 10/100Mbps self-adaptive Ethernet port Interface Ports: 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; InstaOn Cloud; ONVIF (profile T/S/G); CGI; SDK Power Supply: 12V DC, 1.5A Power Consumption: Total output of NVR is ≤ 10 W (without HDD) Working Temp: -10°C to 55°C (+14°F to +113°F) Storage Temperature: n/a Dimension: 260 mm × 232.7 mm × 47.6 mm (W × L × H) Operating Altitude: 3000 m Weight: 0.81 kg
