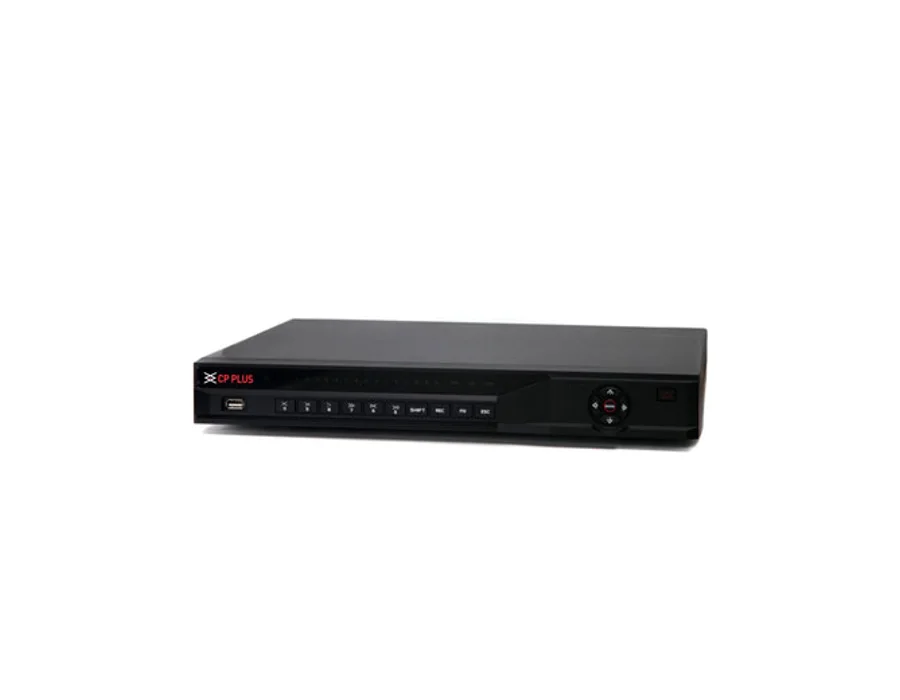

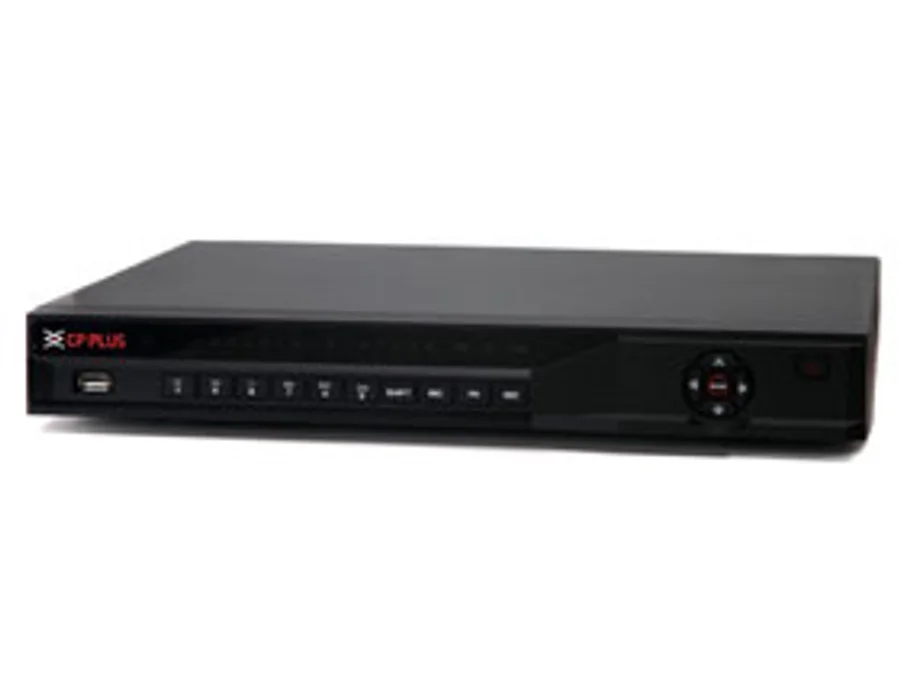

CP Plus CP-UNR-216F2-I2 – 16Ch. AI Network Video Recorder

16Ch. AI Network Video Recorder Features 16 Channel IP video access Instastream /H.265/Smart H.264+ /H.264/MJPEG Max. decoding capability: 6 × 1080p@30fps. Supports adaptive decoding 1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images AI by camera: Face detection and recognition, perimeter protection and SMD Support 2 SATA HDDs up to 10TB Each, 2 USB Ports Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX IP Camera Input: 16 channel Two-way Talk: 1 Ch. audio in/1 Ch. out, RCA User Interface: Web; local GUI Video Output: 1 × VGA, 1 × HDMI (max. resolution: 4K) (simultaneous) Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1 AI by Camera: Face detection; face recognition; perimeter protection; SMD Video Compression: H.265/Smart H.264+/H.265/H264/MJPEG Encode Strategy: Instastream AI by Device: Face detection; face recognition; perimeter protection Video Display Split: 1/4/8/9/16 Audio Compression: PCM/G711A/G711U/G26/AAC Decoding Capability: AI disabled: 1-channel 12MP@30fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30fps AI enabled: 1-channel 8MP@30fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps Audio Output: 1 channel Audio Input: 1 channel Camera Blank: Supports Motion Detection: MD Zones: 396 (22 × 18) Video Loss: Supports Alarm Linkage: Record; snapshot; buzzer; log; preset; email; tour AI Search: Face detection; face recognition; perimeter protection; SMD General Alarm: Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm Face Database Capacity: Up to 10 face databases with 5,000 images Human Face Recognition Performance: 5 Smart Phone: iPhone, iPad, Android Phone Abnormal Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception Face: 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard Hard Disk: 2 SATA III ports, up to 10TB for a single HDD. The maximum HDD capacity varies with environment temperature Recording Mode: Manual record; alarm recordings; motion detection recordings; scheduled recordings Backup Mode: USB device Playback: Play; pause; stop; fast forward; fast backward; rewind; play by frame, Full screen; backup (cut/file) ; partially enlarge; audio on/off Record Interval: n/a Ethernet: 1 RJ-45 10/100/1000 Mbps Interface Ports: 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; RTSP; P2P; Auto Registration; ONVIF (profile T; profile S; profile G); CGI; SDK Power Supply: DC 12V/4A Power Consumption: Total output of NVR is ≤ 10 W (without HDD) Working Temp: -10°C to 55°C (+14°F to +113°F) Storage Temperature: 0°C to 40°C (32°F to 104°F) Dimension: 375 mm × 284.3 mm × 53 mm (W × L × H) Operating Altitude: 3000 m Weight: 1.51 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
