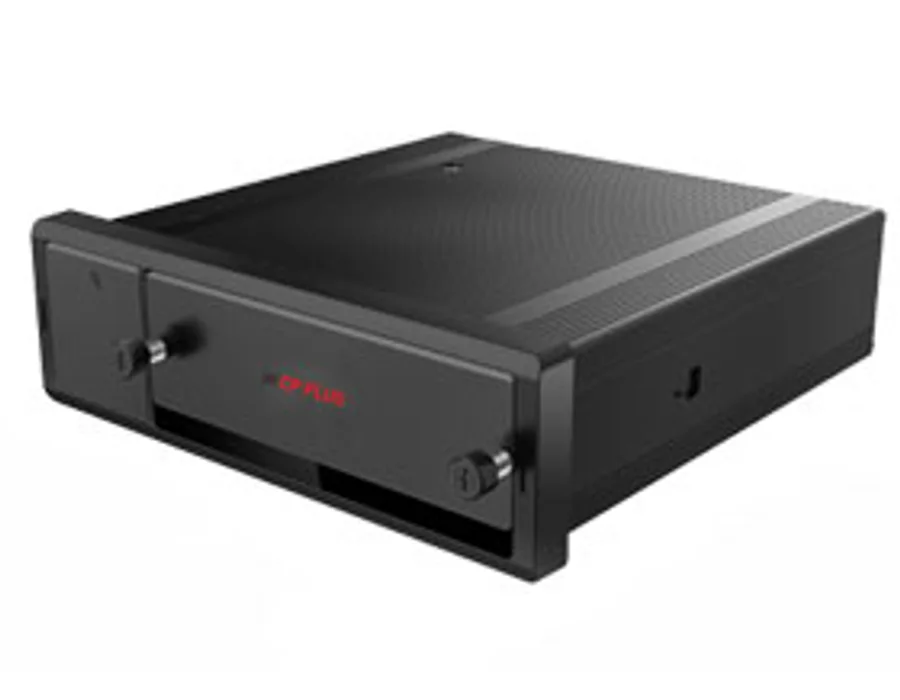

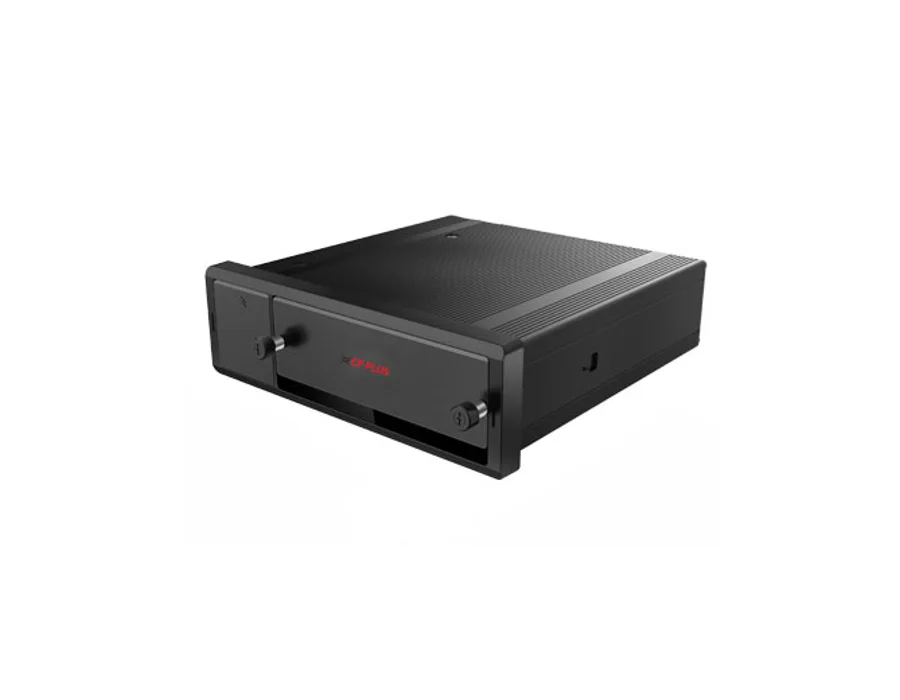

CP Plus CP-UNR-404T1-AI – 4 Ch. PoE H.265 AI Mobile Network Video Recorder

4 Ch. PoE H.265 AI Mobile Network Video Recorder Features Supports 4 Ch. 2MP PoE IP cameras input Support Instastream/ H.265 video compression Aviation connectors/ RJ45(Optional) Support 1 HDD and 1 SD card, 3 USB Ports (2.0) Support GPS, Wi-Fi and 3G/4G VGA/TV simultaneous video output Mobile Software: EMSS Pro, iCMOB/gCMOB (Live view and Playback) CMS Software: EMSS Pro, KVMS Pro (Live view and Playback) Specifications Processor: High-performance industrial embedded micro-controller IP Camera Input: 4 PoE Ethernet Ports, all channels 2MP Total output power of PoE: 36 W Max. output power of a single port: 25.4 W Two-way Talk: Supported User Interface: GUI Video Output: AV OUT x 1, VGA x 1 , HDMI x 1 Video Resolution: 800 × 600, 1280×1024 Video Compression: H.265, H.264 Encode Strategy: Instastream Video Display Split: 1/4 Audio Compression: G.711A/G.711U/PCM Alarm Input: 8 channels for alarm input, 1 channel for pulse speed measuring Audio Input: 4 (with Built-in Mic camera) Encoding Capacity: 1080P/720P/960H/D1/CIF Alarm Output: 1 channel of controllable 12V alarm output, digital quantity Audio Output: 1 aviation port for audio output Image Quality Adjustment: Image quality adjustable across six levels Hard Disk: 1, 2.5-inch HDDs (SATA) up to 2TB Dual-Stream: Supported (up to D1 encoding for sub stream) Memory: 1 SD card, Up to 256GB Recording Mode: Auto, Manual, motion detection, schedule, alarm Record alarm > alarm > motion detection > schedule OSD: Channel, time, GPS position, license plate Playback: 1, 4 Backup Mode: HDD, USB flash drive and network backup Interface Ports: Front panel: 2 × USB 2.0 Rear panel: 1 × USB 2.0 from EXTEND port, 3 Port RS232, 2 Port RS485, 1 TV Output, 1 Pulse Count, 1 CAN Port Face Detection and Face Recognition: Face capture, face comparison Ethernet: 1 x 10M/100M RJ45 Alarm Linkage: Record, snapshot, local external alarm output, buzzer, log, screen prompt, tour Heat Dissipation: Built-in fan cooling General Alarm: Motion detection, video tampering and loss, local alarm, camera offline, manual alarm control, face blacklist and restricted number plate list alarm Gyroscope: Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn Abnormal Alarm: No HDD, HDD error, insufficient capacity, illegal login, ACC off, high temperature, rollover, battery low voltage, over speed, low speed, collision, tapid turn, rapid speedup, hard braking, low battery safety exception, network security exception GPS: Support 3G/4G: Support Wi-Fi: Supports built-in 2.4 G Wi-Fi modules Power Supply: DC 6-36V with the built-in UPS (Enables system protection in normal power cut-off and in under voltage of vehicle battery.) Power Consumption: 10.2 W (without peripheral) Low power consumption: < 0.1W Operating Temperature: -30 °C to +70°C (–22 °F to +158 °F) Operating Humidity: 10 ~ 90% Dimension: 1 DIN Front panel: 190 mm × 60 mm (7.5’×2.4’) Rear panel: 180 mm × 50 mm (7.1’×2.0’) Depth:190 mm (7.5’) Net Weight: 2.93Kg (with packages)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
