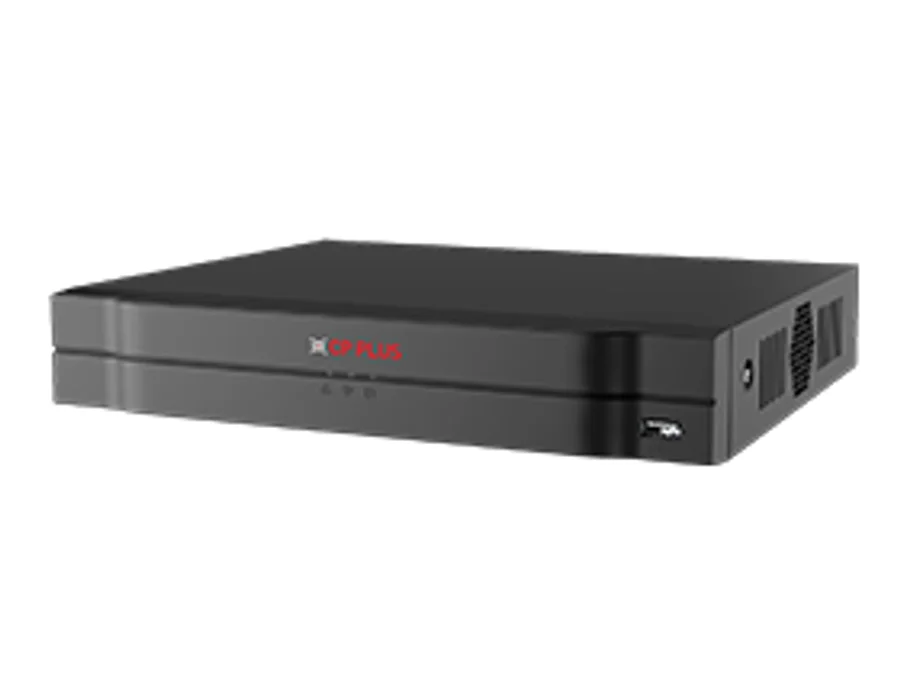

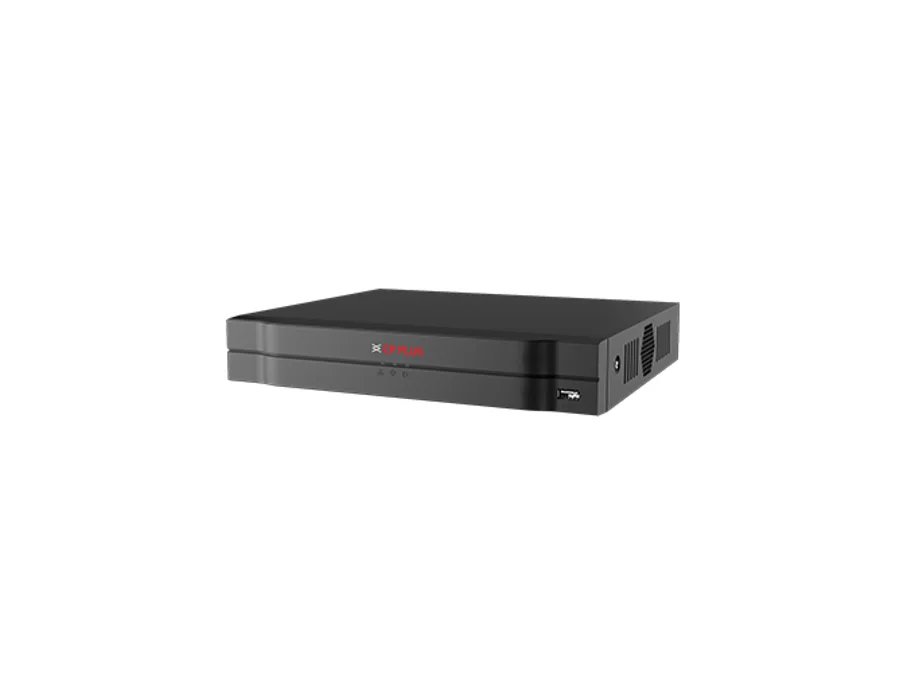

CP Plus CP-UNR-4K2041-4PG – 4Ch. Network Video Recorder with 4 PoE Port

4Ch. Network Video Recorder with 4 PoE Port Features Support 4 channel IP camera input Max 80Mbps Network Bandwidth Instastream, H.265, H.264+, H.264 codec decoding Up to 8MP resolution preview and playback Support 4 PoE Ports Support 1 SATA HDDs up to 8TB, 2 USB Ports (USB2.0) VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P Support Multi-brand network cameras ONVIF Version conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade embedded processor IP Camera Input: 4 Channels Operating System: Embedded Linux User Interface: Web, Operating in local GUI Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P Video Compression: Instastream, H.265, H.264+, H.264 Audio Compression: PCM, G711A, G711U, G726, AAC Decoding Capability: 1 Channel Input/ 1 Channel output Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. Video Display Split: 1/4 Multi-channel Playback: Up to 4 Channels Record Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm Abnormality Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly Alarm Linkage: Video recording, snapshot, log, preset, tour Hard Disk: 1 SATA 2.0, up to 8TB Each Backup Mode: USB Device Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) Ethernet: 1 RJ-45 Port (10/100Mbps) PoE Ports: 4 RJ–45 ports with PoE power supply (10/100 Mbps) Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, InstaOn, ONVIF (profile T/profile S/profile G), RTSP, CGI, SDK Power Supply: DC48V/53V, 1.25A/1.22A Power Consumption: Total output of NVR is <10W (Without HDD) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W Operating Temperature: -10°C to 45°C (+34°F to +113°F) Storage Temperature: 0°C to 40°C (+32°F to +104°F) Operating Humidity: 10%~93% Dimension: 260 mm × 225 mm × 47.6 mm Weight: 840g (without HDD)
