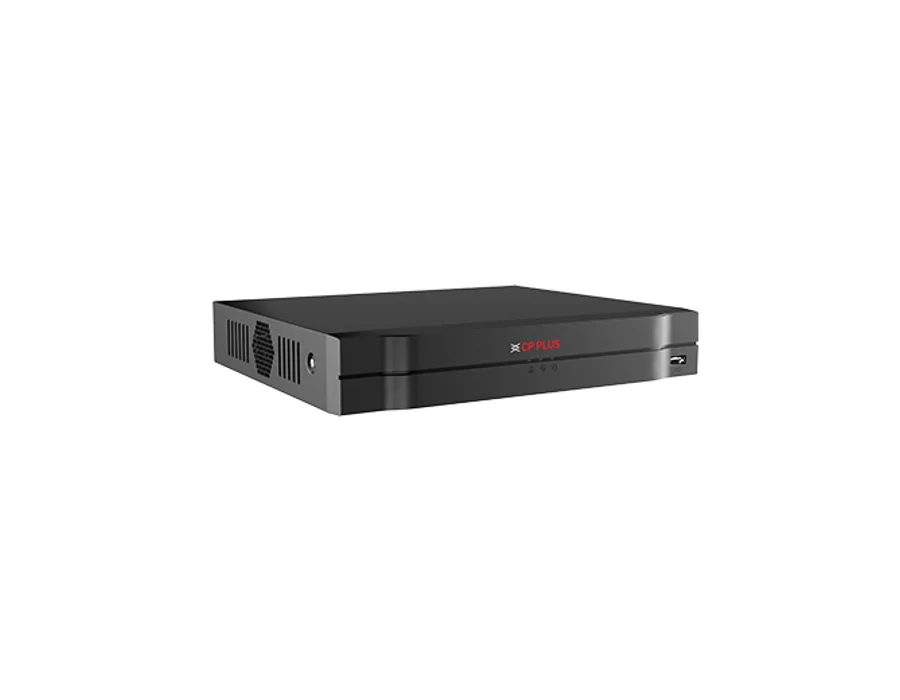

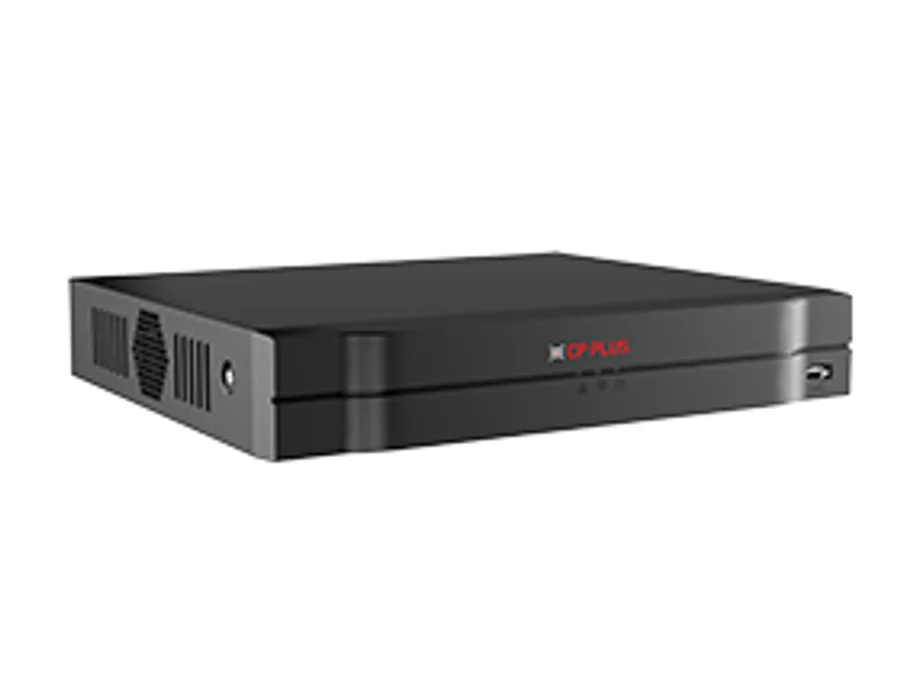

CP Plus CP-UNR-4K2041-V4 – 4 Ch. 4K Network Video Recorder

4 Ch. 4K Network Video Recorder Features Up to 4 channel IP camera input Instastream, H.265, H.264+, H.264, MJPEG Decoding Max. Decoding capability: 4 × 1080p@30fps 80 Mbps Incoming, 80 Mbps Recording and 60 Mbps Outgoing AI by NVR: Supports 4 Channel IMD AI by Camera: Supports perimeter protection, IMD Support 1 SATA HDD up to 20TB Each, 2 USB Ports, 1 HDMI, 1 VGA, 1 RJ-45 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded Linux User Interface: Web, Local GUI AI by NVR: IMD AI by Camera: Perimeter protection, IMD Perimeter Performance of AI by Camera: Human and vehicle detection on all channels, Supporting up to 4 targets per second IMD+ by NVR: 4 Channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change IMD+ by Camera: Human and vehicle detection on all channels, Supporting up to 8 targets per second IP Camera Input: 4 Channels Network Bandwidth: 80 Mbps Incoming, 80 Mbps Recording and 60 Mbps Outgoing Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF, QCIF Decoding Capability: AI disabled: 1 Channel 12MP@30 fps, 1 Channel 8MP@30 fps, 2 Channel 6MP@30 fps, 2 Channel 5MP@30 fps, 3 Channel 4MP@30 fps, 4 Channel 1080p@30 fps; AI enabled: 1 Channel 8MP@30 fps; 1 Channel 6MP@30 fps, 1 Channel 5MP@30 fps, 2 Channel 4MP@30 fps, 4 Channel 1080p@30 fps Video Output: 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Video Display Split: 1/4 Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Audio Compression: G.711a, G.711u, PCM, G726, AAC Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Browser: Chrome, IE, Safari, Edge, Firefox Smart Phone: iOS, Android Multi-channel Playback: Up to 4 Channels Recording Mode: General, Motion detection, Intelligent, Alarm Backup Mode: USB device and network Playback: Instant playback, General playback, Event playback, Tag playback, Smart playback General Alarm: Motion detection, Camera external alarm, PIR alarm Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline Intelligent Alarm: Perimeter protection, IMD+ Alarm Linkage: Recording, Snapshot, Buzzer, Log, Preset, Email, Tour Audio Input: 1 Channel RCA Audio Output: 1 Channel RCA Hard Disk: 1 SATA port each disk can contain up to 20 TB. this limit varies depending on the environment temperature. Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA Ethernet: 1 (10/100 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 1.5 A Power Consumption: <10 W (without HDD) Operating Temperature: –10°C to +55°C (14°F to +131°F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: –20°C to +60°C (–4°F to +140°F) Dimension: 260.0 mm × 232.5 mm × 47.6 mm Weight: 850g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
