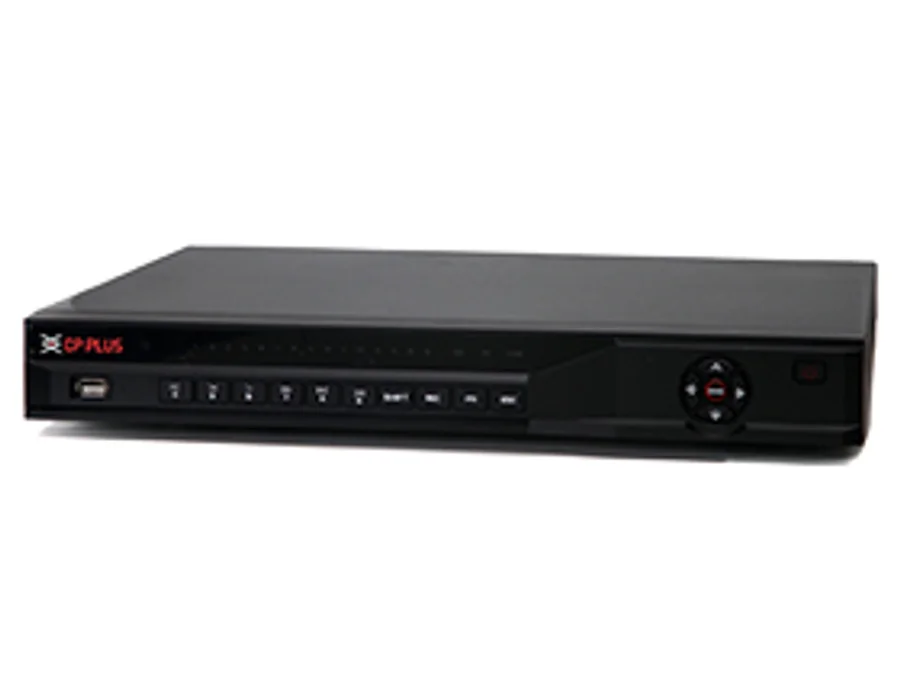

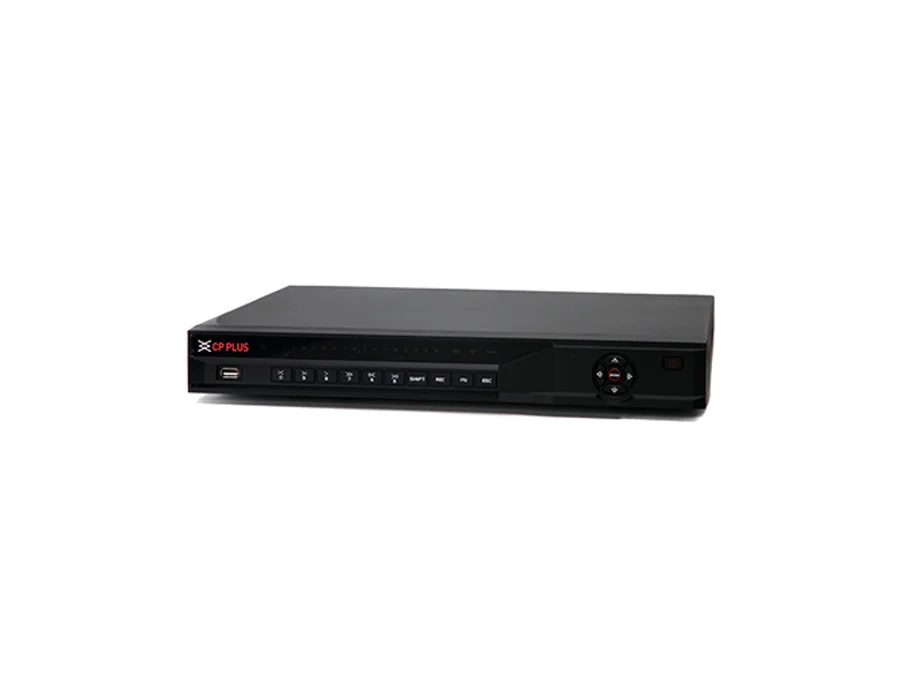

CP Plus CP-UNR-4K2162-V2 – 16 Ch. Network Video Recorder

16 Ch. Network Video Recorder Features Support up to 1ch@8MP/4ch@1080P decoding Instastream/H.265/ H.264+ dual codec decoding Up to 8MP resolution preview and playback Total Throughput 320Mbps Support 2 SATA HDDs up to 10TB Each, 2 USB ports(2.0) HDMI / VGA simultaneous video output Support Multi-brand network cameras ONVIF Version 2.4 conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Dual-core embedded processor Operating System: Embedded LINUX IP Camera Input: 16 channel Two-way Talk: 1 channel Input, 1 channel Output, RCA User Interface: GUI Video Output: 1 HDMI, 1 VGA Video Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768 Video Recording: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. Video Display Split: 1/4/8/9/16 Channel: 16 Bandwidth Incoming: 320Mbps Total Throughput Motion Detection: MD Zones: 396(22×18). Video Loss: Supports Smart Phone: iPhone, iPad, Android Phone Hard Disk: 2 SATA III ports, up to 10TB Each Trigger Events: Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips Recording Mode: Manual, Schedule(Regular(Continuous), MD, Stop Search Mode: Time/Date, MD & Exact search (accurate to second) Backup Mode: USB Device / Network Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom Max User Account: 128 users Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Ethernet: 1 RJ-45 port (10/100/1000Mbps) Interface Ports: 1 HDMI, 1 VGA, 2 USB Ports(1 Rear USB2.0, 1 Front USB2.0) Protocols: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF 2.4, SDK, CGI Power Supply: DC12V/4A Power Consumption: <3W (without HDD) Working Temp: -10 ~+55°C / 10~90%RH / 86~106kpa Dimension: 375mm x 281.5mm x 56mm Weight: 1.6kg (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
