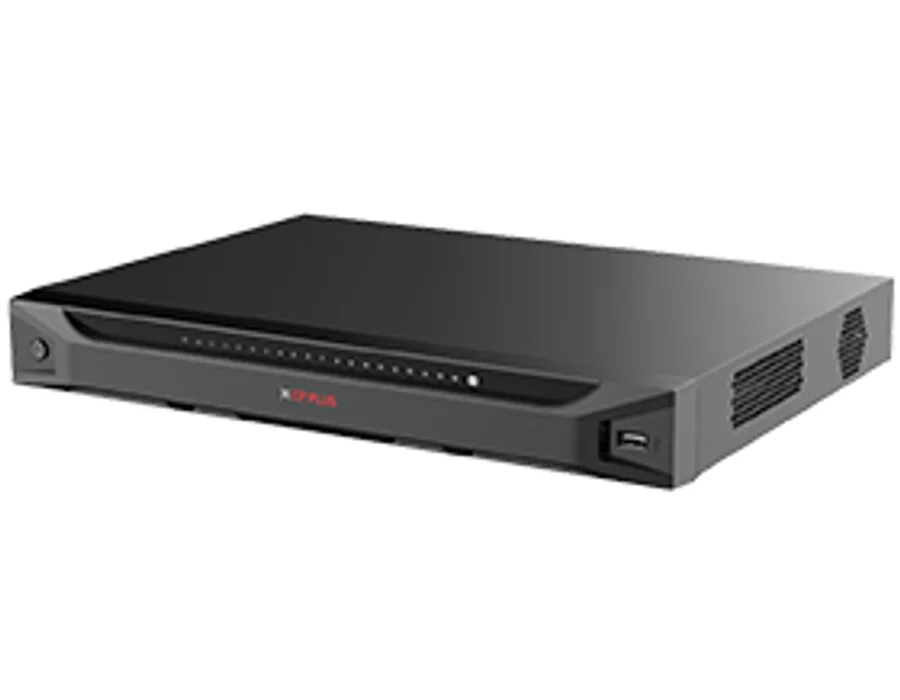

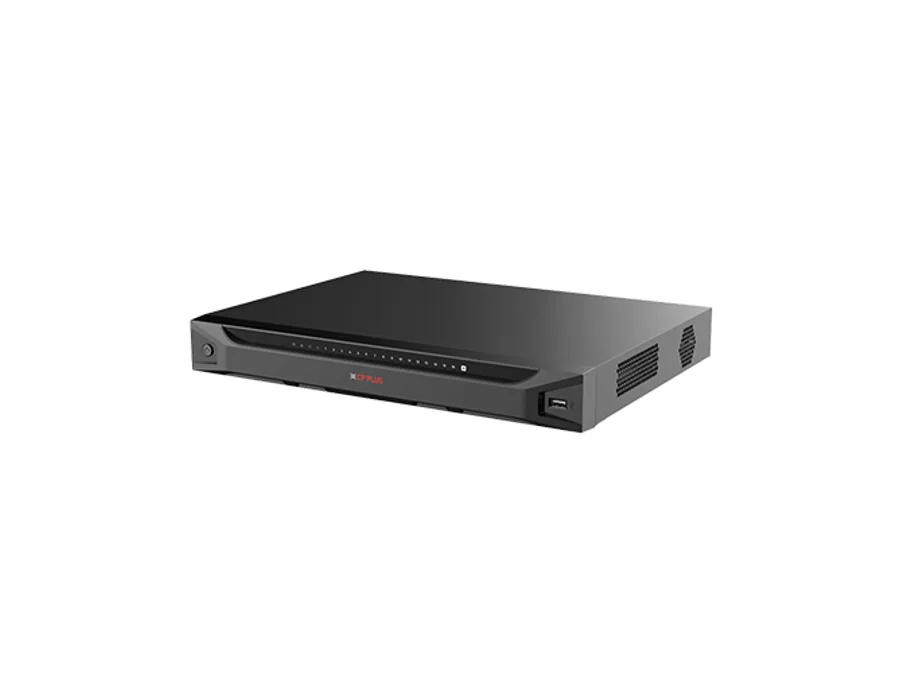

CP Plus CP-UNR-4K4162-V4 – 16 Ch. 4K 2HDDs Network Video Recorder

16 Ch. 4K 2HDDs Network Video Recorder Features Up to 16 channel IP camera input Max. decoding capability: 8 × 1080p@30 fps, 2 × 8 MP@30 fps Smart Instastream/H.265/H.264 /MJPEG Up to 12Mp resolution preview and playback Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth Support 2 SATA HDDs up to 20TB, 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) HDMI / VGA simultaneous video output Support Multi-brand network cameras ONVIF Version 2.4 conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS, KVMS Pro Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX Two-way Talk: 1 × RCA input ; Audio Input/ Audio Output User Interface: GUI Video Output: 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI Channel: 16 channel Video Loss: Supports Alarm Input: 4 Channels Smart Phone: iPhone, iPad, Android Phone Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. Recording Mode: Manual record; alarm recording; SMD recording; smart recording Search Mode: Time /Date, MD and Exact Search (accurate to second), Backup Mode: USB Device/Network Playback: Play/pause/stop/slow/quick/backward/by frame Full screen, backup (video clip/file), partial zoom in, and audio on/off Ethernet: 1 RJ-45 port (10/100M/1000M) Interface Ports: 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) Protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) Power Supply: DC12V/1.5A Power Consumption: < 10 W (HDD not included) Working Temp: –20 °C to +50 °C (–4 °F to +140 °F) Dimension: 375.0 mm × 282.9 mm × 53.0 mm Weight: 1.49 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
