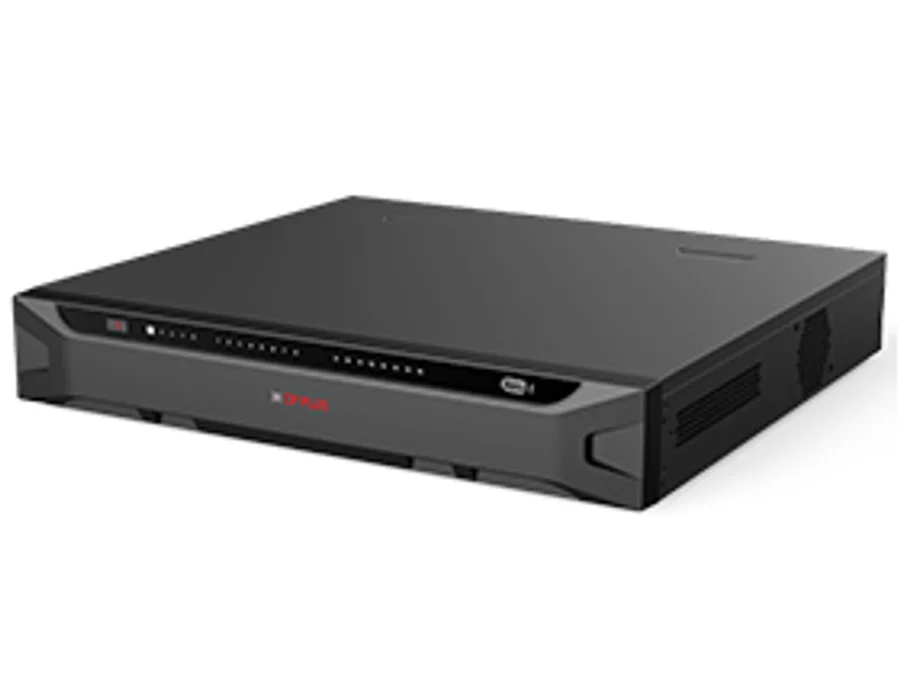

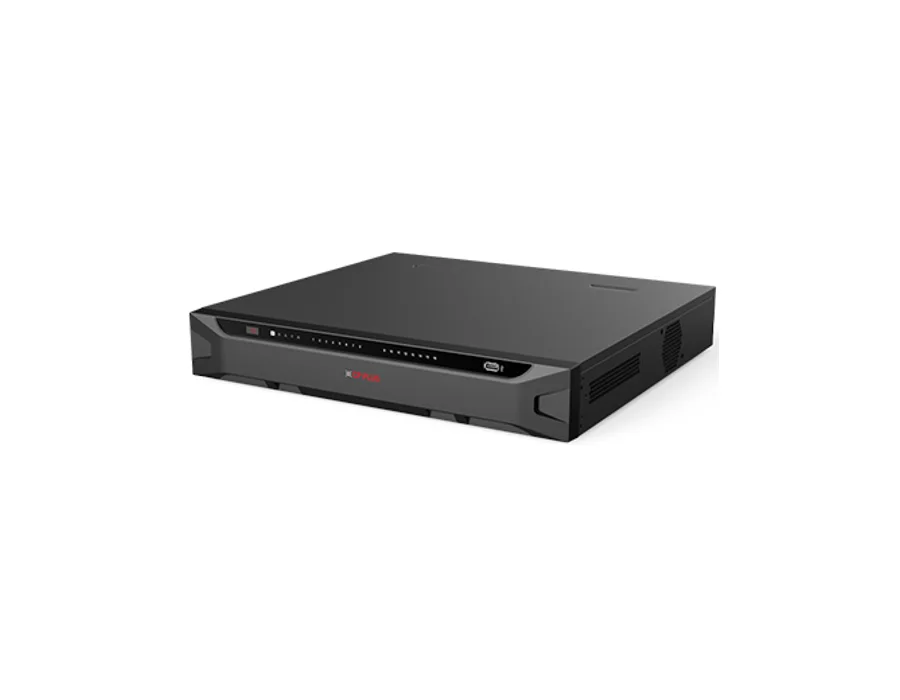

CP Plus CP-UNR-4K4164-FI – 16Ch. 4K AI Network Video Recorder

16Ch. 4K AI Network Video Recorder Features Up to 16 channel IP camera input Instastream, H.265, H.264+, H.264, MJPEG AI by Recorder: 1 Channel face detection and Recognition, 2 Channel perimeter protection, up to 10 face databases and 20,000 face images, 4 Channel SMD Plus AI by Camera: Face detection and Recognition, Perimeter protection, SMD Plus, ANPR, People counting, Stereo analysis, Heat map AI disabled: 256 Mbps incoming, AI enabled: 180 Mbps incoming Support 4 SATA ports, up to 16TB each, 2 USB (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS232, 1 RS485 1 HDMI, 1 VGA Simultaneous/ Heterogeneous video output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 16 Channels Operating System: Embedded LINUX User Interface: Web, Local GUI Perimeter Performance AI by NVR: 2 channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera: All channels (8 targets/s) Face Detection AI by NVR: 1 Channel (up to 12 face images/s each channel) Video Output: 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Abnormality Alarm: Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exception Face Recognition AI by NVR: 8 Channel FD (by camera) + FR (by NVR), image stream: 12 face images/s 1 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s Face Recognition AI by Camera: All Channels (8 targets/s) Network Bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing Video Display Split: 1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9 ANPR by Camera (Number of Channels): Supports up to 4 targets per second License Plate Database Capacity: 1. Create up to 20,000 plate numbers; 2. Blocklist and allowlist Audio Input: 1 Channel RCA Audio Output: Audio Output Video Resolution: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Alarm Input: 16 Channel Alarm Output: 4 Channels Disk Group: Support Hard Disk: 4 SATA ports, up to 16 TB each. The maximum HDD capacity varies with environment temperature Alarm Linkage: Record, Snapshot, IPC external alarm output, Audio, Buzzer, Log, Preset, Email Multi-channel Playback: Up to 16 Channels Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 HDMI, 1 VGA, 1 RS232, Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Protocols: HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, auto register, ONVIF 22.06(Profile T, Profile S, Profile G), CGI, SDK Backup Method: USB device and network SMD Plus by NVR: 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, Rain and lighting condition change Smart Phone: iOS, Android Browser: Chrome, IE9 and later, Firefox Power Supply: 100–240 VAC, 50-60Hz Power Consumption: <10 W (without HDD) Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F) Dimension: 440.0 mm × 415.6 mm x 76.0 mm Weight: 4.25 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
