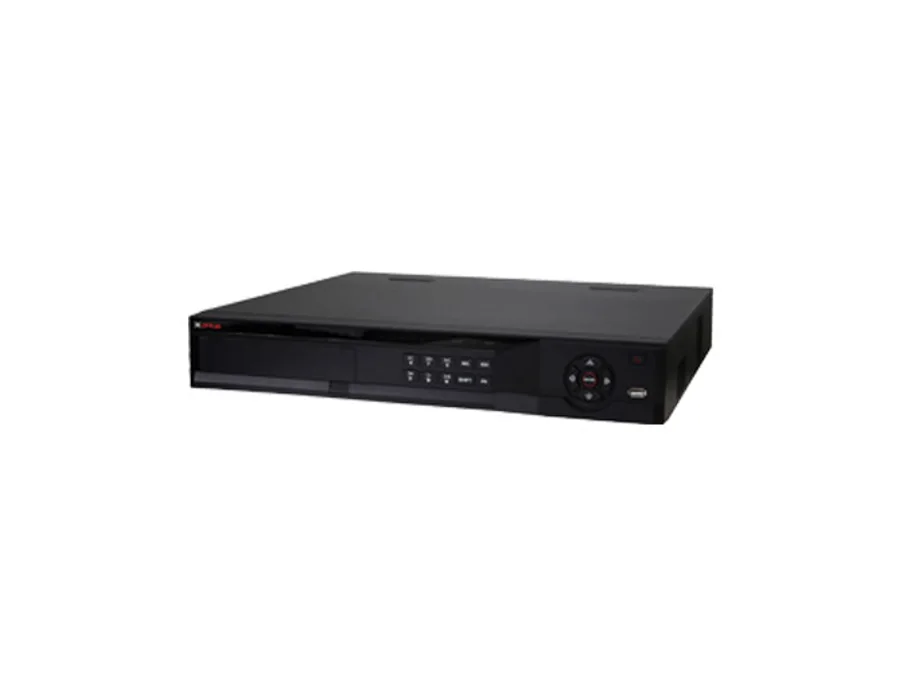

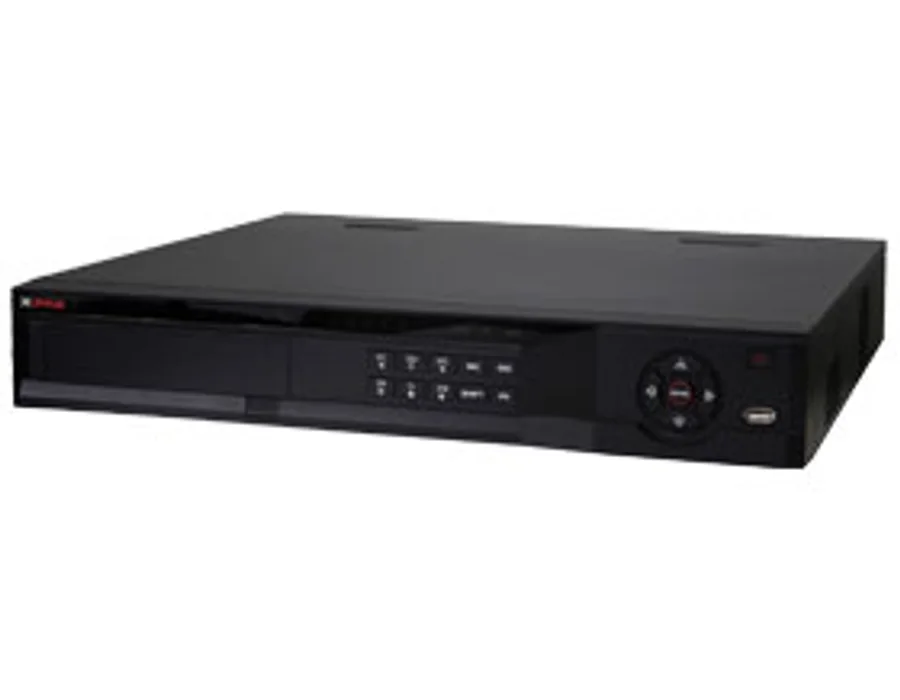

CP Plus CP-UNR-4K4164-I – 16 Ch. 4K Network Video Recorder

16 Ch. 4K Network Video Recorder Features 16 Channel IP video access Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled) Support 4 SATA HDDs up to 10TB Each, 2 USB Ports AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus 1 HDMI / 1 VGA simultaneous video output Support 4 SATA HDDs up to 10TB Each, 2 USB Ports AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map Mobile Software: iCMOB, gCMOB Mobile Software: iCMOB, gCMOB Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX IP Camera Input: 16 channel User Interface: Web; local GUI Video Output: 1-ch VGA output and 1-ch HDMI output; simultaneous/heterogeneous video sources output for VGA and HDMI is configurable Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1 Video Compression: Instastream/H.265+/Smart H.264+/H.264/MJPEG Video Display Split: 1st Screen: 1/4/8/9/16 ; 2nd Screen: 1/4/8/9 Audio Compression: PCM; G.711A; G.711U; G.726 Decoding Capability: AI off: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 4 channels × 5MP@30fps; 5 channels × 4MP@30fps; 10 channels × 1080p@30fps AI on: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 3 channel × 5MP@30fps; 4 channels × 4MP@30fps ; 8 channels × 1080p@30fps Audio Output: 1 channel Audio Input: 1 channel Alarm Input: 6 Channel Alarm Output: 6 Channel Camera Blank: Supports Motion Detection: Supports Video Loss: Supports Alarm Linkage: Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email Smart Phone: iPhone, iPad, Android Phone Anomaly Alarm: Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception Hard Disk: 4 SATA ports, up to 8 TB. The maximum HDD capacity varies with environment temperature Recording Mode: Manual; schedule (general; MD; alarm; MD & alarm; intelligent) Backup Mode: USB device Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off Ethernet: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports Interface Ports: 1 front USB 2.0 port, 1 rear USB 3.0 port , 1 RS485, 1 RS232 Protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server, IP Search; P2P; auto register; ONVIF (profile T/S/G); CGI; SDK Power Supply: Single, 100 V–240 V AC, 50 Hz–60 Hz Power Consumption: Total output of NVR is ≤ 8 W (without HDD) Working Temp: -10 °C to +50 °C (+10 °F to +131 °F) Working Humidity: 10%–93% Storage Temperature: 0 °C to +30 °C (32 °F to 104 °F) Storage Humidity: 30%–85% Operating Altitude: 3000 m Dimension: 440.0 mm × 415.6 mm x 76.0 mm (W × L × H) Weight: 4.25 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
