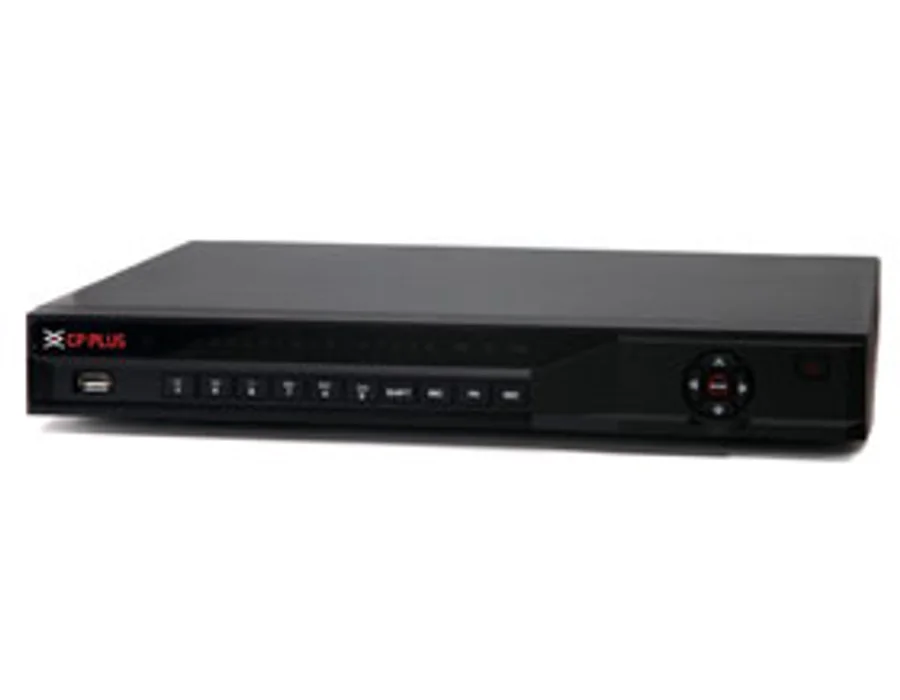

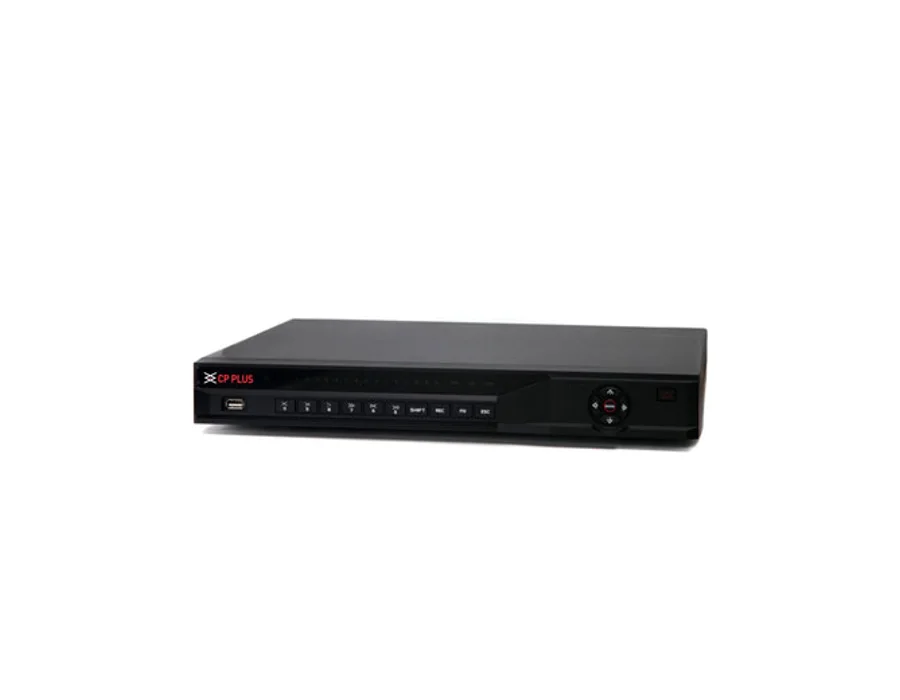

CP Plus CP-UNR-4K4322-V3 – 32Ch. 4K Network Video Recorder

32Ch. 4K Network Video Recorder Features Up to 32 channel IP camera input Instastream/H.265/Smart H.264+/H.264/MJPEG Max. decoding capability: 8 x 1080p@30fps. Supports adaptive decoding Supports mainstream cameras of ONVIF and RTSP protocols Support 2 SATA HDDs up to 10TB Each, 2 USB Ports VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K Support Multi-brand network cameras AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Specifications Processor: Industrial-grade embedded processor Operating System: Embedded LINUX Two-way Talk: 1 × RCA input ; Audio Input/ Audio Output User Interface: GUI Video Output: 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI Channel: 32 channel Bandwidth Incoming: Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps Motion Detection: MD Zones: 396(22×18). Video Loss: supports Alarm Input: 4 channel Alarm Output: 2 Channel Smart Phone: iPhone, iPad, Android Phone Hard Disk: 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature Trigger Events: Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms Recording Mode: Manual record; alarm recording; SMD recording; smart recording Search Mode: Time /Date, MD and Exact Search (accurate to second), Smart search Backup Mode: USB Device/Network Playback: Play/pause/stop/slow/quick/backward/by frame Full screen, backup (video clip/file), partial zoom in, and audio on/off Ethernet: 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port Interface Ports: 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) Protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search, P2P, auto register, RTSP, ONVIF (profile T/S/G); CGI; SDK Power Supply: DC12V/1.5A Power Consumption: < 5.6 W (HDD not included, idling) Working Temp: -10°C to +55°C (+10 °F to +131 °F) Dimension: 375 mm × 282.4 mm × 53 mm Weight: 15 kg
