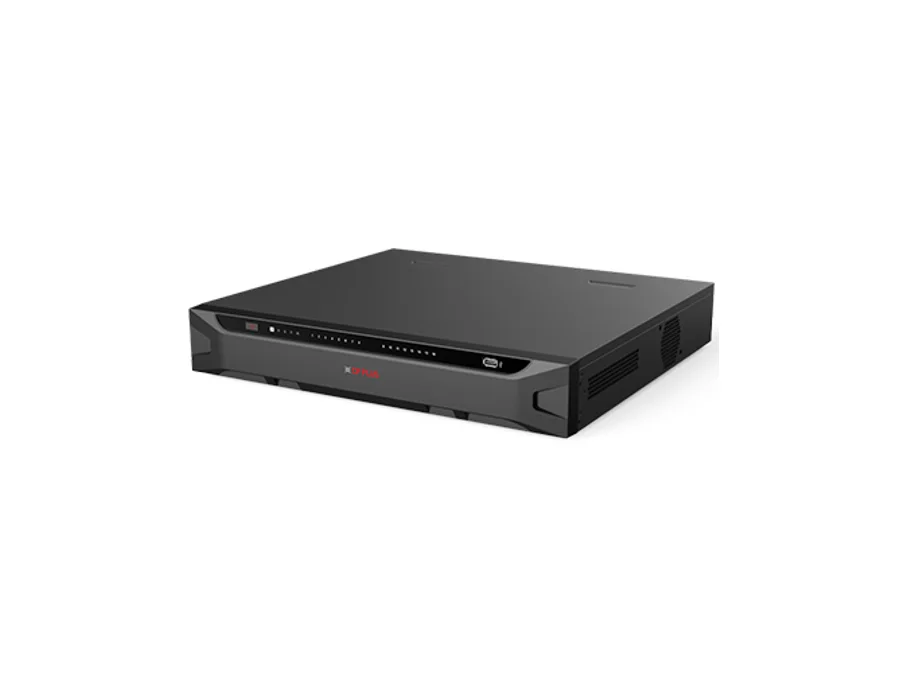

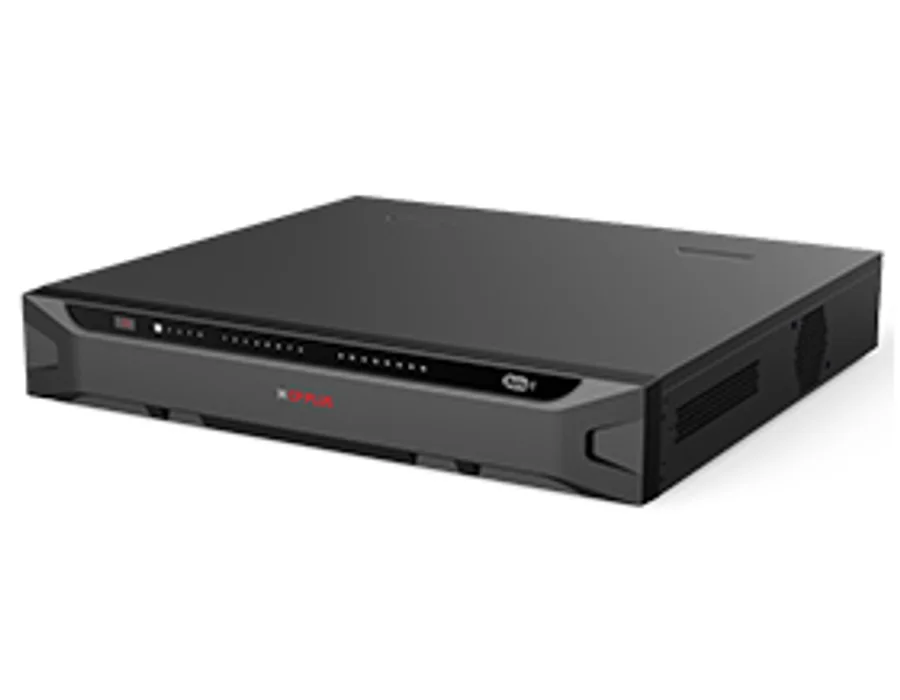

CP Plus CP-UNR-4K4322-V4 – 32 Ch. 4K Network Video Recorder

32 Ch. 4K Network Video Recorder Features Up to 32 channel IP camera input Instastream, H.265, H.264 , H.264, MJPEG Decoding Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps Max. 160/128/60 Mbps Incoming/ Recording/ Outgoing Bandwidth Support 2 SATA HDDs up to 20TB Each, 2 USB Ports HDMI / VGA simultaneous video output AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis and heat map Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded LINUX IP Camera Input: 32 channel User Interface: Web, Local GUI AI by NVR: SMD Plus Perimeter Performance of AI by Camera: 6 Channels Video Output: 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Abnormality Alarm: Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exceptio SMD Plus by NVR: 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change Face Detection AI by Camera: 6 Channels Resolution: 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF, QCIF Video Compression: Instastream; H.265, H.264+, H.264 Network Bandwidth: AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing Smart Phone: iPhone, iPad, Android Phone Disk Group: Support Video Display Split: AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16 Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Audio Compression: G.711a, G.711u, PCM, Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperatur Browser: Chrome, IE, Safari, Edge, Firefox Multi-channel Playback: Up to 16 Channels Playback: Instant playback, General playback, Event playback, Tag playback, Smart playback Backup Mode: USB device and Network Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45) Protocols: HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK Power Supply: 12 VDC, 2 A Power Consumption: Total output of NVR is <10 W(without HDD) Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F) Storage Temperature: –10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Dimensions: 375.0 mm × 282.9 mm × 53.0 mm Weight: 1.49 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
