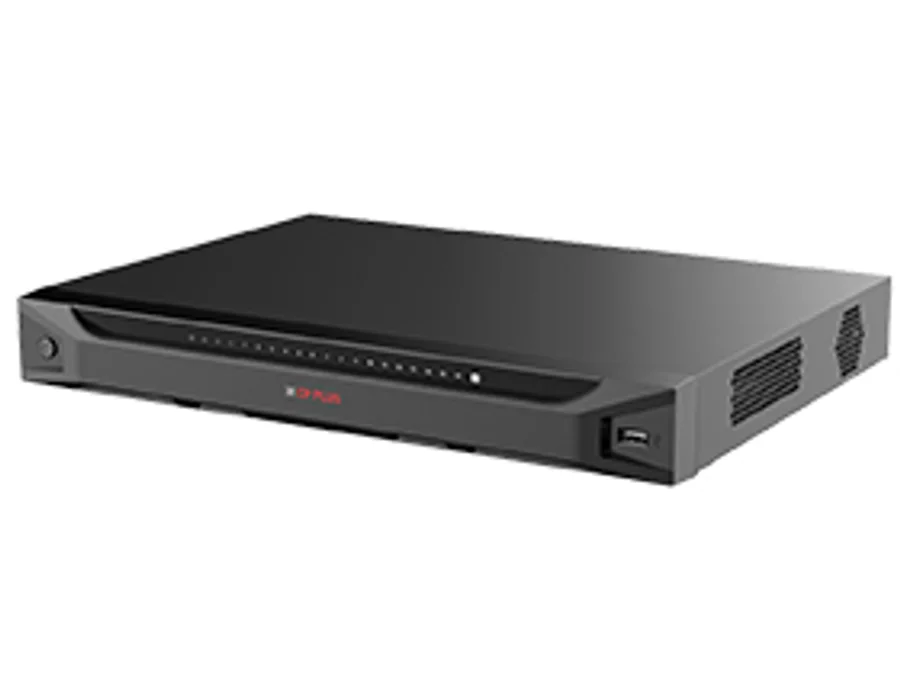

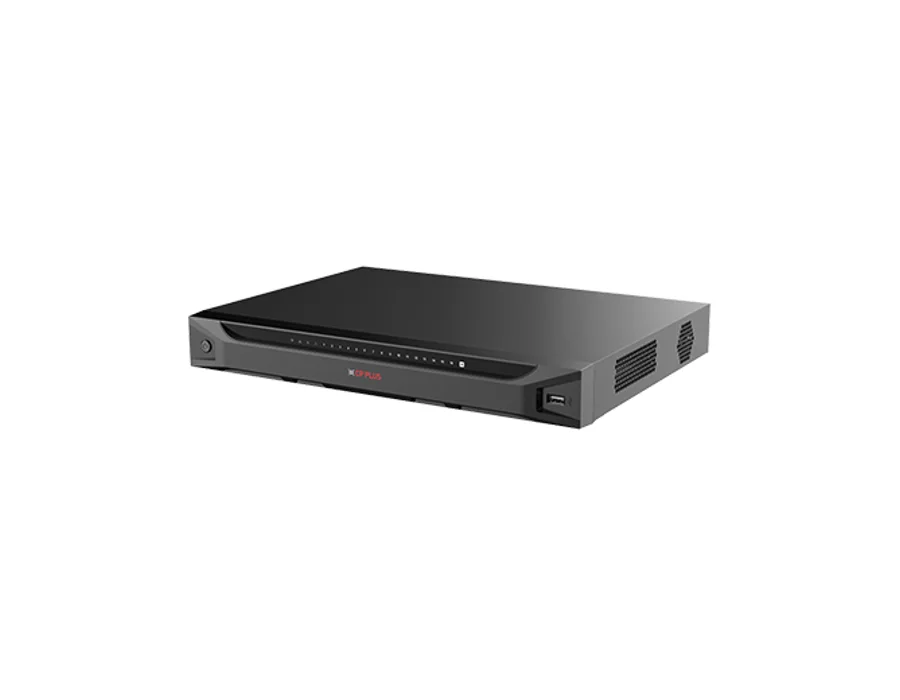

CP Plus CP-UNR-4K5082-FI – 8Ch. 4K AI Network Video Recorder

8Ch. 4K AI Network Video Recorder Features Up to 8 channel IP camera input Max. 384 Mbps incoming/recording/outgoing bandwidth Instastream, H.265, H.264+, H.264, MJPEG codec decoding AI by recorder: 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel perimeter protection, 8 Channel IMD+ AI by Camera: Face detection and recognition, Perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, People counting Supports N+M cluster Support 2 SATA HDDs up to 20TB Each, 2 USB Ports (1 front USB 2.0 port, 1 rear USB 3.0 port) HDMI/ VGA Heterogeneous video output Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 8 Channels Operating System: Embedded LINUX User Interface: Web, Local GUI Video Output: 1 VGA:1920 × 1080, 1280 × 1024, 1280 × 720 1 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Decoding Capability: AI disabled: 2 Channel 32MP@25 fps, 2 Channel 24MP@25 fps, 4 Channel 16MP@30 fps, 5 Channel 12MP@30 fps, 8 Channel 8MP@30 fps AI enabled: 1 Channel 32MP@25 fps, 1 Channel 24MP@25 fps, 2 Channel 16MP@30 fps, 4 Channel 12MP@30 fps, 6 Channel 8MP@30 fps, 8 Channel 6MP@30 fps, 8 Channel 5MP@30 fps AI by NVR: Face detection, Face recognition, Perimeter protection, IMD+ AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), Perimeter protection, IMD, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map, PPE detection, Smart object detection, Smart sound detection IntelliCheck AI by Camera + Recorder: Max. 8 Channel, 1 combined event per Channel/s Resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF Video Display Split: Main screen: 1/4/8/9 , Sub screen: 1/4/8/9 Perimeter Performance AI by NVR (Number of Channels): 4 Channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera (Number of Channels): Human and vehicle detection on all channels, supporting up to 8 targets per second. Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Face Detection Performance of AI by Recorder (Number of Channels): 2 Channels (up to 12 face images/s each Channel) Face Detection Performance of AI by Camera (Number of Channels): 8 Channels Face Database Capacity: Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image Face Recognition Performance of AI by NVR (Number of Channels): 1.8 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2.2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s Face Recognition Performance of AI by Camera (Number of Channels): 8 Channels IMD+ by NVR: 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: Human and vehicle detection on all channels, supporting up to 16 targets per second Metadata Performance of AI by Camera (Number of Channels): 8 Channels Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle interior, Vehicle registration location Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet ANPR by Camera (Number of Channels): Supports up to 8 targets per second License Plate Database Capacity: 1. Create up to 20,000 plate numbers, 2. Blocklist and allowlist Abnormality Alarm: Error (No disk, Disk error, Low space, Low quota space, Abnormal disk health, Network disconnection, IP conflict, MAC conflict, Abnormal fan speed), Video loss, Video tampering, Camera offline, Audio detection Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles and Non-motor vehicles), IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map, PPE detection, Smart object detection, Smart sound detection General Alarm: Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA Audio Output: 1 Channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Disk Group: Support Alarm Input: 4 Channel Alarm Output: 2 Channel Hard Disk: 2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature Multi-channel Playback: Up to 8 Channels Record Mode: General, Motion detection, Intelligent, Alarm, POS Playback Mode: Instant playback, General playback, Event playback, Target video, Video clip, Tag playback, Smart playback (face and motion detection) Smart Phone: iPhone, iPad, Android Phone Browser: Chrome, IE, Safari, Edge, Firefox Backup Method: USB Device/Network Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS232, 1 RS485 Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Connect, iSCSI, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 4Amp Power Consumption: Total output of NVR is ≤ 10 W (without HDD) Operating Temperature: -10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 375.0 mm × 284.4 mm x 56.0 mm Weight: 1570g (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
