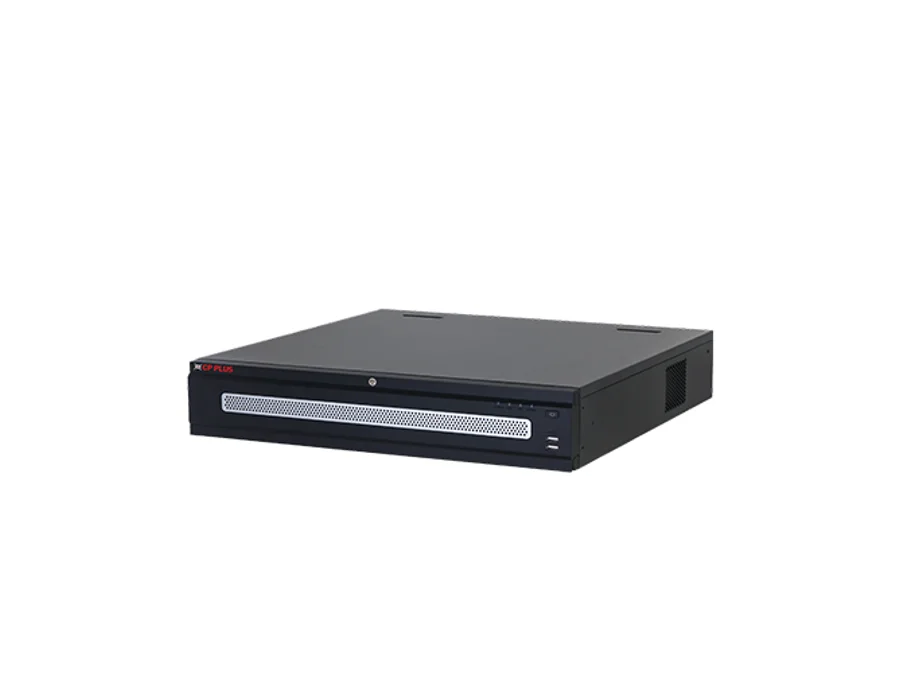

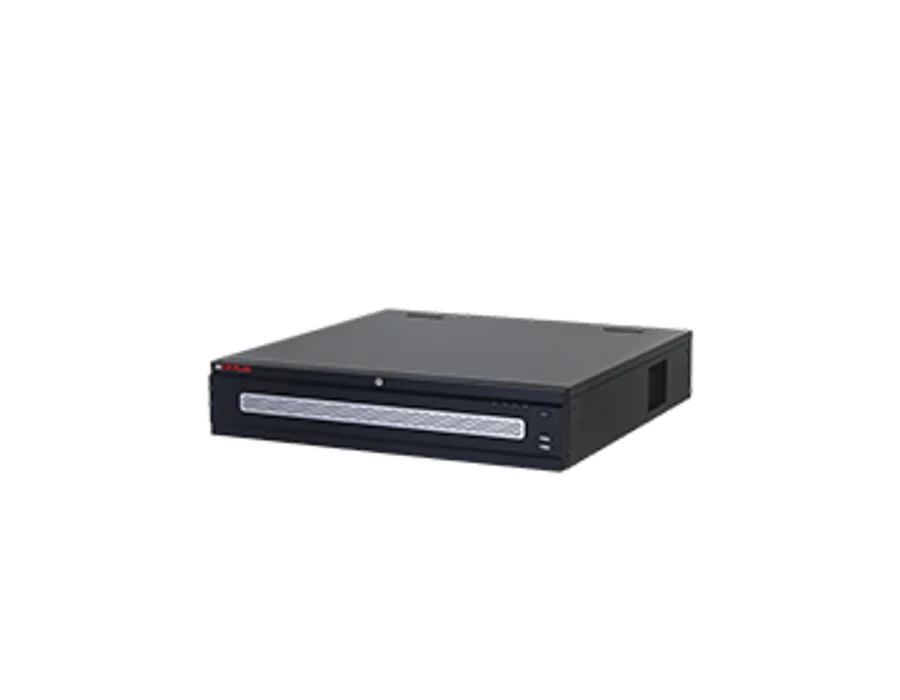

CP Plus CP-UNR-4K5128R8-EI – 128Ch. 4K AI Network Video Recorder

128Ch. 4K AI Network Video Recorder Features Up to 128 channel IP camera input Max. Decoding capability: 32 × 1080p@30fps Max. 512/512/512 Mbps Incoming/ Recording/ Outgoing bandwidth AI by Recorder: Supports 8 channel face detection and recognition, up to 20 face databases and 200,000 face images, 8 channel metadata, 24 Channel perimeter protection, 32 channel IMD+ (Intelligent motion detection) AI by Camera: Supports face detection and recognition, Perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, and people counting Support redundant power, RAID 0/1/5/6/10, N+M cluster Support 8 SATA HDDs up to 20TB Each, 4 USB Ports 2 HDMI/ 2 VGA simultaneous video output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor Operating System: Embedded Linux IP Camera Input: 128 Channels User Interface: Web, Local GUI AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and Non-motor vehicles), Perimeter protection, IMD, Stereo analysis, Crowd distribution, People counting, ANPR, Heat map, PPE detection AI by NVR: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), Perimeter protection, IMD Perimeter Performance AI by NVR (Number of Channels): 24 Channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera: Human and vehicle detection on all channels, supporting up to 32 targets per second Video Output: 2 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Face Detection AI by NVR: Sub screen 4K enabled: 4 Channels (up to 12 face images/sec each channel) Sub screen 4K disabled: 8 Channels (up to 12 face images/sec each channel) Face Detection AI by Camera: 32 Channels Face Recognition AI by NVR: Sub screen 4K enabled: 16 Channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec 4 Channel FD (by recorder) + FR (by recorder), Video stream: 16 face images/sec Sub screen 4K disabled: 16 Channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec 8 Channel FD (by recorder) + FR (by recorder), Video stream: 16 face images/sec Face Recognition AI by Camera: 32 Channels Face Attributes: 6 attributes Face Database Capacity: Up to 20 face databases with 200,000 images, with a total capacity of 44G Decoding Capability: AI disabled: 2 Channel 32MP@30fps, 2 Channel 24MP@30 fps, 4 Channel 16MP@30 fps, 5 Channel 12MP@30 fps, 8 Channel 8MP@30 fps, 10 Channel 6MP@30 fps, 12 Channel 5MP@30 fps, 16 Channel 4MP@30 fps, 32 Channel 1080p@30 fps, 64 Channel 720p@30 fps AI enabled: 1 Channel 32MP@30 fps, 1 Channel 24MP@30 fps, 2 Channel 16MP@30 fps, 4 Channel 12MP@30 fps, 6 Channel 8MP@30 fps, 8 Channel 6MP@30 fps, 8 Channel 5MP@30 fps, 12 Channel 4MP@30 fps, 24 Channel 1080p@30 fps, 48 Channel 720p@30 fps, 64 Channel D1@30 fps Intelli check AI by Camera + NVR: Max. 36 Channels, 1 combined event per channel License Plate Database Capacity: 1. Up to 20,000 plate numbers 2. Blocklist and allowlist Motor Vehicle Attributes: 9 Attributes Non-motor Vehicle: 4 attributes Disk Interface: 8 SATA ports each disk can contain up to 20 TB, this limit varies depending on the environment temperature Abnormality Alarm: Error (No disk, Disk error, Low space, RAID exception, Low quota space, Abnormal disk health, Network disconnection, IP conflict, MAC conflict, Abnormal fan speed), Video loss, Video tampering, Camera offline, Audio detection IMD+ by NVR: 32 Channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change IMD+ by Camera: Human and vehicle detection on all channels, supporting up to 64 targets per second ANPR by Camera (Number of Channels): Supports up to 32 targets per second Metadata Performance of AI by NVR: 8 Channels, 23 attributes extraction Metadata Performance of AI by Camera (Number of Channels): 32 Channels Multi Screen Preview: Main screen: 1/4/8/9/16/25/36/64; Sub screen: 1/4/8/9/16 Network Mode: Multi-address, load balance, fault tolerance Network Bandwidth: AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 960p, 720p, D1, CIF, QCIF People Attributes: 9 Human body attributes General Alarm: Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm Intelligent Alarm: Face detection, Face recognition, Video metadata (Human, Motor vehicle, and non-motor vehicle), Perimeter protection, License plate comparison RAID: RAID 0/1/5/6/10 Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email Recording Mode: General, Motion detection, Intelligent, Alarm, POS Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Multi-channel Playback: Up to 16 channels Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto connect, ISCSI, ONVIF 23.06(Profile T; Profile S; Profile G), CGI, SDK Power Redundancy: Support Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Disk Group: Support Hot Swapping: Support Audio Compression: G.711a, G.711u, PCM, G726 Audio Input: 1 channel RCA Audio Output: 2 channel RCA Alarm Input: 16 channels Alarm Output: 8 channels (1 channel 12 V 1 A output） Backup Mode: USB device and network Interface Ports: 4 USB (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 2 RS485 (1 port for half duplex serial communication, 1 port for full-duplex serial communication), 1 RS232, 1 eSATA Ethernet Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 100–240 VAC, 50/60 Hz Power Consumption: <13 W (without HDD) Operating Temperature: –10°C to +55°C (14°F to +131°F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 444.0 mm × 476.0 mm ×95.0 mm Weight: 8790 g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
