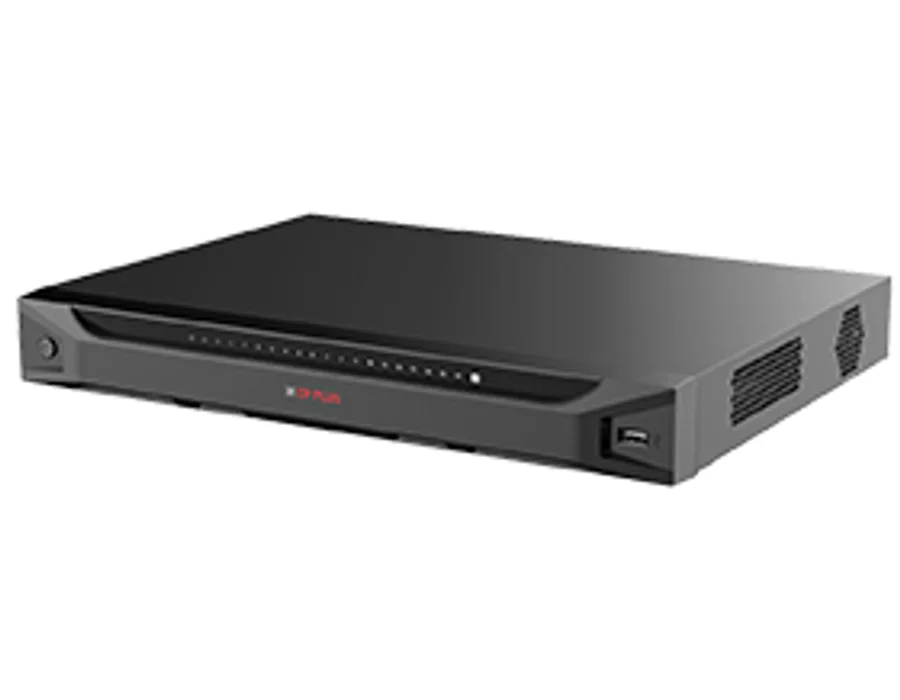

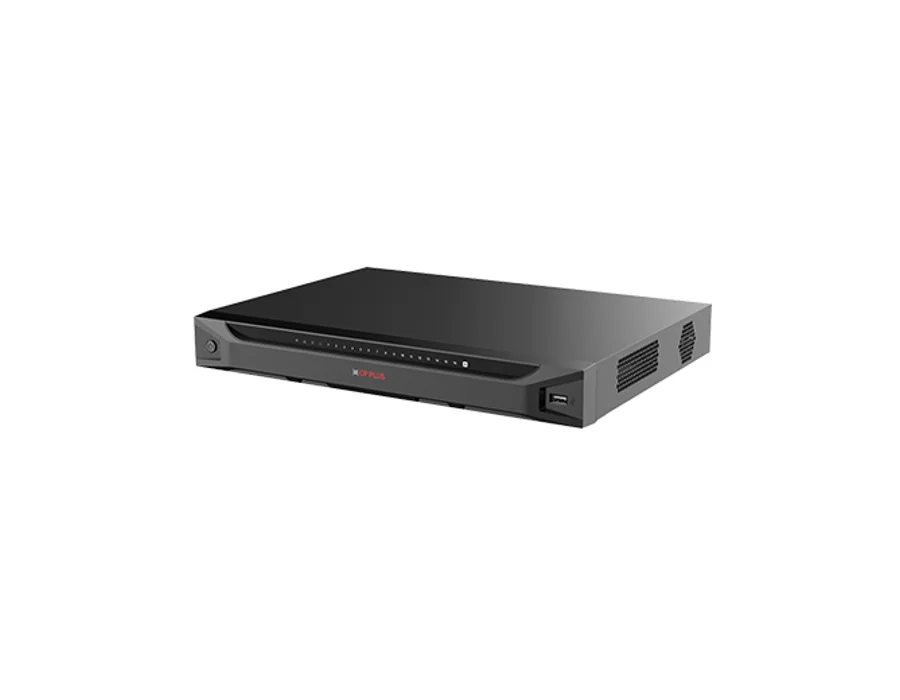

CP Plus CP-UNR-4K5322-FI – 32Ch. 4K AI Network Video Recorder

32Ch. 4K AI Network Video Recorder Features Up to 32 channel IP camera input Max. 384 Mbps Incoming/ Recording/ Outgoing bandwidth Instastream, H.265, Smart H.264+, H.264, MJPEG codec decoding AI by Recorder: 2 Channel face detection or recognition, 4 Channel perimeter protection, 8 Channel IMD+. AI by camera: Face detection and recognition, Perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, and people counting. Support N+M cluster Support 2 SATA HDDs up to 16TB Each, 2 USB Ports (1 USB 3.0) HDMI/ VGA simultaneous video output Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 32 channel Operating System: Embedded LINUX User Interface: Web, Local GUI Video Output: 1 Channel VGA, 1 Channel HDMI video output. Heterogeneous video source output for HDMI and VGA Supports 4K display Video Compression: H.265, Smart H.264+, H.264, MJPEG Encode Strategy: Instastream Decoding Capability: AI disabled: 2 Channel 32MP@20 fps, 2 Channel 24MP@20 fps, 4 Channel 16MP@30 fps, 5 Channel 12MP@30fps, 8 Channel 8MP@30 fps, 12 Channel 5MP@30fps, 16 Channel 4MP@30 fps, 32 Channel 1080p@30fps AI enabled: 1 Channel 32MP@20 fps, 1 Channel 24MP@20 fps, 2 Channel 16MP@30 fps, 4 Channel 12MP@30 fps, 4 Channel 8MP@30 fps, 8 Channel 5MP@30 fps, 12 Channel 4MP@30 fps, 24 Channel 1080p@30fps AI by NVR: Face detection, Face recognition, Perimeter protection, IMD+ AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), Perimeter protection, IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map Resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1, CIF, QCIF Network Bandwidth: AI disabled: 384 Mbps Incoming, 384 Mbps Recording and 384 Mbps Outgoing AI enabled: 200 Mbps Incoming, 200 Mbps Recording and 200 Mbps Outgoing Video Display Split: Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16 Perimeter Performance AI by NVR (Number of Channels): 4 Channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera (Number of Channels): Human and vehicle detection on all channels, supporting up to 16 targets per second Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Face Detection Performance of AI by NVR (Number of Channels): 2 Channels (up to 12 face images/s each channel) Face Detection Performance of AI by Camera (Number of Channels): 16 Channels Face Database Capacity: Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image Face Recognition Performance of AI by NVR (Number of Channels): 1.16 Channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2.2 Channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s Face Recognition Performance of AI by Camera: 16 channels IMD+ by NVR: 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD By Camera: Human and vehicle detection on all channels, supporting up to 32 targets per second Metadata Performance of AI by Camera (Number of Channels): 8 channels Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and umbrella Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle interior, Vehicle registration location Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet ANPR by Camera (Number of Channels): Supports up to 8 targets per second License Plate Database Capacity: 1. Create up to 20,000 plate numbers 2. Blocklist and allow list Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map Abnormality Alarm: Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception General Alarm: Motion detection, Privacy masking, Local alarm Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email Audio Input: 1-channel RCA Audio Output: 1-channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Disk Group: Support Alarm Input: 4 channel Alarm Output: 2 channel Hard Disk: 2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature Multi-channel Playback: Up to 16 channels Record Mode: General, Motion detection, Intelligent, Alarm, POS Browser: Chrome, IE9 or later, Firefox Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) Smart Phone: iPhone, iPad, Android Phone Backup Mode: USB Device/Network Interface Ports: 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ), 1 RS232, 1 RS485 Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, InstaOn, Auto Connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Ethernet: 1 x (10/100/1000 Mbps Ethernet port, RJ-45) Power Supply: 12 VDC, 4Amp Power Consumption: ≤ 10 W (without HDD) Operating Temperature: -10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH) Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 375.0 mm × 284.4 mm x 56.0mm Weight: 1570g (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
