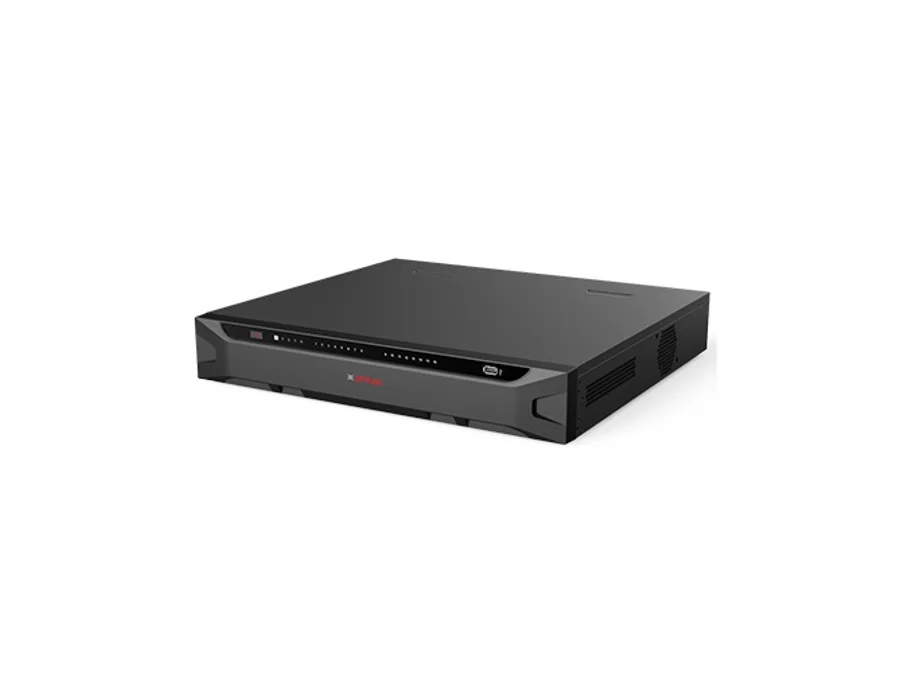

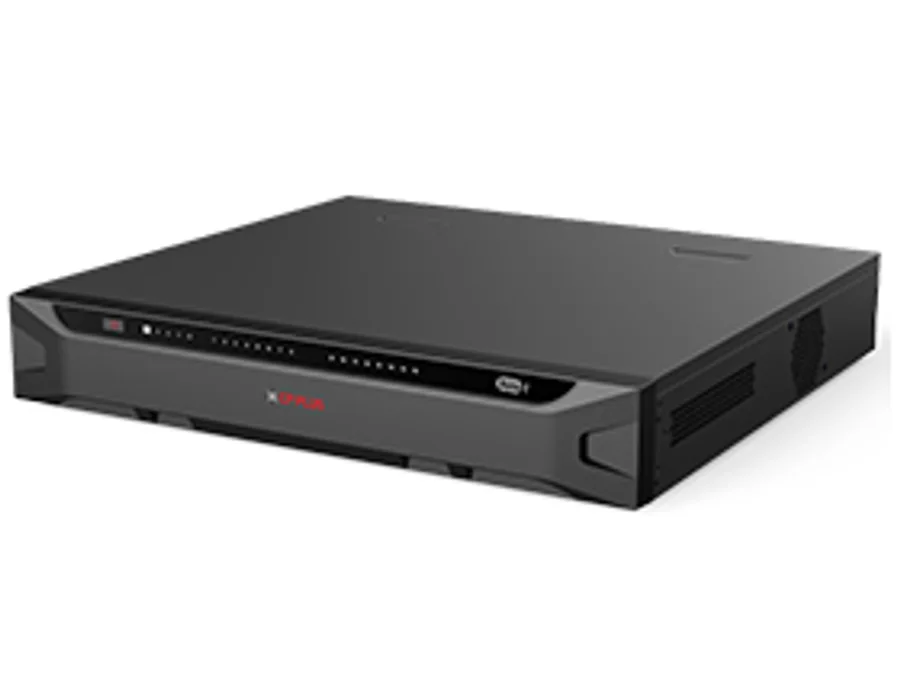

CP Plus CP-UNR-4K5324-FI – 32Ch. 4K AI Network Video Recorder

32Ch. 4K AI Network Video Recorder Features Up to 32 channel IP camera input Max. 384 Mbps Incoming/ Recording/ Outgoing bandwidth Instastream, H.265, H.264+, H.264, MJPEG codec decoding AI by recorder: 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel perimeter protection, 8 Channel IMD+ AI by camera: Face detection and recognition, Perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, People counting Support N+M cluster Support 4 SATA HDDs up to 20TB Each, 3 USB Ports (1 front USB 2.0 port, 2 rear USB 3.0 ports) 2 HDMI/ 2 VGA Heterogeneous, simultaneous video output Support Multi-brand network cameras Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 32 Channel Operating System: Embedded LINUX User Interface: Web, Local GUI Video Output: 2 VGA:1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Decoding Capability: AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps; 1 Channel 24 MP@25 fps; 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps AI by NVR: Face detection, Face recognition, Perimeter protection, IMD+ AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehi cles), Perimeter protection, IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map IntelliCheck AI by Camera + Recorder: Max. 32 Channel, 1 combined event per Channel/s Resolution: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 2 MP, 720p, 960p, D1, CIF, QCIF Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Video Display Split: Main screen: 1/4/8/9/16/25/36, Sub screen: 1/4/8/9/16 Perimeter Performance AI by NVR (Number of Channels): 4 Channels, 10 IVS rules for each Channel Perimeter Performance of AI by Camera (Number of Channels): Human and vehicle detection on all channels, supporting up to 16 targets per second Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Face Detection Performance of AI by Recorder (Number of Channels): 2 Channels (up to 12 face images/s each Channel) Face Detection Performance of AI by Camera (Number of Channels): 16 Channels Face Database Capacity: Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image Face Recognition Performance of AI by NVR (Number of Channels): 1.16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2.2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s Face Recognition Performance of AI by Camera (Number of Channels): 16 Channels IMD+ by NVR: 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change IMD+ by Camera: Human and vehicle detection on all channels, supporting up to 32 targets per second Metadata Performance of AI by Camera (Number of Channels): 8 Channels Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, age, Gender and Umbrella Motor Vehicle Attributes: License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet ANPR by Camera (Number of Channels): Supports up to 8 targets per second License Plate Database Capacity: 1. Create up to 20,000 plate numbers 2. Blocklist and allowlist Abnormality Alarm: Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map General Alarm: Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access control ler, Audio, Buzzer, Log, Preset, Email Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Disk Group: Support Alarm Input: 16 Channel Alarm Output: 6 Channels (1 Channel 12 V 1 A output) Hard Disk: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature Multi-channel Playback: Up to 16 Channels Record Mode: General, Motion detection, Intelligent, Alarm, POS Backup Method: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) Interface Ports: 3 USB (1 front USB 2.0 port, 2 rear USB 3.0 ports), 1 RS232, 1 eSATA Port, 1 RS485 (half-duplex serial communication) Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, InstaOn, Auto Connect, iSCSI, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Network Mode: Multi-address mode, Load balance, Fault tolerance and other network port binding modes Smart Phone: iPhone, iPad, Android Phone Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 100–240 VAC, 50-60 Hz Power Consumption: Total output of NVR is ≤ 13 W (without HDD) Operating Temperature: -10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 440.0 mm × 415.1 mm x 70.0 mm Weight: 4740g (without HDD)
