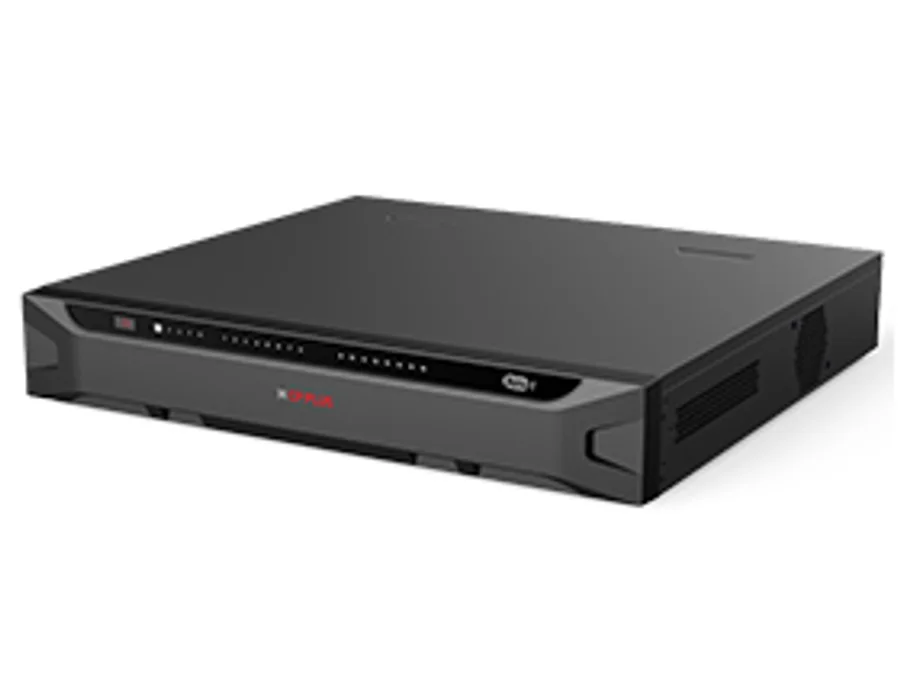

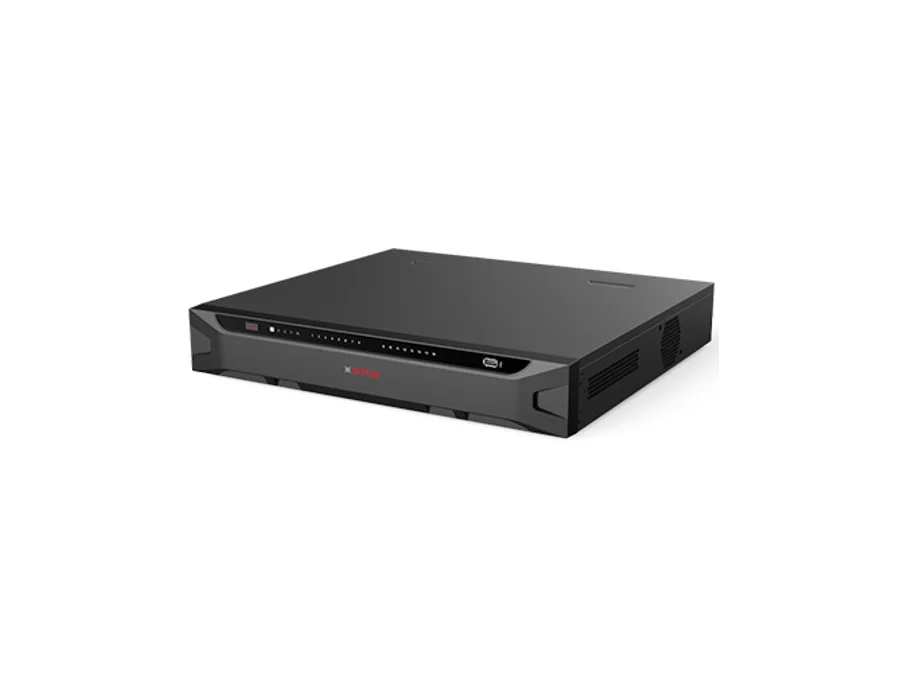

CP Plus CP-UNR-4K5644-FI – 64Ch. 4K AI Network Video Recorder

64Ch. 4K AI Network Video Recorder Features Up to 64 channel IP camera input Max. 384 Mbps incoming/recording/outgoing bandwidth Max. 32 × 1080p@30 fps or 32 × 2MP@30 fps decoding capability Instastream, H.265, H.264, H.264, MJPEG codec decoding AI by Recorder: Supports 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel Perimeter protection, 8 Channel SMD Plus Support 4 SATA HDDs up to 20TB Each, 3 USB Ports (2 USB 3.0 Ports) 2 HDMI/ 2 VGA simultaneous video output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 64 Channel Operating System: Embedded LINUX User Interface: Web, Local GUI AI by Camera: Face detection, Face recognition, Video metadata (human, motor vehicles, and non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map AI by NVR: Face detection, Face recognition, Perimeter protection, SMD Plus Perimeter Performance AI by NVR: 4 Channels, 10 IVS rules for each channel Perimeter Performance of AI by Camera: All Channels (16 targets/s) Video Output: VGA:1920 × 1080, 1280 × 1024, 1280 × 720; HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Face Detection AI by NVR: 2 channels (up to 12 face images/s each channel) Face Detection By Camera: 16 channels Abnormality Alarm: Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Face Database Capacity: Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image SMD Plus by NVR: 8 channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change Face Recognition AI by NVR: 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s Face Recognition AI by Camera: 16 Channels SMD By Camera: All Channels (32 targets/s) Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Network Mode: Multi-address mode, load balance, fault tolerance and other network port binding modes Resolution: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF IntelliCheck AI by Camera + Recorder: Max. 32 Channel, 1 Combined event per Channel/s Multi-channel: Up to 16 channels Video Metadata By Camera: 8 Channels ANPR by Camera (Number of Channels): Supports up to 8 targets per second Encode Strategy: Instastream, H.264+ Video Display Split: Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 Decoding Capability: AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps Non-motor Vehicle: Vehicle model, Vehicle color, Number of persons, Helmet. License Plate Database Capacity: 1. Create up to 20,000 plate numbers. 2. Blocklist and allow list Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle interior, Vehicle registration location Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Video Compression: H.265, H.264, MJPEG Alarm Input: 16 Channels Alarm Output: 6 Channels (1 Channel 12 V 1 A output) Disk Group: Support Disk Interface: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature General Alarm: Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map Recording Mode: General, Motion detection, Intelligent, Alarm, POS Playback: instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) Backup Mode: USB device and network Alarm Linkage: Record, Snapshot, Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email Interface Ports: 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 1 RS232, 1 eSATA Port, 1 RS485 Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Protocols: HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12(Profile T/ Profile S/ Profile G), CGI, SDK Smart Phone: iPhone, iPad, Android Phone Power Supply: 100–240 VAC, 50-60 Hz Power Consumption: ≤ 13 W (without HDD) Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 440.0 mm × 415.1 mm x 70.0 mm Weight: 4.74 kg (without HDD)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
