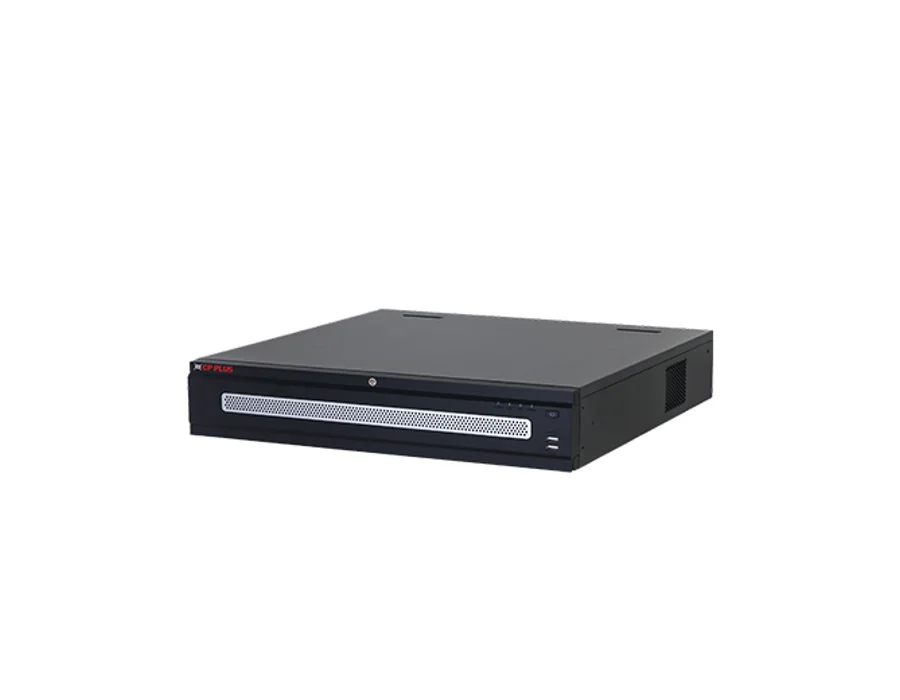

CP Plus CP-UNR-4K564R8-EI – 64Ch. 4K AI Network Video Recorder

64Ch. 4K AI Network Video Recorder Features Up to 64 channel IP camera input Max. Decoding capability: 32 × 1080p@30fps Max. 512/512/512 Mbps Incoming/ Recording/ Outgoing bandwidth AI by Recorder: Supports 8 channel face detection and recognition, up to 20 face databases and 200,000 face images, 8 Channel metadata, 24 Channel perimeter protection, 32 Channel IMD+ (Intelligent motion detection) AI by Camera: Supports face detection and recognition, perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, and people counting. Support redundant power, RAID 0/1/5/6/10, N+M cluster Support 8 SATA HDDs up to 20TB Each, 4 USB Ports 2 HDMI/ 2 VGA simultaneous video output Mobile Software: iCMOB, gCMOB Specifications Processor: Industrial-grade processor Operating System: Embedded Linux IP Camera Input: 64 Channel User Interface: Web, Local GUI AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and Non-motor vehicles), Perimeter protection, IMD, Stereo analysis, Crowd distribution, People counting, ANPR, Heat map, PPE detection Perimeter Performance AI by NVR (Number of Channels): 24 Channels, 10 IVS rules for each channel Face Detection Performance of AI by Camera (Number of Channels): Human and vehicle detection on all channels, supporting up to 32 targets per second Video Output: 2 VGA:1920 × 1080, 1280 × 1024, 1280 × 720; 2 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Face Detection AI by NVR: Sub screen 4K enabled: 4 Channels (up to 12 face images/sec each channel) Sub screen 4K disabled: 8 Channels (up to 12 face images/sec each channel) Face Detection AI by Camera: 32 Channels Face Recognition AI by NVR: Sub screen 4K enabled: 16 Channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec 4 Channel FD (by recorder) + FR (by recorder), Video stream: 16 face images/sec Sub screen 4K disabled: 16 Channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec 8 Channel FD (by recorder) + FR (by recorder), Video stream: 16 face images/sec Face Attributes: 6 attributes Face Database Capacity: Up to 20 face databases with 200,000 images, with a total capacity of 44G Decoding Capability: AI disabled: 2 Channel 32MP@30fps, 2 Channel 24MP@30 fps, 4 Channel 16MP@30 fps, 5 Channel 12MP@30 fps, 8 Channel 8MP@30 fps, 10 Channel 6MP@30 fps, 12 Channel 5MP@30 fps, 16 Channel 4MP@30 fps, 32 Channel 1080p@30 fps, 64 Channel 720p@30 fps AI enabled: 1 Channel 32MP@30 fps, 1 Channel 24MP@30 fps, 2 Channel 16MP@30 fps, 4 Channel 12MP@30 fps, 6 Channel 8MP@30 fps, 8 Channel 6MP@30 fps, 8 Channel 5MP@30 fps, 12 Channel 4MP@30 fps, 24 Channel 1080p@30 fps, 48 Channel 720p@30 fps, 64 Channel D1@30 fps License Plate Database Capacity: 1. Up to 20,000 plate numbers, 2. Blocklist and allowlist Non-motor Vehicle: 4 attributes Disk Interface: 8 SATA ports each disk can contain up to 20TB, this limit varies depending on the environment temperature IMD+ by Camera: Human and vehicle detection on all channels, supporting up to 64 targets per second Network Bandwidth: AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 960p, 720p, D1, CIF, QCIF People Attributes: 9 human body attributes Intelligent Alarm: Face detection, Face recognition, Video metadata (Human, Motor vehicle, and non-motor vehicle), Perimeter protection, License plate comparison RAID: RAID 0/1/5 Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Multi-channel Playback: Up to 16 channels Protocols: HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto connect, ISCSI, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Power Redundancy: Support Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Audio Compression: G.711a, G.711u, PCM, G726 Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Alarm Input: 16 Channels Alarm Output: 8 Channels (1 channel 12 V 1 A output） Backup Mode: USB device and network Interface Ports: 4 USB (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 2 HDMI, 2 VGA, 2 RS485 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication), 1 RS232, 1 eSATA Ethernet Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Smart Phone: iOS, Android Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 100–240 VAC, 50/60 Hz Power Consumption: <13 W (without HDD) Operating Temperature: –10°C to +55°C (14°F to +131°F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: –10°C to +55°C (14°F to +131°F) Dimensions: 444.0 mm × 476.0 mm ×95.0 mm Weight: 8790 g
