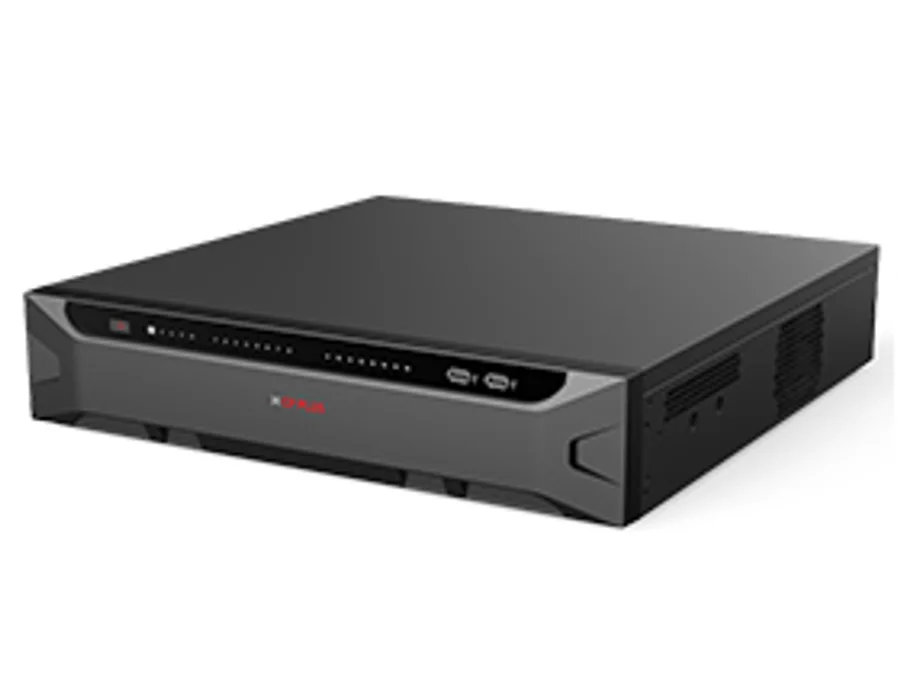

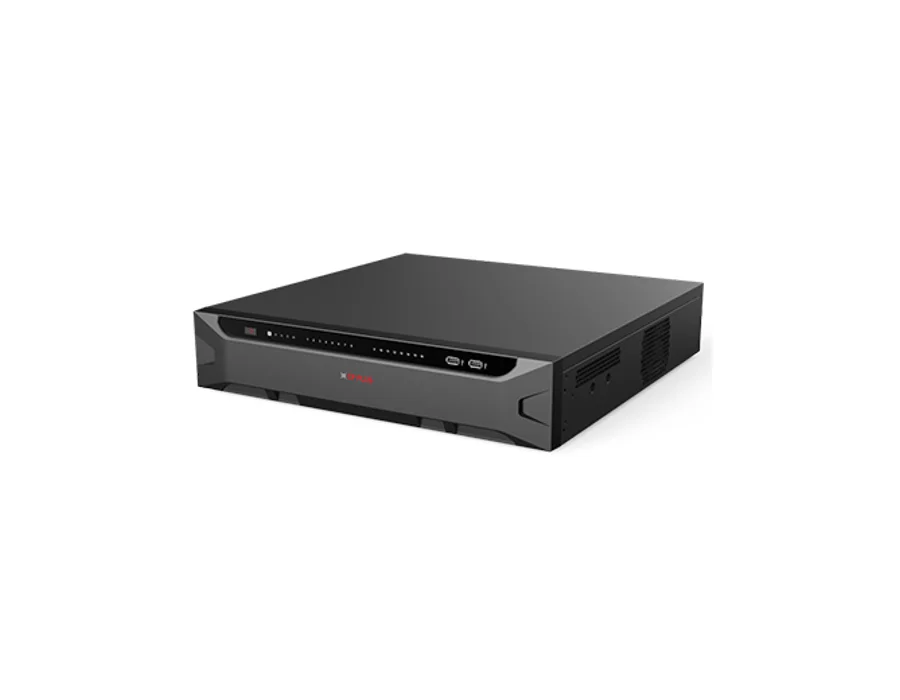

CP Plus CP-UNR-4K564R8-FI – 64Ch. AI Network Video Recorder

64Ch. AI Network Video Recorder Features Up to 64 Channel IP camera input Max. 384 Mbps incoming/recording/outgoing bandwidth Instastream, H.265, H.264+, H.264, MJPEG codec decoding AI by Recorder: 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel perimeter protection, 8 Channel SMD Plus AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, Metadata, ANPR, Stereo analysis, Heat map, People counting Support 8 SATA HDDs up to 20TB Each, 4 USB Ports (2 front USB 2.0 ports, 2 rear USB 3.0 ports) Support RAID 0/1/5/6/10 Support N+M cluster Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 64 Channel Operating System: Embedded LINUX User Interface: Web, Local GUI Video Output: 2 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Video Compression: Instastream, H.265, H.264+, H.264, MJPEG Decoding Capability: AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps AI by NVR: Face detection, Face recognition, Perimeter protection, SMD Plus AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map IntelliCheck AI by Camera + Recorder: Max. 32 Channel, 1 combined event per Channel/s Resolution: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2 MP, 720p, 960p, D1, CIF, QCIF Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing Video Display Split: Main screen: 1/4/8/9/16/25/36/64, Sub screen: 1/4/8/9/16 Perimeter Performance AI by NVR: 4 Channels, 10 IVS rules for each Channel Perimeter Performance of AI by Camera: All channels (16 targets/s) Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard Face Detection Performance of AI by Recorder (Number of Channels): 2 Channels (up to 12 face images/s each Channel) Face Detection Performance of AI by Camera (Number of Channels): 16 channels Face Database Capacity: Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. Face Recognition Performance of AI by NVR (Number of Channels): 1. 16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2. 2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s Face Recognition Performance of AI by Camera (Number of Channels): 16 channels SMD Plus by NVR: 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change SMD Plus by Camera: All Channels (32 targets/s) Metadata Performance of AI by Camera (Number of Channels): 8 Channels Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet ANPR by Camera (Number of Channels): Supports up to 8 targets per second License Plate Database Capacity: 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist Abnormality Alarm: Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal behavior of fan, cyber security exception Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map General Alarm: Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal alarm Alarm Linkage: Record, snapshot (panoramic), local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Disk Group: Support Alarm Input: 16 Channel Alarm Output: 8 Channels (1-channel 12 V 1 A output) Hard Disk: 8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature Multi-channel Playback: Up to 16 Channels Record Mode: General, Motion detection, Intelligent, Alarm, POS Backup Method: USB device and network Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) Smart Phone: iPhone, iPad, Android Phone RAID: RAID 0/1/5/6/10 Interface Ports: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 1 eSATA Port, 1 RS232, 2 RS485 (1 port for halfduplex serial communication, 1 port for full-duplex serial com Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto Registration, iSCSI, ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK Network Mode: Multi-address mode, load balance, fault tolerance and other network port binding modes Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45) Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 100–240 VAC, 50-60 Hz Power Consumption: Total output of NVR is ≤ 13 W (without HDD) Operating Temperature: -10 °C to +55 °C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F) Dimensions: 439.9 mm × 457.9 mm x 89.0 mm Weight: 6.40 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
