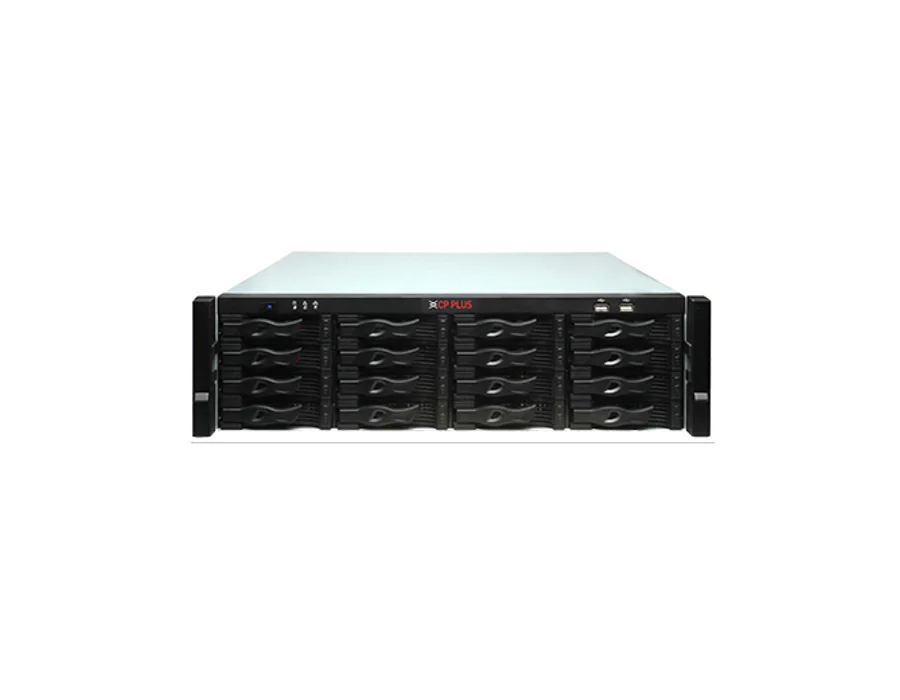

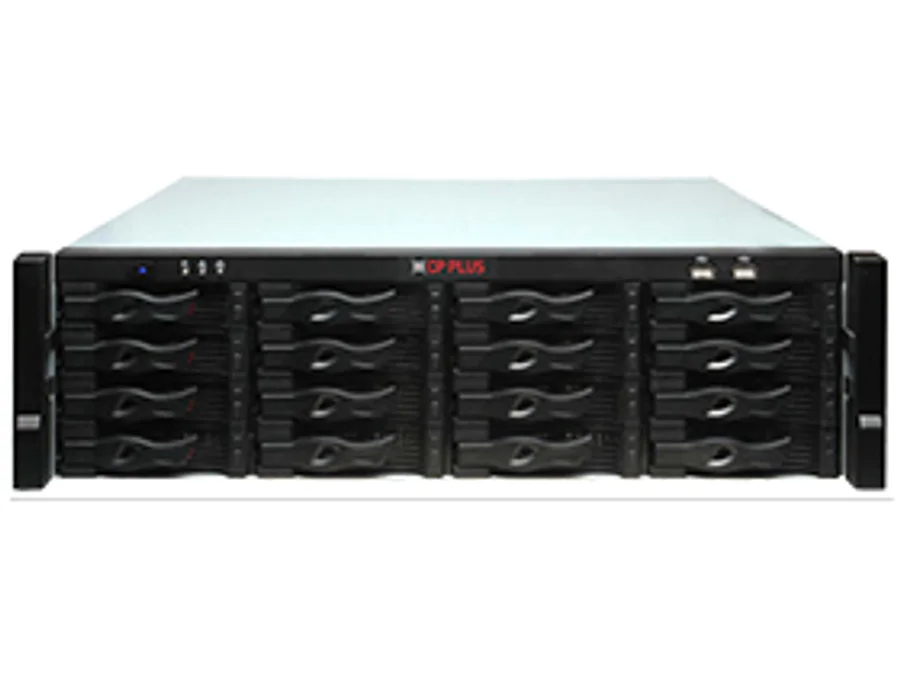

CP Plus CP-UNR-4K6128R16-EI – 128 Ch. 4K Network Video Recorder

128 Ch. 4K Network Video Recorder Features Up to 128 Channels IP camera input Max. 1280/1280/1024 Mbps Incoming/Recording/Outgoing bandwidth Support 16 SATA HDDs up to 20TB Each, 4 USB Ports Supports N+M cluster Support Raid 0/1/5/6/10 Support Intellicheck with up to 64 Channels AI by NVR: 8 Channels face detection and recognition, Up to 40 face databases and 300,000 face images, 8 Channels metadata, 32 Channels perimeter protection, 32 Channels IMD+ AI by Camera: Face detection and recognition, Perimeter protection, IMD+, Metadata, ANPR, Stereo analysis, Heat map, and people counting Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite Specifications Processor: Industrial-grade processor IP Camera Input: 128 Channels Operating System: Embedded Linux User Interface: Web, Local GUI Video Output: 2 VGA, 4 HDMI; 2 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; 4 HDMI 1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI 3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI 4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (Simultaneously outputs video sources for all the HDMI 1-4 and VGA 1-2 ports) Max. resolution of VGA 1 and VGA 2 is 1080p; Max. resolution of HDMI 1 and HDMI 2 is 4K; Max. resolution of HDMI 3 is 8K; Max. resolution of HDMI 4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA 1 and HDMI 1, or VGA 2 and HDMI 2. It also outputs heterogeneous video sources for HDMI 1–4) Max. resolution of VGA 1 and VGA 2 is 1080p; Max. resolution of HDMI 1, HDMI 2 and HDMI 3 is 4K; Max. resolution of HDMI 4 is 1080p Video Compression: Instastream, H.265, H.264 AI by Camera: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), Perimeter protection, IMD, Stereo analysis, Crowd distribution, People counting, ANPR, Heat map, PPE detection AI by NVR: Face detection, Face recognition, Video metadata (Human, Motor vehicles, and non-motor vehicles), Perimeter protection, IMD+ ANPR by Camera (Number of Channels): Supports up to 64 targets per second License Plate Database Capacity: 1. Up to 20,000 plate numbers 2. Blocklist and allowlist Perimeter Performance AI by NVR: Simultaneous mode: 32 Channels, 10 IVS rules for each channel Heterogeneous mode: 24 Channels, 10 IVS rules for each channel Refer to the information on video output for details on the mode Perimeter Performance of AI by Camera: 64 Channels IMD+ by Camera: 128 Channels IMD+ by NVR: 32 Channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change Resolution: 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF Audio Input: 1 Channel RCA Audio Output: 2 Channel RCA Audio Compression: G.711a, G.711u, PCM, G726, AAC Face Attributes: 6 attributes Face Detection Performance of AI by NVR: Simultaneous mode: 8 Channels (up to 12 face images/sec each channel) Heterogeneous mode: 5 Channels (up to 12 face images/sec each channel) Refer to the information on video output for details on the mode Face Detection Performance of AI by Camera: 64 Channels Face Recognition Performance of AI by NVR: Simultaneous mode: 32 Channel FD (by camera) + FR (by recorder), Image stream: 32 face images/sec, 8 Channel FD (by recorder) + FR (by recorder), Video stream: 16 face images/sec Heterogeneous mode: 16 Channel FD (by camera) + FR (by recorder), Image stream: 16 face images/sec, 5 Channel FD (by recorder) + FR (by recorder), Video stream: 10 face images/sec Refer to the information on video output for details on the mode Face Database Capacity: Up to 40 face databases with 300,000 images, with a total capacity of 48G Face Recognition Performance of AI by Camera: 64 Channels Metadata Performance of AI by NVR: 8 Channels, 23 attributes extraction Metadata Performance of AI by Camera: 64 Channels Multi-channel Playback: Up to 16 Channels Decoding Capability: AI disabled: 2 Channel 32MP@30 fps, 2 Channel 24MP@30 fps, 4 Channel 16MP@30 fps, 5 Channel 12MP@30 fps, 8 Channel 8MP@30 fps, 11 Channel 6MP@30 fps, 12 Channel 5MP@30 fps, 16 Channel 4MP@30 fps, 32 Channel 1080p@30 fps, 128 Channel D1@30 fps AI enabled: 1 Channel 32MP@30 fps, 1 Channel 24MP@30 fps, 2 Channel 16MP@30 fps, 2 Channel 12MP@30 fps, 4 Channel 8MP@30 fps, 5 Channel 6MP@30 fps, 6 Channel 5MP@30 fps, 8 Channel 4MP@30 fps, 16 Channel 1080p@30 fps, 80 Channel D1@30 fps Multi-screen Display: Main Screen: 1/4/8/9/16/25/36/64 Sub Screen: 1/4/8/9/16/25/36 Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback Motor Vehicle Attributes: 9 Attributes Non-motor Vehicle Attributes: 4 Attributes Network Bandwidth: AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing People Attributes: 9 human body attributes Intelli check AI by Camera + NVR: Max. 64 Channel, 1 combined event per channel Alarm Input: 32 Channels Alarm Output: 16 Channels General Alarm: Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm Abnormality Alarm: Error (No disk, Disk error, Low space, RAID exception, Low quota space, Abnormal disk health, Network disconnection, IP conflict, MAC conflict, Abnormal fan speed), Video loss, Video tampering, Camera offline, Audio detection Intelligent Alarm: Face detection, Face and body detection, Face recognition, Perimeter protection, IMD, Video metadata, Stereo analysis, Crowd distribution, ANPR, Heat map Alarm Linkage: Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email RAID: 0/1/5/6/10 Hot Swapping: Support Interface Ports: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 2 RS485 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication), 1 RS232, 1 eSATA Disk Group: Support Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto connect, Iscsi, ONVIF (Profile T, Profile S, Profile G), CGI, SDK Record Mode: General, Motion detection, Intelligent, Alarm, POS Hard Disk: 16 SATA ports, each disk can contain up to 20 TB. this limit varies depending on the environment temperature Backup Method: USB device and network Smart Phone: iOS, Android Ethernet: 4 (10/100/2500 Mbps Ethernet port, RJ-45) Network Mode: Multi-address, Load balance, Fault tolerance Browser: Chrome, IE, Safari, Edge, Firefox Power Supply: 100–240 VAC, 50±2% Hz Redundant Power: Support Power Consumption: <25 W (without HDD) Operating Temperature: –10°C to +55°C (14 °F to +131 °F) Operating Humidity: 10%–93% (RH), non-condensing Dimensions: 485.0 mm × 529.0 mm × 133.2 mm (W × D × H) Weight: 13030g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
