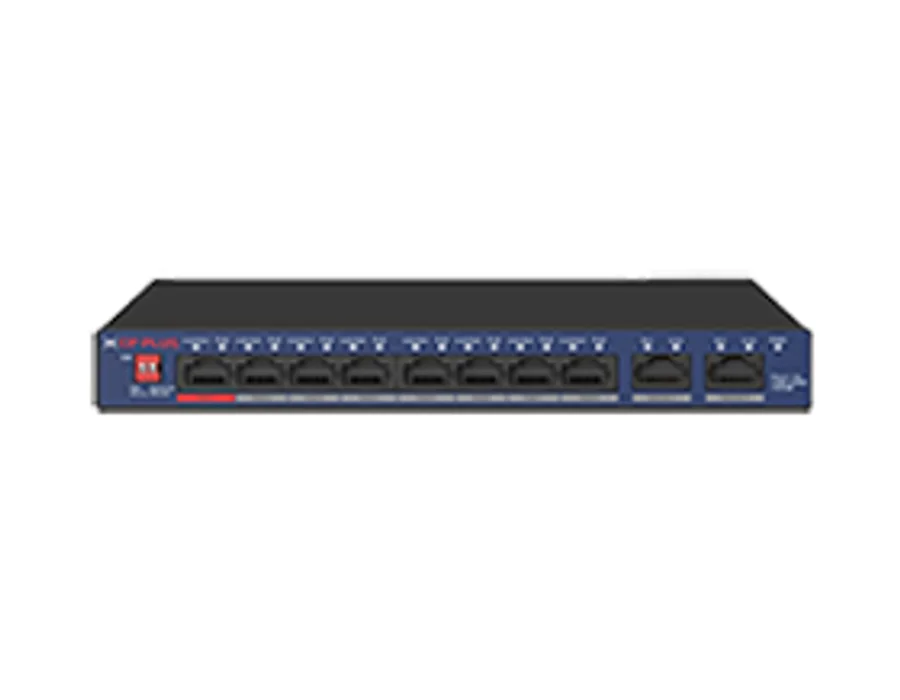

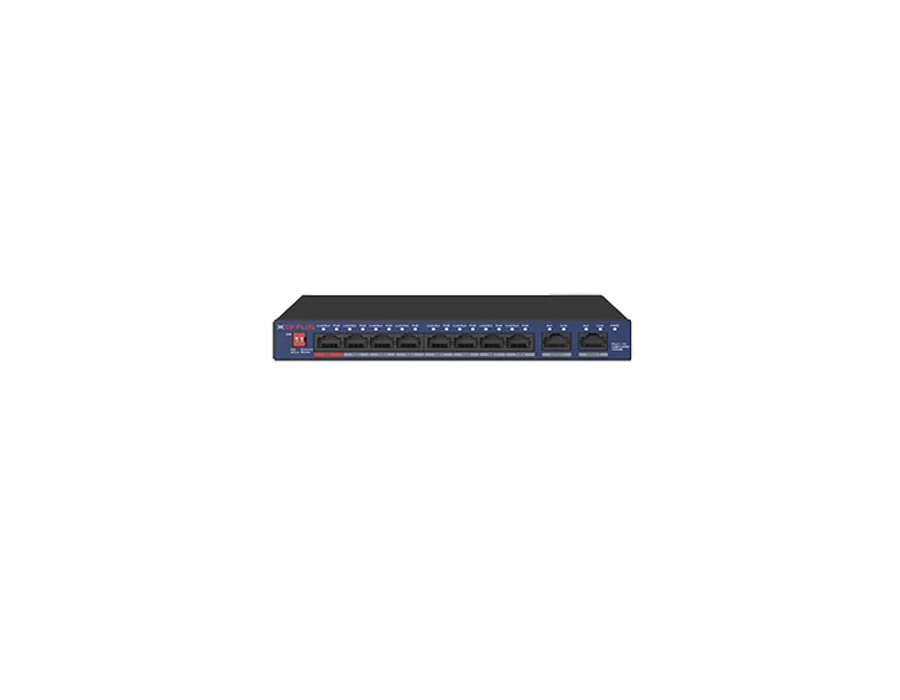

CP Plus CP-UNW-GPU8G2-96 – 8x Gigabit PoE with 2x Gigabit Uplink, Unmanaged

8x Gigabit PoE with 2x Gigabit Uplink, Unmanaged Features 8, 1000Mbps; RJ45 ports; IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt Communication standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x Intelligent PoE, PoE watchdog, Long distance PoE PoE Power 96W Easy and safe installation Specifications Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt Switch Capacity: 20 Gbps Packet Forwarding Rate: 14.88 Mpps MAC Table Size: 4K Statics Protection: Air discharge: 8 kV Contact discharge: 6 kV PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) Long Distance PoE Transmission: 250 m long distance PoE transmission Data Transmission Port: Port 1–8: 8 × RJ-4510/100/1000 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) Packet Buffer Memory: 1.5 Mbit Thunder-proof: Common mode: 4 kV Differential mode: 2 kV Operating Temperature: –10 °C to +55 °C (+14°F to +131°F) Storage Temperature: –20 °C to +70 °C (–4°F to +158°F) Operating Humidity: 5% – 95% (RH) Storage Humidity: 5% – 95%(RH) PoE Power: 96 W Power Consumption: Idling: 3 W, Full load: 96 W Power Supply: 48 V - 57 V DC Dimensions: 190 mm × 100 mm × 30 mm Weight: 0.50 kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
