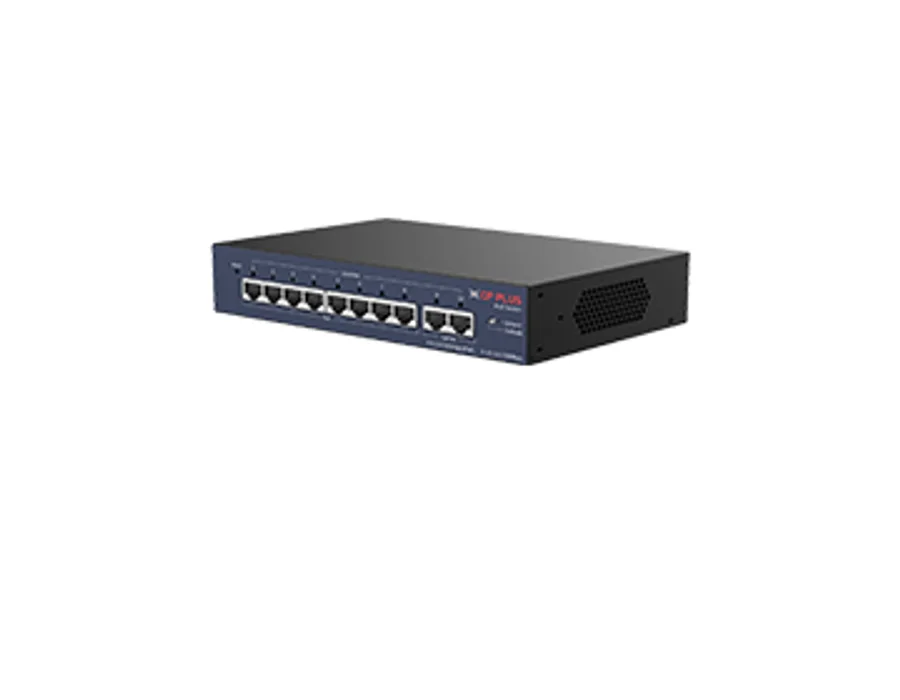

CP Plus CP-UNW-HPU8H2-96 – 8 Ports Unmanaged PoE Switch with 2 Uplink Ports

8 Ports Unmanaged PoE Switch with 2 Uplink Ports Features 8 × RJ-45 10/100 Mbps (PoE) Ports, 2 × RJ-45 10/100 Mbps (Uplink) Ports. Extended transmission mode up to 250m at 10 Mbps. Networking Standards: IEEE802.3, IEEE802.3u, IEEE802.3x. PoE Power Budget: 96W (Max 30W per port). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 10 Ports PoE Ports: 8 × RJ-45 10/100 Mbps (PoE) Ports Uplink Ports: 2 × RJ-45 10/100 Mbps (Uplink) Ports Network Standard: IEEE802.3, IEEE802.3u, IEEE802.3x Switching Capacity: 1.6 Gbps Packet Forwarding Rate: 1.488 Mbps MAC Address List: 2K Packet Buffer: 768 Kbit Jumbo Frame: 2048 Byte DIP switch: Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The ; negotiation speed can be reduced to 10 Mbps ESD Protection: Air discharge: 8KV, Contact discharge: 6KV Lightning Protection: Common mode: 6KV PoE Pin Assignment: 1/2+, 3/6- Long Distance PoE Transmission: Support PoE Power Budget: 96W (Max 30W per port) Power Source: Built-in power supply:200-240 VAC, 50/60 Hz, Max. 1.5A Power Consumption: Idling: 0.6W, Full load: 96W Operating Temperature: –10°C to +45°C Operating Humidity: 10%–90% (RH), non-condensing Storage Temperature: –40°C to +75°C Storage Humidity: 5%–95% (RH), non-condensing Casing: Sheet Metal Dimensions: 200mm × 139.9mm × 44mm Weight: 610 g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
