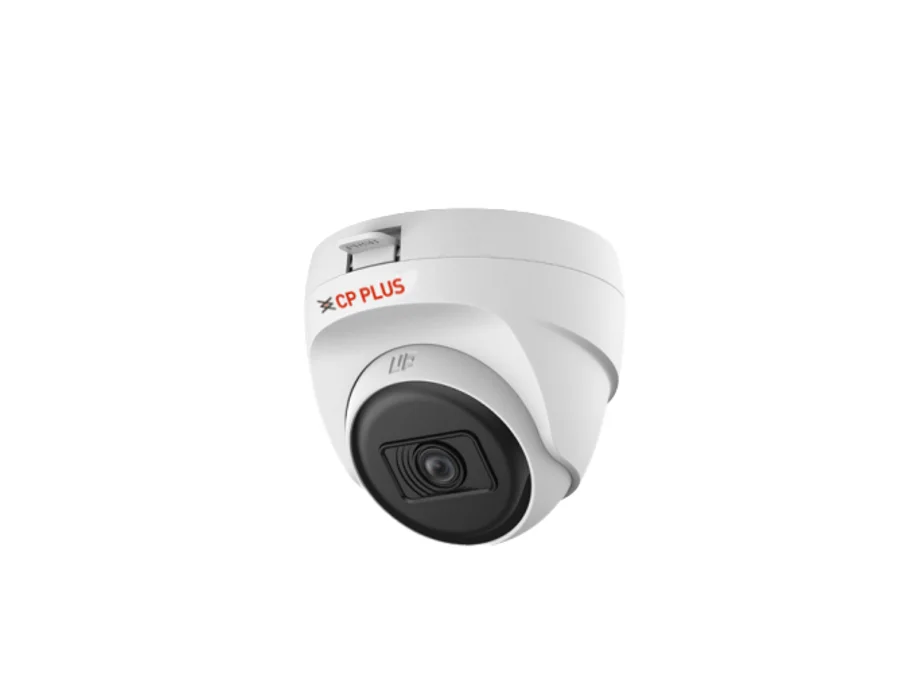

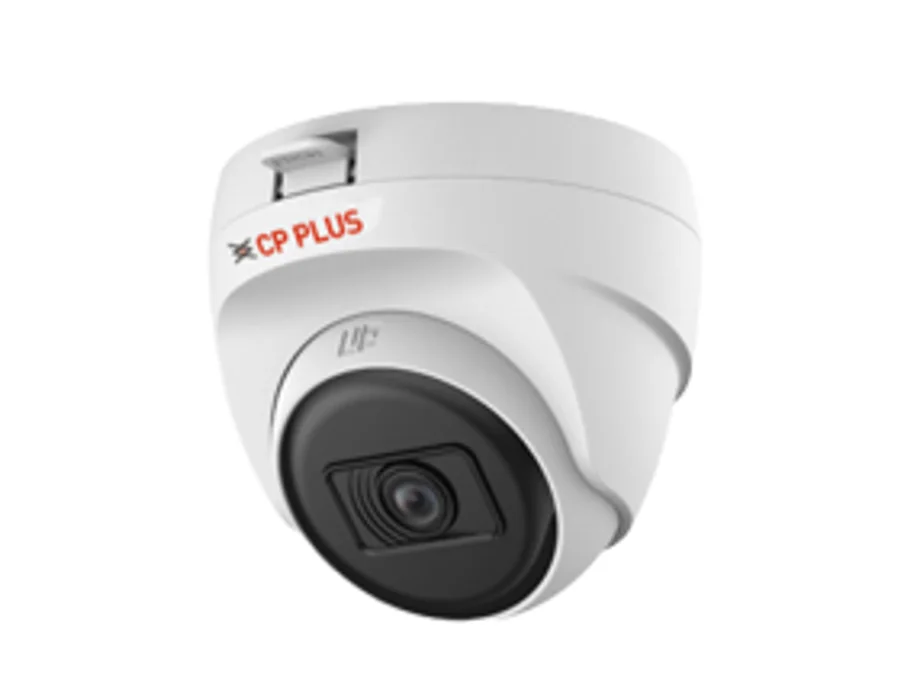

CP Plus CP-URC-DC24PL3 – 2.4MP IR Dome Camera - 30Mtr.

2.4MP IR Dome Camera - 30Mtr. Features 2.4MP PS CMOS Image Sensor DWDR, Day/Night (ICR), 2D DNR, BLC, HLC 3.6mm fixed lens (2.8 mm Optional) IR Range of 30 Mtr., Smart IR 4 Signals over 1 Coaxial Cable CVI/ CVBS/ AHD/ TVI switchable Specifications Image Sensor: 2.4MP PS CMOS Image Sensor Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Max. Resolution: 1920 (H) × 1080 (V) Shutter Speed: PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360 White Balance: Auto Lens Mount: M12 Close Focus Distance: 3.6 mm: 0.8 m, 2.8 mm: 0.5 m DORI Distance: Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m; Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m Lens Type: Fixed-focal Gain Control (AGC): Auto Lens: 3.6mm (2.8mm optional) Angle of View: 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, Back Light Compensation: BLC/ DWD Resolution: 1080p (1920 × 1080), 960H (960 × 576/ 960 × 480) Frame Rate: CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H Noise Reduction: 2D DNR Day/Night: Auto(ICR)/Color/B/W IR Control: Auto, Manual IR: IR Range of 30 Mtr., IR Mode: Smart IR Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Power Source: 12 VDC ± 30% Power Consumption: Max 2.3 W (12 VDC Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: <95% (RH), non-condensing Dimension: 85.0 mm × 77.1 mm Iris Control: Fixed Weight: 0.11kg.

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
