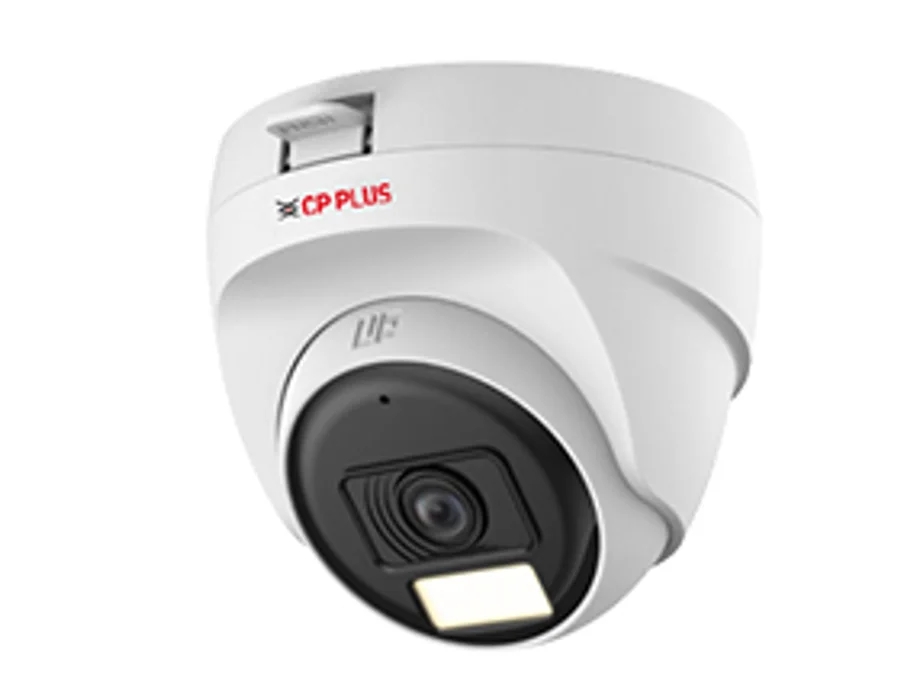

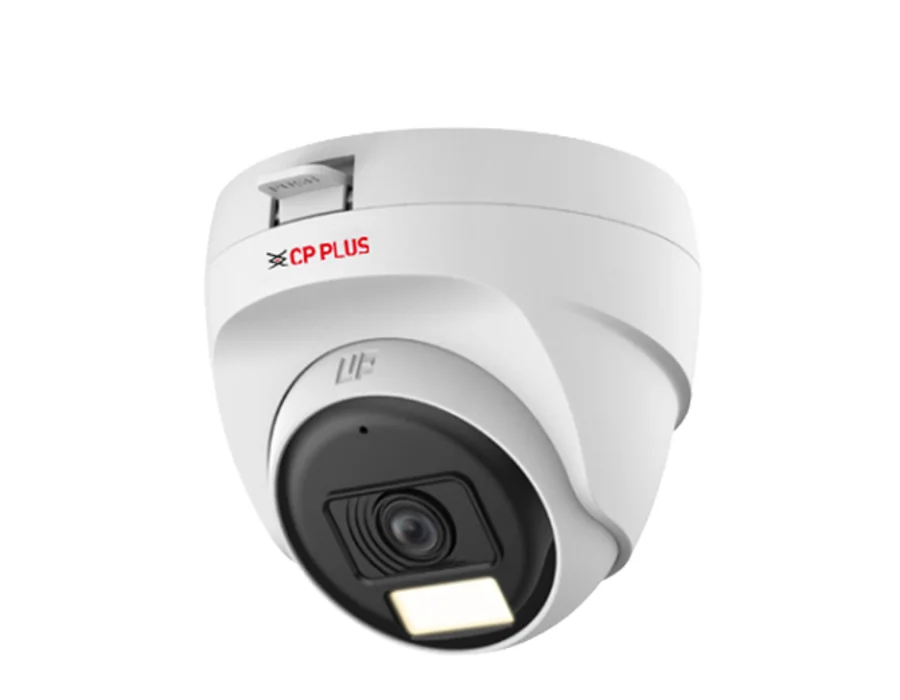

CP Plus CP-URC-DC24PL3C-L-V2 – 2.4MP Dual Light Dome Camera - 30Mtr.

2.4MP Dual Light Dome Camera - 30Mtr. Features 2.4MP PS CMOS Image Sensor Max. 2.4MP (1920 × 1080) @ DWDR, Day/Night (ICR), 2D DNR, BLC, HLC 3.6mm fixed lens (2.8 mm Optional) IR Range of 30 Mtr., Warm Light Range of 20 Mtr., Smart IR 4 Signals over 1 Coaxial Cable Support Built-in Specifications Image Sensor: 2.4MP PS CMOS Image Sensor Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Max. Resolution: 1920 (H) × 1080 (V) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed: PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s White Balance: Auto, Area white Balance Lens Type: Fixed-foca Lens: 3.6mm (2.8mm optional) DORI Distance: Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m Max. Aperture: F2.0 Lens Mount: M12 Close Focus Distance: 3.6 mm: 0.8 m, 2.8 mm: 0.5 m Gain Control (AGC): Auto/Manual S/N Ratio: >55 dB Angle of View: 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117° Back Light Compensation: BLC/HLC/DWD Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Resolution: 1080p (1920 × 1080), 960H (960 × 576/960 × 480) Frame Rate: CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H Noise Reduction: 2D DNR Privacy Mask: Off/On (8 areas, rectangle) Day/Night: Auto(ICR)/Color/B/W IR Number: 2 Warm Light, 2 IR Light IR: IR Range of 30 Mtr., IR Control: Auto, Manual Mirror Function: Support Iris Control: Fixed IR Mode: Smart IR&WL, WL Mode, IR Mode Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: <95% (RH), non-condensing Power Source: 12 VDC ± 30% Power Consumption: Max 2.1 W (12 VDC, LED on) Dimension: 85.0 mm × 77.1 mm Weight: 0.11kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
